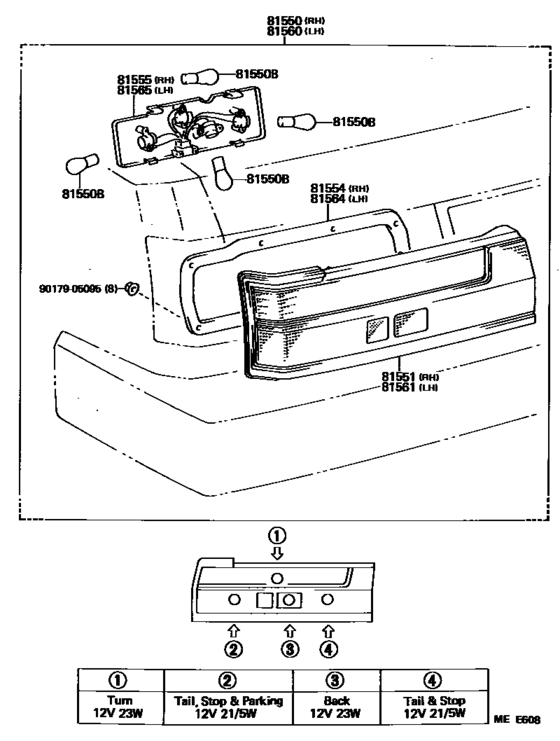

Rear Combination Lamp ([08.1984 - 08.1986] (8408-8608)) Diagram Toyota CRESTA
- Year
- 1984 - 1985
- Sales region
- Japan
- Frame
- MX71
- grade
- SLU
- body
- SED
- ENGINE
- MTEU
- TRANSMISSION
- ATM
- From
- 08.1984
- To
- 10.1985
- Gear Shift Type
- 4FC
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-80234 Lamp Assy, Rear Combination, Rh[08.1984 - 08.1986] GX71,LX70,MX71,SX70 |
81550-80234 |
US $490.67 |
||
| replacement | |||||
|
81550
|
81550
81550-22640 Lamp Assy, Rear Combination, Rh[08.1984 - 08.1986] GX71,LX70,MX71,SX70 |
81550-22640 |
US $476.11 |
||
|
81550B
|
81550B
99132-11230
Bulb, Fog Lamp
[08.1984 - 08.1988] GX71,LX70,MX71,SX70 １２Ｖ ２３Ｗ,12V 23W(TURN,BACK) |
99132-11230 |
— | ||
| replacement | |||||
|
81550B
|
81550B
00234-01073 Bulb[08.1984 - 08.1988] GX71,LX70,MX71,SX70 １２Ｖ ２３Ｗ,12V 23W(TURN,BACK) |
00234-01073 |
US $2.34 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[08.1984 - 08.1988] GX71,LX70,MX71,SX70 １２Ｖ ２１／５Ｗ,12V 21/5W(STOP/TAIL) |
99132-21210 |
from US $3.04 |
||
|
81551
|
81551
81551-22640 Lens, Rear Combination Lamp, Rh[08.1984 - 08.1986] GX71,LX70,MX71,SX70 |
81551-22640 |
US $380.02 |
||
|
81554
|
81554
81554-22640 Gasket, Rear Combination Lamp Body, Rh[08.1984 - 08.1986] GX71,LX70,MX71,SX70 |
81554-22640 |
US $24.61 |
||
|
81555
|
81555
81555-22640 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[08.1984 - 08.1986] GX71,LX70,MX71,SX70 |
81555-22640 |
US $152.88 |
||
|
81560
|
81560
81560-80240 Lamp Assy, Rear Combination, Lh[08.1984 - 08.1986] GX71,LX70,MX71,SX70 |
81560-80240 |
US $490.67 |
||
| replacement | |||||
|
81560
|
81560
81560-22640 Lamp Assy, Rear Combination, Lh[08.1984 - 08.1986] GX71,LX70,MX71,SX70 |
81560-22640 |
US $476.11 |
||
|
81561
|
81561
81561-22640 Lens, Rear Combination Lamp, Lh[08.1984 - 08.1986] GX71,LX70,MX71,SX70 |
81561-22640 |
US $380.02 |
||
|
81564
|
81564
81554-22640 Gasket, Rear Combination Lamp Body, Rh[08.1984 - 08.1986] GX71,LX70,MX71,SX70 |
81554-22640 |
US $24.61 |
||
|
81565
|
81565
81565-22640 Socket & Wire Sub-Assy, Rear Combination Lamp, Lh[08.1984 - 08.1986] GX71,LX70,MX71,SX70 |
81565-22640 |
US $152.88 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $2.08 |
||
