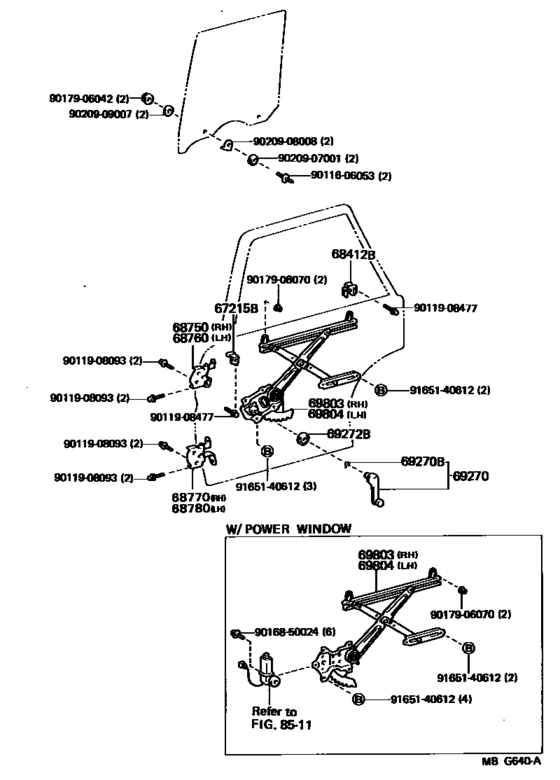

Rear Door Window Regulator & Hinge ([08.1984 - ] (8408- )) Diagram Toyota CRESTA
- Year
- 1984 - 1985
- Sales region
- Japan
- Frame
- MX71
- grade
- SLU
- body
- SED
- ENGINE
- MTEU
- TRANSMISSION
- ATM
- From
- 08.1984
- To
- 10.1985
- Gear Shift Type
- 4FC
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67215B
|
67215B
67215-22020 Stop, Rear Door Window, Upper[08.1984 - 08.1988] GX71,LX70,MX71,SX70 |
67215-22020 |
US $8.59 |
||
|
68412B
|
68412B
67212-22010 Stop, Front Door Window, Upper[08.1984 - 08.1988] GX71,LX70,MX71,SX70 |
67212-22010 |
US $9.61 |
||
|
68750
|
68750
68750-20050
Hinge Assy, Rear Door, Upper Rh
[08.1984 - 08.1988] GX71,LX70,MX71,SX70 |
68750-20050 |
— | ||
|
68760
|
68760
68760-20040
Hinge Assy, Rear Door, Upper Lh
[08.1984 - 08.1988] GX71,LX70,MX71,SX70 |
68760-20040 |
— | ||
|
68770
|
68770
68770-20040 Hinge Assy, Rear Door, Lower Rh[08.1984 - 08.1988] GX71,LX70,MX71,SX70 |
68770-20040 |
US $26.64 |
||
|
68780
|
68780
68780-20040 Hinge Assy, Rear Door, Lower Lh[08.1984 - 08.1988] GX71,LX70,MX71,SX70 |
68780-20040 |
US $26.64 |
||
|
69803
|
69803
69803-22090 Regulator Sub-Assy, Rear Door Window, Rh[08.1984 - 08.1988] GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU W/POWER WINDOW |
69803-22090 |
US $128.13 |
||
|
69804
|
69804
69804-22090 Regulator Sub-Assy, Rear Door Window, Lh[08.1984 - 08.1988] GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU W/POWER WINDOW |
69804-22090 |
US $128.13 |
||
|
9011606053
|
9011606053
90116-06053 New Genuine Part |
90116-06053 |
US $1.75 |
||
|
9011908093
|
9011908093
90119-08093 BOLT |
90119-08093 |
from US $1.44 |
||
|
9011908477
|
9011908477
90119-08477 New Genuine Part |
90119-08477 |
US $1.60 |
||
|
9016850024
|
9016850024
90168-50024
New Genuine Part
|
90168-50024 |
— | ||
| replacement | |||||
|
9016850024
|
9016850024
90168-50013 SCREW |
90168-50013 |
US $2.72 |
||
|
9017906042
|
9017906042
90179-06042 New Genuine Part |
90179-06042 |
US $4.72 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9020907001
|
9020907001
90209-07001 New Genuine Part |
90209-07001 |
US $1.46 |
||
|
9020908008
|
9020908008
90209-08008 New Genuine Part |
90209-08008 |
US $1.60 |
||
|
9020909007
|
9020909007
90209-09007 New Genuine Part |
90209-09007 |
US $1.60 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
