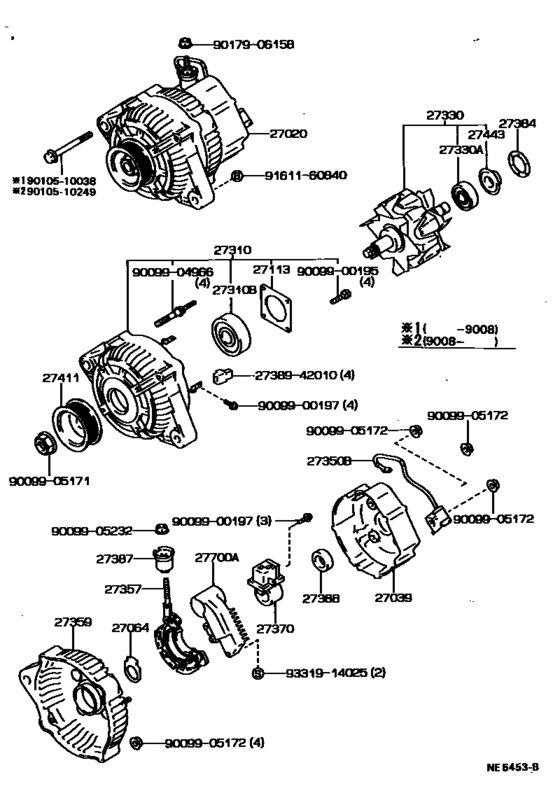

Alternator ([08.1988 - ] (8808- )4SF#..4FC) Diagram Toyota CRESTA
- Year
- 1990 - 1992
- Sales region
- Japan
- Frame
- SX80
- grade
- SCM
- body
- SED
- ENGINE
- 4SFE
- TRANSMISSION
- ATM
- From
- 08.1990
- To
- 10.1992
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-74100 Alternator Assy[08.1988 - 02.1992] 4SF#..SX80..4FC １２Ｖ ７０Ａ |
27060-74100 |
US $1,557.92 |
||
|
27020
|
27020
27060-74101 Alternator Assy[02.1992 - 10.1992] 4SFE..SX80..4FC １２Ｖ ７０Ａ |
27060-74101 |
US $1,557.92 |
||
|
27039
|
27039
27039-42010
Cover, Alternator Rear End
[08.1990 - 10.1992] 1GFE,4SFE..GX81,SX80..4FC;1GGE,2LT..GX81,LX80..SCM,SLT; 1GFE..GX81..5F ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
27039-42010 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-16310
Cover, Alternator Rear End
[08.1990 - 10.1992] 1GFE,4SFE..GX81,SX80..4FC;1GGE,2LT..GX81,LX80..SCM,SLT; 1GFE..GX81..5F ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
27039-16310 |
— | ||
|
27064
|
27064
27064-42010 Seal, Alternator Plate[08.1990 - 10.1992] 1GFE..GX81..5F; 1GGE,2LT..GX81,LX80..SCM,SLT;1GFE,1JZ#,7MGE,4SFE..GX81,JZX81,MX83,SX80..4FC |
27064-42010 |
from US $2.10 |
||
|
27113
|
27113
27312-42010
Plate, Bearing Retainer, Alternator
[08.1990 - 10.1992] 1GGE..GX81;1GFE,1JZ#,7MGE,4SFE..GX81,JZX81,MX83,SX80..4FC; 1GFE..GX81..5F ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
27312-42010 |
— | ||
|
27310
|
27310
27310-42050
Frame Assy, Drive End, Alternator
[08.1988 - 01.1991] 4SF#..SX80..4FC |
27310-42050 |
— | ||
| replacement | |||||
|
27310
|
27310
27310-74480
Frame Assy, Drive End, Alternator
[08.1988 - 01.1991] 4SF#..SX80..4FC |
27310-74480 |
— | ||
|
27310
|
27310
27310-74120
Frame Assy, Drive End, Alternator
[01.1991 - 10.1992] 4SFE..SX80..4FC |
27310-74120 |
— | ||
|
27310B
|
27310B
90099-10160
Bearing(For Alternator Drive End Frame)
[08.1990 - 01.1991] 1GGE..GX81;1GFE,4SFE..GX81,SX80..4FC; 1GFE..GX81..5F ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
90099-10160 |
— | ||
| replacement | |||||
|
27310B
|
27310B
90099-10219 Bearing(For Alternator Drive End Frame)[08.1990 - 01.1991] 1GGE..GX81;1GFE,4SFE..GX81,SX80..4FC; 1GFE..GX81..5F ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
90099-10219 |
from US $16.28 |
||
|
27310B
|
27310B
90099-10192 Bearing(For Alternator Drive End Frame)[01.1991 - 10.1992] 1GGE..GX81;1GFE,1JZ#,7MGE,4SFE..GX81,JZX81,MX83,SX80..4FC; 1GFE..GX81..5F ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
90099-10192 |
from US $15.03 |
||
|
27330
|
27330
27330-42010
Rotor Assy, Alternator
[08.1990 - 12.1990] 1GGE..GX81;1GFE,4SFE..GX81,SX80..4FC; 1GFE..GX81..5F ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
27330-42010 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-16390 Rotor Assy, Alternator[08.1990 - 12.1990] 1GGE..GX81;1GFE,4SFE..GX81,SX80..4FC; 1GFE..GX81..5F ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
27330-16390 |
US $132.79 |
||
|
27330
|
27330
27330-76030
Rotor Assy, Alternator
[12.1990 - 10.1992] 1GGE..GX81;1GFE,4SFE..GX81,SX80..4FC; 1GFE..GX81..5F ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
27330-76030 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-16390 Rotor Assy, Alternator[12.1990 - 10.1992] 1GGE..GX81;1GFE,4SFE..GX81,SX80..4FC; 1GFE..GX81..5F ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
27330-16390 |
US $132.79 |
||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[08.1990 - 10.1992] 1G#,2L#,7MGE,4SFE,3YP..GX81,LX80,MX83,SX80,YX80 |
90099-10140 |
from US $9.43 |
||
|
27350B
|
27350B
90099-52094 Condenser, Alternator[08.1988 - 10.1992] 4SF#..SX80..4FC |
90099-52094 |
US $15.29 |
||
|
27357
|
27357
27357-74050
Holder, Alternator, W/rectifier
[08.1990 - 10.1992] 2LT..LX80..SCM;4SFE..SX80..4FC |
27357-74050 |
— | ||
| replacement | |||||
|
27357
|
27357
27357-74160
Holder, Alternator, W/rectifier
[08.1990 - 10.1992] 2LT..LX80..SCM;4SFE..SX80..4FC |
27357-74160 |
— | ||
|
27359
|
27359
27359-42010
Frame, Alternator Rectifier End
[08.1990 - 10.1992] 1GGE..GX81;1GFE,4SFE..GX81,SX80..4FC; 1GFE..GX81..5F ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
27359-42010 |
— | ||
| replacement | |||||
|
27359
|
27359
27359-74330
Frame, Alternator Rectifier End
[08.1990 - 10.1992] 1GGE..GX81;1GFE,4SFE..GX81,SX80..4FC; 1GFE..GX81..5F ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
27359-74330 |
— | ||
|
27370
|
27370
27370-42010
Holder Assy, Alternator Brush
[08.1990 - 01.1991] 1GGE..GX81;1GFE,7MGE,4SFE..GX81,MX83,SX80..4FC; 1GFE..GX81..5F ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
27370-42010 |
— | ||
| replacement | |||||
|
27370
|
27370
27370-75060 Holder Assy, Alternator Brush[08.1990 - 01.1991] 1GGE..GX81;1GFE,7MGE,4SFE..GX81,MX83,SX80..4FC; 1GFE..GX81..5F ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
27370-75060 |
from US $16.50 |
||
|
27370
|
27370
27370-75060 Holder Assy, Alternator Brush[01.1991 - 10.1992] 1GGE,2LT..GX81,LX80..SCM,SLT;1GFE,1JZ#,7MGE,4SFE..GX81,JZX81,MX83,SX80..4FC; 1GFE..GX81..5F ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
27370-75060 |
from US $16.50 |
||
|
27384
|
27384
27384-42010
Washer
[08.1990 - 01.1991] 1GGE..GX81;1GFE,7MGE,4SFE..GX81,MX83,SX80..4FC; 1GFE..GX81..5F ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
27384-42010 |
— | ||
| replacement | |||||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[08.1990 - 01.1991] 1GGE..GX81;1GFE,7MGE,4SFE..GX81,MX83,SX80..4FC; 1GFE..GX81..5F ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
27384-50030 |
from US $2.80 |
||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[01.1991 - 10.1992] 1GGE,2LT..GX81,LX80..SCM,SLT;1GFE,1JZ#,7MGE,4SFE..GX81,JZX81,MX83,SX80..4FC; 1GFE..GX81..5F ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
27384-50030 |
from US $2.80 |
||
|
27387
|
27387
27387-42020
Insulator, Terminal
[08.1990 - 10.1992] 1GFE,4SFE..GX81,SX80..4FC;1GGE,2LT..GX81,LX80..SCM,SLT; 1GFE..GX81..5F ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
27387-42020 |
— | ||
|
27388
|
27388
27388-42010 Cover, Alternator Brush[08.1990 - 10.1992] 1GFE..GX81..5F; 1GGE,2LT..GX81,LX80..SCM,SLT;1GFE,1JZ#,7MGE,4SFE..GX81,JZX81,MX83,SX80..4FC |
27388-42010 |
US $10.66 |
||
|
27411
|
27411
27411-74070
Pulley, Alternator
[10.1988 - 10.1992] 7MGE,4SF#..MX83,SX80..4FC |
27411-74070 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[08.1988 - 10.1992] 1GFE,1GG#,1JZ#,2L#,7MGE,4SF#,3YP..GX81,JZX81,LX80,MX83,SX80,YX80 |
27443-63020 |
from US $1.12 |
||
|
27700A
|
27700A
27700-11030 Regulator Assy, Generator[08.1990 - 09.1991] 4SFE..SX80..4FC |
27700-11030 |
US $263.54 |
||
| replacement | |||||
|
27700A
|
27700A
27700-72090
Regulator Assy, Generator
[08.1990 - 09.1991] 4SFE..SX80..4FC |
27700-72090 |
— | ||
|
27700A
|
27700A
27700-11050 Regulator Assy, Generator[09.1991 - 10.1992] 4SFE..SX80..4FC |
27700-11050 |
US $263.54 |
||
| replacement | |||||
|
27700A
|
27700A
27700-72090
Regulator Assy, Generator
[09.1991 - 10.1992] 4SFE..SX80..4FC |
27700-72090 |
— | ||
|
2738942010
|
2738942010
27389-42010
Insulator, Terminal
|
27389-42010 |
— | ||
|
9009900195
|
9009900195
90099-00195
New Genuine Part
|
90099-00195 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
US $0.28 |
||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9009905232
|
9009905232
90099-05232
New Genuine Part
|
90099-05232 |
— | ||
|
9010510038
|
9010510038
90105-10038 Bolt(For Alternator) |
90105-10038 |
US $3.84 |
||
|
9010510249
|
9010510249
90105-10249 Bolt(For Alternator) |
90105-10249 |
US $4.96 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9161160840
|
9161160840
91611-60840 BOLT |
91611-60840 |
US $2.08 |
||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.12 |
||
