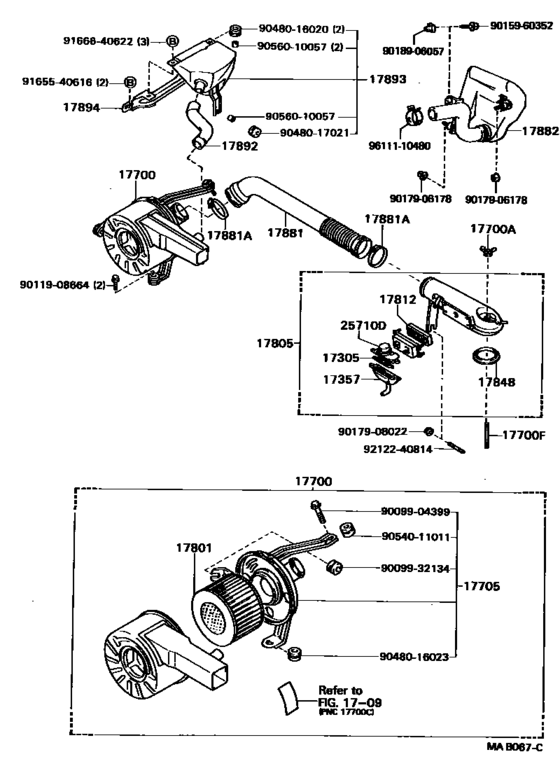

Air Cleaner ([08.1988 - ] (8808- )3YP) Diagram Toyota CRESTA
- Year
- 1988 - 1992
- Sales region
- Japan
- Frame
- YX80
- grade
- KYO
- body
- SED
- ENGINE
- 3YP
- TRANSMISSION
- MTM
- From
- 08.1988
- To
- 10.1992
- Gear Shift Type
- 5F
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17305
|
17305
17305-15010 Valve Sub-Assy, Reed[08.1988 - 10.1992] 3YP..YX80 |
17305-15010 |
US $64.21 |
||
|
17357
|
17357
17357-72020
Case, Reed Valve
[08.1988 - 10.1992] 3YP..YX80 |
17357-72020 |
— | ||
|
17700
|
17700
17700-73220 Cleaner Assy, Air[08.1988 - 10.1992] 3YP..YX80 |
17700-73220 |
US $308.67 |
||
|
17700A
|
17700A
90175-08008 Nut, Wing(For Air Cleaner)[08.1988 - 10.1992] 3YP..YX80 |
90175-08008 |
from US $2.71 |
||
|
17700F
|
17700F
90116-08161 Bolt, Stud(For Air Cleaner Setting)[08.1988 - 10.1992] 3YP..YX80 |
90116-08161 |
US $3.35 |
||
|
17705
|
17705
17705-54220
Cap Sub-Assy, Air Cleaner
[08.1988 - 10.1992] 2L#..LX80; 3YP..YX80 |
17705-54220 |
— | ||
|
17801
|
17801
17801-73020 Element Sub-Assy, Air Cleaner Filter[08.1988 - 10.1992] 3YP..YX80 |
17801-73020 |
US $32.18 |
||
|
17805
|
17805
17805-73110 Connector Sub-Assy, Intake Air[08.1988 - 10.1992] 3YP..YX80 |
17805-73110 |
US $334.88 |
||
|
17812
|
17812
17812-31010
Filter, Air Cleaner, No.2
[08.1988 - 10.1992] 3YP..YX80 |
17812-31010 |
— | ||
|
17848
|
17848
90430-72003
Gasket, Air Cleaner To Carburetor
[08.1988 - 10.1992] 3YP..YX80 |
90430-72003 |
— | ||
|
17881
|
17881
17881-73100 Hose, Air Cleaner, No.1[08.1988 - 10.1992] 3YP..YX80 |
17881-73100 |
US $55.62 |
||
|
17881A
|
17881A
90460-88001 Clamp Or Clip(For Air Hose, No.1)[08.1988 - 10.1992] 3YP..YX80 |
90460-88001 |
US $8.48 |
||
|
17882
|
17882
17890-54010 Hose, Air Cleaner, No.2[08.1988 - 10.1992] 3YP..YX80 NO.2; 2L..LX80 NO.2 |
17890-54010 |
US $243.15 |
||
|
17892
|
17892
17892-73010 Hose, Intake Air Resonator[08.1988 - 10.1992] 3YP..YX80 |
17892-73010 |
US $38.88 |
||
|
17893
|
17893
17805-54110 Resonator, Intake Air[08.1988 - 08.1989] 2L#..LX80; 3YP..YX80 |
17805-54110 |
US $142.69 |
||
| replacement | |||||
|
17893
|
17893
17805-54340 Resonator Sub-Assy, Intake Air[08.1988 - 08.1989] 2L#..LX80; 3YP..YX80 |
17805-54340 |
US $142.69 |
||
|
17893
|
17893
17805-54111 Resonator Sub-Assy, Intake Air[08.1989 - 10.1992] 2L#..LX80; 3YP..YX80 |
17805-54111 |
US $142.69 |
||
| replacement | |||||
|
17893
|
17893
17805-54340 Resonator Sub-Assy, Intake Air[08.1989 - 10.1992] 2L#..LX80; 3YP..YX80 |
17805-54340 |
US $142.69 |
||
|
17894
|
17894
17894-54050 Bracket, Resonator[08.1988 - 10.1992] 2L#..LX80; 3YP..YX80 |
17894-54050 |
US $28.39 |
||
|
25710D
|
25710D
25710-16020 Valve Assy, Air Switching[08.1988 - 10.1992] 3YP..YX80 |
25710-16020 |
US $84.45 |
||
|
9009904399
|
9009904399
90099-04399
New Genuine Part
|
90099-04399 |
— | ||
|
9009932134
|
9009932134
90099-32134
New Genuine Part
|
90099-32134 |
— | ||
|
9011908664
|
9011908664
90119-08664 New Genuine Part |
90119-08664 |
US $2.04 |
||
|
9015960352
|
9015960352
90159-60352 New Genuine Part |
90159-60352 |
US $1.92 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.80 |
||
|
9017908022
|
9017908022
90179-08022 NUT |
90179-08022 |
from US $1.58 |
||
|
9018906057
|
9018906057
90189-06057 GROMMET |
90189-06057 |
from US $1.76 |
||
|
9048016020
|
9048016020
90480-16020 New Genuine Part |
90480-16020 |
US $2.62 |
||
|
9048016023
|
9048016023
90480-16023 New Genuine Part |
90480-16023 |
US $2.48 |
||
|
9048017021
|
9048017021
90480-17021 New Genuine Part |
90480-17021 |
US $2.62 |
||
|
9054011011
|
9054011011
90540-11011
New Genuine Part
|
90540-11011 |
— | ||
|
9056010057
|
9056010057
90560-10057 New Genuine Part |
90560-10057 |
US $1.75 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
|
9166640622
|
9166640622
91666-40622 New Genuine Part |
91666-40622 |
US $1.60 |
||
| replacement | |||||
|
9166640622
|
9166640622
91661-60620 New Genuine Part |
91661-60620 |
US $2.18 |
||
|
9212240814
|
9212240814
92122-40814 Bolt, Stud(For Oil Pan) |
92122-40814 |
US $2.04 |
||
|
9611110480
|
9611110480
96111-10480 Clamp Or Clip, Hose(For Radiator Outlet No.1) |
96111-10480 |
US $1.92 |
||
