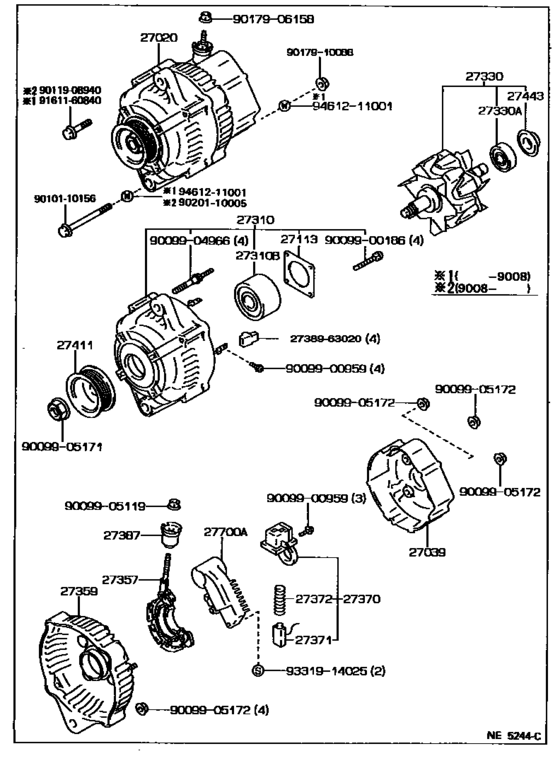

Alternator ([08.1988 - ] 12V 70A (8808- )3YP) Diagram Toyota CRESTA
- Year
- 1988 - 1992
- Sales region
- Japan
- Frame
- YX80
- grade
- KYO
- body
- SED
- ENGINE
- 3YP
- TRANSMISSION
- MTM
- From
- 08.1988
- To
- 10.1992
- Gear Shift Type
- 5F
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-72190 Alternator Assy[08.1988 - 10.1992] 3YP..YX80 １２Ｖ ７０Ａ |
27060-72190 |
US $1,557.92 |
||
|
27039
|
27039
27039-72010
Cover, Alternator Rear End
[08.1988 - 08.1990] 2LT..LX80..KYO;1GFE,1GGE,1GGTE,2L#,4SFI,3YP..GX81,LX80,SX80,YX80..3FC,5F |
27039-72010 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-15171
Cover, Alternator Rear End
[08.1988 - 08.1990] 2LT..LX80..KYO;1GFE,1GGE,1GGTE,2L#,4SFI,3YP..GX81,LX80,SX80,YX80..3FC,5F |
27039-15171 |
— | ||
|
27113
|
27113
27312-70200
Plate, Bearing Retainer, Alternator
[08.1988 - 08.1990] 1GFE,1GGE,1GGTE,4SFI,3YP..GX81,SX80,YX80..3FC,5F |
27312-70200 |
— | ||
|
27310
|
27310
27310-43180
Frame Assy, Drive End, Alternator
[08.1988 - 10.1992] 3YP..YX80 |
27310-43180 |
— | ||
|
27310B
|
27310B
90099-10177
Bearing(For Alternator Drive End Frame)
[08.1988 - 10.1992] 3YP..YX80 |
90099-10177 |
— | ||
|
27330
|
27330
27330-43132
Rotor Assy, Alternator
[08.1988 - 10.1992] 3YP..YX80 |
27330-43132 |
— | ||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[08.1988 - 08.1990] 1GFE,1GG#,2L#,4SFI,3YP..GX81,LX80,SX80,YX80 |
90099-10140 |
from US $9.43 |
||
|
27357
|
27357
27357-63020 Holder, Alternator, W/rectifier[08.1988 - 08.1990] 2LT..LX80..KYO;1GFE,1GGE,1GGTE,2L#,4SFI,3YP..GX81,LX80,SX80,YX80..3FC,5F |
27357-63020 |
US $152.01 |
||
|
27359
|
27359
27359-72130
Frame, Alternator Rectifier End
[08.1988 - 10.1992] 3YP..YX80 |
27359-72130 |
— | ||
| replacements | |||||
|
27359
|
27359
27359-72131
Frame, Alternator Rectifier End
[08.1988 - 10.1992] 3YP..YX80 |
27359-72131 |
— | ||
|
27359
|
27359
27384-16380
Washer
[08.1988 - 10.1992] 3YP..YX80 |
27384-16380 |
— | ||
|
27370
|
27370
27370-72161
Holder Assy, Alternator Brush
[08.1988 - 10.1992] 3YP..YX80 |
27370-72161 |
— | ||
| replacement | |||||
|
27370
|
27370
27370-35060 Holder Assy, Alternator Brush[08.1988 - 10.1992] 3YP..YX80 |
27370-35060 |
from US $19.34 |
||
|
27371
|
27371
27371-72161
Brush, Alternator
[08.1988 - 10.1992] 3YP..YX80 |
27371-72161 |
— | ||
| replacement | |||||
|
27371
|
27371
27371-70300 Brush, Alternator[08.1988 - 10.1992] 3YP..YX80 |
27371-70300 |
from US $2.97 |
||
|
27372
|
27372
27372-63020
Spring, Alternator Brush
[08.1990 - 10.1992] 2LT..LX80..KYO;1GFE,2L,4SFE,3YP..GX81,LX80,SX80,YX80..3FC,5F |
27372-63020 |
— | ||
| replacement | |||||
|
27372
|
27372
27372-87501
Spring, Alternator Brush
[08.1990 - 10.1992] 2LT..LX80..KYO;1GFE,2L,4SFE,3YP..GX81,LX80,SX80,YX80..3FC,5F |
27372-87501 |
— | ||
|
27372
|
27372
27372-72100
Spring, Alternator Brush
[08.1988 - 08.1990] 2LT..LX80..KYO;1GFE,1GGE,1GGTE,2L#,4SFI,3YP..GX81,LX80,SX80,YX80..3FC,5F |
27372-72100 |
— | ||
| replacement | |||||
|
27372
|
27372
27372-87501
Spring, Alternator Brush
[08.1988 - 08.1990] 2LT..LX80..KYO;1GFE,1GGE,1GGTE,2L#,4SFI,3YP..GX81,LX80,SX80,YX80..3FC,5F |
27372-87501 |
— | ||
|
27387
|
27387
27387-70170
Insulator, Terminal
[08.1988 - 08.1990] 2LT..LX80..KYO;1GFE,1GGE,1GGTE,2L#,4SFI,3YP..GX81,LX80,SX80,YX80..3FC,5F |
27387-70170 |
— | ||
|
27411
|
27411
27411-16180
Pulley, Alternator
[08.1988 - 10.1992] 4SF#,3YP..SX80,YX80..3FC,5F |
27411-16180 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[08.1988 - 10.1992] 1GFE,1GG#,1JZ#,2L#,7MGE,4SF#,3YP..GX81,JZX81,LX80,MX83,SX80,YX80 |
27443-63020 |
from US $1.12 |
||
|
27700A
|
27700A
27700-72080 Regulator Assy, Generator[08.1988 - 10.1992] 3YP..YX80 |
27700-72080 |
US $264.99 |
||
|
2738963020
|
2738963020
27389-63020
Insulator, Terminal
|
27389-63020 |
— | ||
|
9009900186
|
9009900186
90099-00186
New Genuine Part
|
90099-00186 |
— | ||
|
9009900959
|
9009900959
90099-00959
New Genuine Part
|
90099-00959 |
— | ||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9010110156
|
9010110156
90101-10156 Bolt(For Alternator) |
90101-10156 |
US $6.24 |
||
|
9011908940
|
9011908940
90119-08940 New Genuine Part |
90119-08940 |
US $1.89 |
||
| replacement | |||||
|
9011908940
|
9011908940
91611-60840 BOLT |
91611-60840 |
US $2.08 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $1.07 |
||
|
9020110005
|
9020110005
90201-10005 Washer, Plate(For Cylinder Head Set) |
90201-10005 |
from US $2.56 |
||
|
9161160840
|
9161160840
91611-60840 BOLT |
91611-60840 |
US $2.08 |
||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.12 |
||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $0.96 |
||
