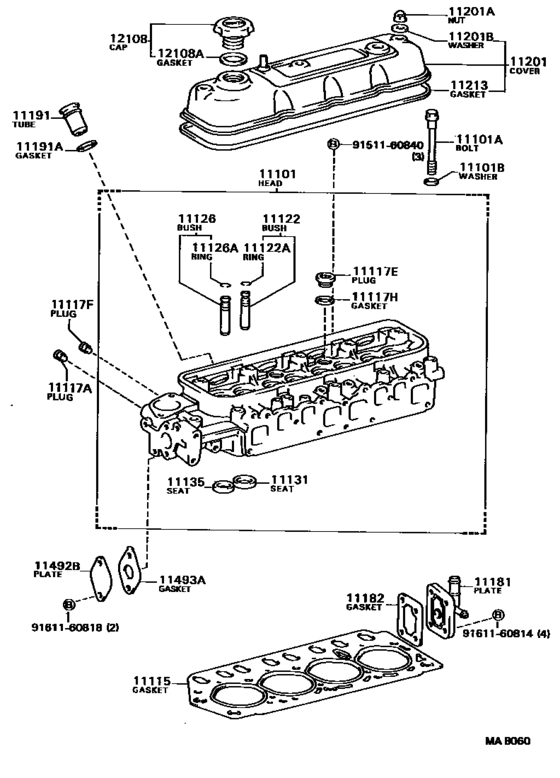

Cylinder Head ([08.1988 - ] (8808- )3YP) Diagram Toyota CRESTA
- Year
- 1988 - 1992
- Sales region
- Japan
- Frame
- YX80
- grade
- KYO
- body
- SED
- ENGINE
- 3YP
- TRANSMISSION
- MTM
- From
- 08.1988
- To
- 10.1992
- Gear Shift Type
- 5F
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-72011 Head Sub-Assy, Cylinder[08.1988 - 10.1992] 3YP..YX80 |
11101-72011 |
US $1,119.66 |
||
| replacements | |||||
|
11101
|
11101
11101-72013 Head Sub-Assy, Cylinder[08.1988 - 10.1992] 3YP..YX80 |
11101-72013 |
from US $800.88 |
||
|
11101
|
11101
13711-73010 Valve, Intake[08.1988 - 10.1992] 3YP..YX80 |
13711-73010 |
from US $20.26 |
||
|
11101A
|
11101A
90105-12056 Bolt(For Cylinder Head Set)[08.1988 - 10.1992] 3YP..YX80 |
90105-12056 |
from US $5.05 |
||
|
11101B
|
11101B
90201-13021 Washer, Plate(For Cylinder Head Set)[08.1988 - 10.1992] 3YP..YX80 |
90201-13021 |
US $3.52 |
||
|
11115
|
11115
11115-73040
Gasket, Cylinder Head
[08.1988 - 10.1992] 3YP..YX80 |
11115-73040 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-73041 Gasket, Cylinder Head[08.1988 - 10.1992] 3YP..YX80 |
11115-73041 |
from US $57.68 |
||
|
11117A
|
11117A
90344-53011 Plug, W/head Taper Screw, No.1[08.1988 - 10.1992] 3YP..YX80 |
90344-53011 |
from US $3.84 |
||
|
11117E
|
11117E
90341-20002 Plug, W/head Taper Screw, No.1[08.1988 - 10.1992] 3YP..YX80 |
90341-20002 |
from US $2.88 |
||
|
11117F
|
11117F
90340-16002
Plug, W/head Straight Screw, No.2
[08.1988 - 10.1992] 3YP..YX80 |
90340-16002 |
— | ||
|
11117H
|
11117H
90430-20004 Gasket(For Cylinder Head Screw Plug)[08.1988 - 10.1992] 3YP..YX80 |
90430-20004 |
from US $0.99 |
||
|
11122
|
11122
11122-71020 Bush, Intake Valve Guide[08.1988 - 10.1992] 3YP..YX80 ＳＴＤ |
11122-71020 |
US $13.76 |
||
|
11122
|
11122
11123-71020 Bush, Intake Valve Guide[08.1988 - 10.1992] 3YP..YX80 Ｏ／Ｓ ０．０５ |
11123-71020 |
US $11.50 |
||
|
11122A
|
11122A
90520-12049 Ring, Shaft Snap (For Valve Guide Bush)[08.1988 - 10.1992] 3YP..YX80 |
90520-12049 |
from US $2.72 |
||
|
11126
|
11126
11126-71020 Bush, Exhaust Valve Guide[08.1988 - 10.1992] 3YP..YX80 ＳＴＤ |
11126-71020 |
US $13.76 |
||
|
11126
|
11126
11127-71020 Bush, Exhaust Valve Guide[08.1988 - 10.1992] 3YP..YX80 Ｏ／Ｓ ０．０５ |
11127-71020 |
US $11.50 |
||
|
11126A
|
11126A
90520-12049 Ring, Shaft Snap (For Valve Guide Bush)[08.1988 - 10.1992] 3YP..YX80 |
90520-12049 |
from US $2.72 |
||
|
11131
|
11131
11131-72010 Seat, Intake Valve[08.1988 - 10.1992] 3YP..YX80 ＳＴＤ |
11131-72010 |
US $36.55 |
||
|
11135
|
11135
11135-72010 Seat, Exhaust Valve[08.1988 - 10.1992] 3YP..YX80 ＳＴＤ |
11135-72010 |
US $24.02 |
||
|
11181
|
11181
11181-73070 Plate, Cylinder Head, Rear[08.1988 - 10.1992] 3YP..YX80 |
11181-73070 |
US $26.70 |
||
|
11182
|
11182
11182-71010
Gasket, Cylinder Head Rear Plate
[08.1988 - 12.1989] 3YP..YX80 |
11182-71010 |
— | ||
| replacement | |||||
|
11182
|
11182
11182-71011 Gasket, Cylinder Head Rear Plate[08.1988 - 12.1989] 3YP..YX80 |
11182-71011 |
US $8 |
||
|
11182
|
11182
11182-71011 Gasket, Cylinder Head Rear Plate[12.1989 - 10.1992] 3YP..YX80 |
11182-71011 |
US $8 |
||
|
11191
|
11191
11191-22010 Tube, Spark Plug[08.1988 - 10.1992] 3YP..YX80 |
11191-22010 |
from US $7.68 |
||
|
11191A
|
11191A
90430-31141
Gasket(For Spark Plug Tube)
[08.1988 - 10.1992] 3YP..YX80 |
90430-31141 |
— | ||
| replacement | |||||
|
11191A
|
11191A
90430-31003 Gasket(For Spark Plug Tube)[08.1988 - 10.1992] 3YP..YX80 |
90430-31003 |
from US $1.48 |
||
|
11201
|
11201
11201-71011 Cover Sub-Assy, Cylinder Head[08.1992 - 10.1992] 3YP..YX80 |
11201-71011 |
US $77.17 |
||
| replacement | |||||
|
11201
|
11201
11201-71012 Cover Sub-Assy, Cylinder Head[08.1992 - 10.1992] 3YP..YX80 |
11201-71012 |
US $85.84 |
||
|
11201
|
11201
11201-79035 Cover Sub-Assy, Cylinder Head[08.1988 - 08.1992] 3YP..YX80 |
11201-79035 |
US $152.88 |
||
| replacements | |||||
|
11201
|
11201
11201-71012 Cover Sub-Assy, Cylinder Head[08.1988 - 08.1992] 3YP..YX80 |
11201-71012 |
US $85.84 |
||
|
11201
|
11201
90210-09019 Washer, Seal(For Cylinder Head Cover)[08.1988 - 08.1992] 3YP..YX80 |
90210-09019 |
from US $1.29 |
||
|
11201
|
11201
11213-71020 Gasket, Cylinder Head Cover[08.1988 - 08.1992] 3YP..YX80 |
11213-71020 |
from US $14.56 |
||
|
11201A
|
11201A
90176-08007 Nut, Cap(For Cylinder Head Cover)[08.1988 - 10.1992] 3YP..YX80 |
90176-08007 |
from US $1.56 |
||
|
11201B
|
11201B
90210-09001
Washer, Seal(For Cylinder Head Cover)
[08.1988 - 10.1992] 3YP..YX80 |
90210-09001 |
— | ||
| replacement | |||||
|
11201B
|
11201B
90210-09019 Washer, Seal(For Cylinder Head Cover)[08.1988 - 10.1992] 3YP..YX80 |
90210-09019 |
from US $1.29 |
||
|
11213
|
11213
11213-71020 Gasket, Cylinder Head Cover[08.1988 - 10.1992] 3YP..YX80 |
11213-71020 |
from US $14.56 |
||
|
11492B
|
11492B
11492-71010 Plate, Water Seal[08.1988 - 10.1992] 3YP..YX80 |
11492-71010 |
US $12.23 |
||
|
11493A
|
11493A
11493-71010
Gasket, Water Seal Plate
[08.1988 - 12.1989] 3YP..YX80 |
11493-71010 |
— | ||
| replacement | |||||
|
11493A
|
11493A
11493-71011 Gasket, Water Seal Plate[08.1988 - 12.1989] 3YP..YX80 |
11493-71011 |
US $3.32 |
||
|
11493A
|
11493A
11493-71011 Gasket, Water Seal Plate[12.1989 - 10.1992] 3YP..YX80 |
11493-71011 |
US $3.32 |
||
|
12108
|
12108
12180-61010
Cap Sub-Assy, Oil Filler
[08.1988 - 03.1990] 3YP..YX80 |
12180-61010 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-70020 Cap Sub-Assy, Oil Filler[08.1988 - 03.1990] 3YP..YX80 |
12180-70020 |
from US $15.19 |
||
|
12108
|
12108
12180-73010 Cap Sub-Assy, Oil Filler[11.1990 - 03.1991] 3YP..YX80 |
12180-73010 |
US $14.27 |
||
| replacement | |||||
|
12108
|
12108
12180-73011 Cap Sub-Assy, Oil Filler[11.1990 - 03.1991] 3YP..YX80 |
12180-73011 |
US $10.40 |
||
|
12108
|
12108
12180-73011 Cap Sub-Assy, Oil Filler[03.1991 - 10.1992] 3YP..YX80 |
12180-73011 |
US $10.40 |
||
|
12108
|
12108
12180-75010 Cap Sub-Assy, Oil Filler[03.1990 - 11.1990] 3YP..YX80 |
12180-75010 |
US $14.27 |
||
| replacement | |||||
|
12108
|
12108
12180-73011 Cap Sub-Assy, Oil Filler[03.1990 - 11.1990] 3YP..YX80 |
12180-73011 |
US $10.40 |
||
|
12108A
|
12108A
12195-70010 Gasket(For Oil Filler Cap)[03.1990 - 11.1990] 1GGE..GX81; 2L#..LX80; 3YP..YX80 |
12195-70010 |
from US $2.83 |
||
|
12108A
|
12108A
12195-71020 Gasket(For Oil Filler Cap)[08.1988 - 03.1990] 3YP..YX80 |
12195-71020 |
US $13.98 |
||
|
12108A
|
12108A
12195-73010 Gasket(For Oil Filler Cap)[11.1990 - 10.1992] 3YP..YX80 |
12195-73010 |
US $4.96 |
||
|
9151160840
|
9151160840
91511-60840
Bolt(For Alternator)
|
91511-60840 |
— | ||
| replacement | |||||
|
9151160840
|
9151160840
91511-J0840 Bolt(For Alternator) |
91511-J0840 |
from US $2.88 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
|
9161160818
|
9161160818
91611-60818
Bolt(For Oil Receiver Pipe)
|
91611-60818 |
— | ||
| replacement | |||||
|
9161160818
|
9161160818
90119-08830 Bolt(For Oil Receiver Pipe) |
90119-08830 |
US $1.60 |
||
