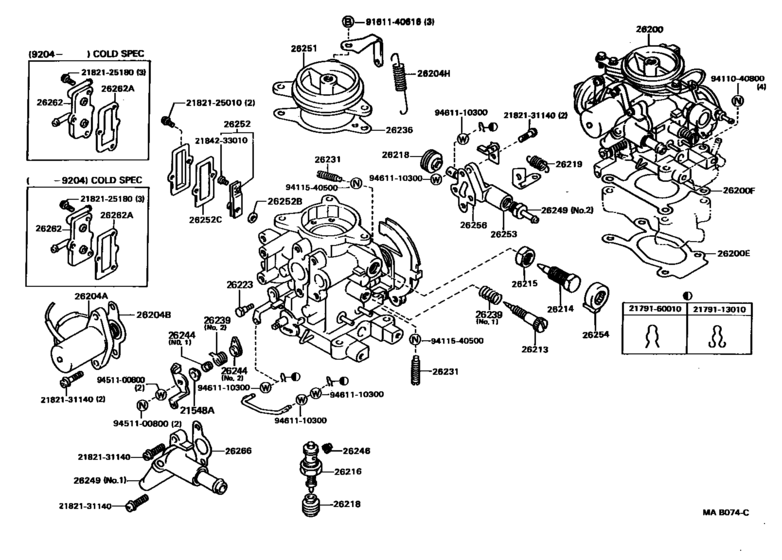

Lpg Carburetor ([08.1988 - ] (8808- )3YP) Diagram Toyota CRESTA
- Year
- 1988 - 1992
- Sales region
- Japan
- Frame
- YX80
- grade
- KYO
- body
- SED
- ENGINE
- 3YP
- TRANSMISSION
- MTM
- From
- 08.1988
- To
- 10.1992
- Gear Shift Type
- 5F
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21548A
|
21548A
21548-35010 Coller, Throttle Lever[08.1988 - 10.1992] 3YP..YX80 |
21548-35010 |
US $6.12 |
||
|
26200
|
26200
26200-73090 Carburetor Assy, Lpg[08.1988 - 10.1992] 3YP..YX80..5F ｶﾝﾚｲﾁ ｼﾖｳ |
26200-73090 |
US $821.18 |
||
|
26200
|
26200
26200-73110 Carburetor Assy, Lpg[08.1988 - 09.1992] 3YP..YX80..5F |
26200-73110 |
US $821.18 |
||
|
26200
|
26200
26200-73111 Carburetor Assy, Lpg[09.1992 - 10.1992] 3YP..YX80..5F |
26200-73111 |
US $821.18 |
||
| replacement | |||||
|
26200
|
26200
26200-73160 Carburetor Assy, Lpg[09.1992 - 10.1992] 3YP..YX80..5F |
26200-73160 |
US $821.18 |
||
|
26200E
|
26200E
21911-72010 Gasket, Carburetor, No.1[08.1988 - 11.1990] 3YP..YX80 |
21911-72010 |
US $7.72 |
||
| replacement | |||||
|
26200E
|
26200E
21911-72011 Gasket, Carburetor, No.1[08.1988 - 11.1990] 3YP..YX80 |
21911-72011 |
US $8.80 |
||
|
26200E
|
26200E
21911-72011 Gasket, Carburetor, No.1[11.1990 - 10.1992] 3YP..YX80 |
21911-72011 |
US $8.80 |
||
|
26200F
|
26200F
21916-72010 Gasket, Carburetor, No.2[08.1988 - 11.1990] 3YP..YX80 |
21916-72010 |
US $7.72 |
||
| replacement | |||||
|
26200F
|
26200F
21916-72012 Gasket, Carburetor, No.1[08.1988 - 11.1990] 3YP..YX80 |
21916-72012 |
US $8.80 |
||
|
26200F
|
26200F
21916-72011 Gasket, Carburetor, No.2[11.1990 - 10.1992] 3YP..YX80 |
21916-72011 |
US $7.13 |
||
| replacement | |||||
|
26200F
|
26200F
21916-72012 Gasket, Carburetor, No.1[11.1990 - 10.1992] 3YP..YX80 |
21916-72012 |
US $8.80 |
||
|
26204A
|
26204A
26208-41050 Valve, Throttle Solenoid(For Lpg)[08.1988 - 09.1992] 3YP..YX80 |
26208-41050 |
US $123.76 |
||
|
26204A
|
26204A
26208-70010 Valve, Throttle Solenoid(For Lpg)[09.1992 - 10.1992] 3YP..YX80 |
26208-70010 |
US $74.26 |
||
|
26204B
|
26204B
26236-44020 Gasket, Solenoid Valve(For Lpg)[08.1988 - 10.1992] 3YP..YX80 |
26236-44020 |
US $3.64 |
||
|
26204H
|
26204H
26248-72010 Spring, Throttle Return(For Lpg)[08.1988 - 10.1992] 3YP..YX80 |
26248-72010 |
US $8.74 |
||
|
26213
|
26213
26214-44060 Screw, Adjust[08.1988 - 10.1992] 3YP..YX80 |
26214-44060 |
US $6.70 |
||
| replacement | |||||
|
26213
|
26213
26214-10010 Screw, Adjust[08.1988 - 10.1992] 3YP..YX80 |
26214-10010 |
US $10.48 |
||
|
26214
|
26214
26214-72010 Screw, Power Adjust[08.1988 - 10.1992] 3YP..YX80 |
26214-72010 |
US $6.70 |
||
|
26215
|
26215
26215-41010 Nut, Power Adjust[08.1988 - 10.1992] 3YP..YX80 |
26215-41010 |
US $2.77 |
||
|
26216
|
26216
26216-73010 Valve, Power[08.1988 - 10.1992] 3YP..YX80 |
26216-73010 |
US $26.64 |
||
|
26218
|
26218
26218-44061 Boot(For Power Valve)[08.1988 - 10.1992] 3YP..YX80 |
26218-44061 |
US $12.81 |
||
|
26219
|
26219
26219-72010 Spring, Power Valve[08.1988 - 10.1992] 3YP..YX80 |
26219-72010 |
US $5.10 |
||
|
26223
|
26223
26223-72010 Screw, Set(For Power Valve Cam)[08.1988 - 10.1992] 3YP..YX80 |
26223-72010 |
US $8.74 |
||
|
26231
|
26231
26231-72010 Screw(For Lpg Carburetor)[08.1988 - 10.1992] 3YP..YX80 |
26231-72010 |
US $4.95 |
||
|
26236
|
26236
26236-72010 Gasket, Air Horn[08.1988 - 10.1992] 3YP..YX80 |
26236-72010 |
US $4.08 |
||
|
26239
|
26239
26239-44060 Spring[08.1988 - 10.1992] 3YP..YX80 ＮＯ．１ |
26239-44060 |
US $3.93 |
||
|
26239
|
26239
26239-72010 Spring[08.1988 - 10.1992] 3YP..YX80 ＮＯ．２ |
26239-72010 |
US $2.04 |
||
|
26244
|
26244
26244-44060 Collar(For Lpg Carburetor)[08.1988 - 10.1992] 3YP..YX80 ＮＯ．１ |
26244-44060 |
US $4.08 |
||
|
26244
|
26244
26244-73010 Collar(For Lpg Carburetor)[08.1988 - 10.1992] 3YP..YX80 ＮＯ．２ |
26244-73010 |
US $4.08 |
||
|
26246
|
26246
26246-73110 Jet[08.1988 - 10.1992] 3YP..YX80 |
26246-73110 |
US $2.04 |
||
|
26249
|
26249
26249-72010 Union, No.2 Fuel Hose(For Lpg)[08.1988 - 10.1992] 3YP..YX80..5F ＮＯ．１ |
26249-72010 |
US $29.99 |
||
|
26249
|
26249
26249-73010 Union, No.1, Fuel[08.1988 - 10.1992] 3YP..YX80 ＮＯ．２ |
26249-73010 |
US $8.44 |
||
|
26251
|
26251
26251-72010 Horn, Air[08.1988 - 10.1992] 3YP..YX80 |
26251-72010 |
US $44.99 |
||
|
26252
|
26252
26252-72010 Valve, Thermostatic[08.1988 - 10.1992] 3YP..YX80 |
26252-72010 |
US $21.55 |
||
|
26252B
|
26252B
21641-24030
Gasket(For Thermostatic Valve Cover No.2)
[08.1988 - 10.1992] 3YP..YX80 |
21641-24030 |
— | ||
|
26252C
|
26252C
21641-37041 Gasket(For Thermostatic Valve Cover)[08.1988 - 10.1992] 3YP..YX80 |
21641-37041 |
US $4.37 |
||
|
26253
|
26253
26253-72010 Valve, Change(For Slow)[08.1988 - 10.1992] 3YP..YX80 |
26253-72010 |
US $84.45 |
||
|
26254
|
26254
26254-44060 Cap, Power Screw Limit[08.1988 - 10.1992] 3YP..YX80 |
26254-44060 |
US $10.63 |
||
|
26256
|
26256
26256-72010 Gasket, Change Valve[08.1988 - 10.1992] 3YP..YX80 |
26256-72010 |
US $4.08 |
||
|
26262
|
26262
26262-73090 Cover[08.1988 - 04.1992] 3YP..YX80 ｶﾝﾚｲﾁ ｼﾖｳ |
26262-73090 |
US $33.49 |
||
|
26262
|
26262
26262-73091 Cover[04.1992 - 10.1992] 3YP..YX80 ｶﾝﾚｲﾁ ｼﾖｳ |
26262-73091 |
US $33.49 |
||
|
26262A
|
26262A
26236-70020 Gasket, Solenoid Valve(For Lpg)[04.1992 - 10.1992] 3YP..YX80 ｶﾝﾚｲﾁ ｼﾖｳ |
26236-70020 |
US $6.84 |
||
|
26262A
|
26262A
26236-73090 Gasket[08.1988 - 04.1992] 3YP..YX80 ｶﾝﾚｲﾁ ｼﾖｳ |
26236-73090 |
US $3.49 |
||
|
26266
|
26266
26266-44060 Gasket, Fuel Inlet Union[08.1988 - 10.1992] 3YP..YX80 |
26266-44060 |
US $3.64 |
||
|
2179113010
|
2179113010
21791-13010 Ring, Snap, No.1(For Carburetor Link) |
21791-13010 |
from US $1.76 |
||
|
2179160010
|
2179160010
21791-60010
Ring, Snap, No.1(For Carburetor Link)
|
21791-60010 |
— | ||
| replacement | |||||
|
2179160010
|
2179160010
21791-13010 Ring, Snap, No.1(For Carburetor Link) |
21791-13010 |
from US $1.76 |
||
|
2182125010
|
2182125010
21821-25010 Screw, Coil Housing Set |
21821-25010 |
US $3.84 |
||
|
2182125180
|
2182125180
21821-25180 Screw, Set, No.2(For Carburetor Body Set) |
21821-25180 |
from US $3.52 |
||
|
2182131140
|
2182131140
21821-31140 Screw(For 2Nd Regulator Cover Set) |
21821-31140 |
US $2.34 |
||
|
2184233010
|
2184233010
21842-33010
Screw, Power Piston Stop
|
21842-33010 |
— | ||
|
9161140616
|
9161140616
91611-40616
Bolt, Hexagon(For Steering Column Bracket)
|
91611-40616 |
— | ||
| replacement | |||||
|
9161140616
|
9161140616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.96 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.76 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
|
9461110300
|
9461110300
94611-10300
New Genuine Part
|
94611-10300 |
— | ||
