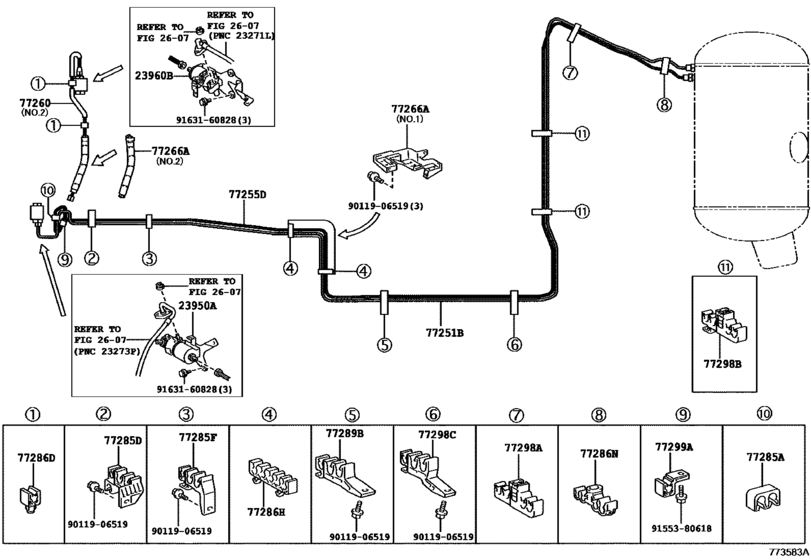

Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙ ﾁｭｰﾌﾞ (1310- )TSS10,11) Diagram Toyota CROWN COMFORT
- Year
- 2008 - 2018
- Sales region
- Japan
- Frame
- TSS10
- grade
- SDX
- ENGINE
- 1TRFPE
- TRANSMISSION
- ATM
- Model
- CROWN COMFORT
- From
- 08.2008
- Gear Shift Type
- 4FC
- Vehicle Model
- Crown Comfort
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23950A
|
23950A
23950-75010 Valve Assy, Solenoid[08.2008 -] 1TRFPE..TSS10,11 |
23950-75010 |
US $359.63 |
||
|
23960B
|
23960B
23960-75020 Valve Assy, Solenoid Lpg[08.2008 -] 1TRFPE..TSS10,11 |
23960-75020 |
US $144.14 |
||
|
77251B
|
77251B
77251-43100 Tube, Fuel Main[08.2008 - 10.2013] TSS10 |
77251-43100 |
US $77.17 |
||
|
77251B
|
77251B
77251-43150 Tube, Fuel Main[10.2013 -] TSS10 |
77251-43150 |
US $71.78 |
||
|
77255D
|
77255D
77255-43050 Tube, Fuel Return[08.2008 -] TSS10,11..CRW,SED,TAX ｱﾘ(ﾌｭｰｴﾙ ｸｰﾗ) |
77255-43050 |
US $26.06 |
||
|
77255D
|
77255D
77255-43060 Tube, Fuel Return[08.2008 -] TSS10 |
77255-43060 |
US $53.87 |
||
|
77260
|
77260
77260-43010 Hose Assy, Fuel Main[08.2008 -] TSS10,11 ＮＯ．１ |
77260-43010 |
US $34.61 |
||
|
77260
|
77260
77260-43020 Hose Assy, Fuel Main[08.2008 -] TSS10,11 ＮＯ．２ |
77260-43020 |
US $87.36 |
||
|
77266A
|
77266A
77266-43020 Protector, Fuel Tube, No.1[08.2008 - 10.2013] TSS10,11 ＮＯ．１ |
77266-43020 |
US $10.63 |
||
|
77266A
|
77266A
77266-43040 Protector, Fuel Tube, No.1[08.2008 -] TSS10,11..CRW,SED,TAX ＮＯ．３ |
77266-43040 |
US $5.82 |
||
|
77266A
|
77266A
77266-43050 Protector, Fuel Tube, No.1[08.2008 -] TSS10,11 ＮＯ．２ |
77266-43050 |
US $5.82 |
||
|
77266A
|
77266A
77266-43060 Protector, Fuel Tube, No.1[10.2013 -] TSS13; TSS10,11 ＮＯ．１ |
77266-43060 |
US $17.47 |
||
|
77285A
|
77285A
77285-42110 Support, Fuel Return And Main Tube[08.2008 -] TSS10,11 |
77285-42110 |
US $4.48 |
||
|
77285D
|
77285D
77285-43010 Clamp, Fuel Tube, No.1[08.2008 - 10.2013] TSS10,11 |
77285-43010 |
US $10.77 |
||
|
77285D
|
77285D
77285-43030 Clamp, Fuel Tube, No.1[10.2013 -] TSS10,11 |
77285-43030 |
US $9.76 |
||
|
77285F
|
77285F
77285-43020 Clamp, Fuel Tube, No.1[08.2008 - 10.2013] TSS10,11 |
77285-43020 |
US $10.77 |
||
|
77285F
|
77285F
77285-43040 Clamp, Fuel Tube, No.1[10.2013 -] TSS10,11 |
77285-43040 |
US $9.76 |
||
|
77286D
|
77286D
77286-52110 Clamp, Fuel Tube, No.2[08.2008 -] TSS10,11 |
77286-52110 |
US $1.60 |
||
|
77286H
|
77286H
77285-43050 Clamp, Fuel Tube, No.3[10.2013 -] TSS1# |
77285-43050 |
US $4.37 |
||
|
77286N
|
77286N
90959-01517 Clamp, Fuel Tube, No.7[08.2008 -] TSS10,11 |
90959-01517 |
US $6.47 |
||
|
77289B
|
77289B
77289-43010 Clamp, Fuel Tube, No.3[08.2008 - 10.2013] TSS10,11 |
77289-43010 |
US $10.77 |
||
|
77289B
|
77289B
77289-43020 Clamp, Fuel Tube, No.3[10.2013 -] TSS10,11 |
77289-43020 |
US $9.76 |
||
|
77298A
|
77298A
77298-43020 Clamp, Fuel Tube, No.4[10.2013 -] TSS10,11 |
77298-43020 |
US $9.76 |
||
|
77298B
|
77298B
77298-43040 Clamp, Fuel Tube, No.4[10.2013 -] TSS10,11 |
77298-43040 |
US $9.76 |
||
|
77298C
|
77298C
77298-43010 Clamp, Fuel Tube, No.4[08.2008 - 10.2013] TSS10,11 |
77298-43010 |
US $10.77 |
||
|
77298C
|
77298C
77298-43030 Clamp, Fuel Tube, No.4[10.2013 -] TSS10,11 |
77298-43030 |
US $9.76 |
||
|
77299A
|
77299A
77299-48010 Clamp, Fuel Tube, No.5[08.2008 -] TSS10,11 |
77299-48010 |
US $3.20 |
||
|
9011906519
|
9011906519
90119-06519 New Genuine Part |
90119-06519 |
US $2.61 |
||
|
9155380618
|
9155380618
91553-80618 Direct |
91553-80618 |
US $1.08 |
||
|
9163160828
|
9163160828
91631-60828 BOLT WWASHER |
91631-60828 |
US $1.02 |
