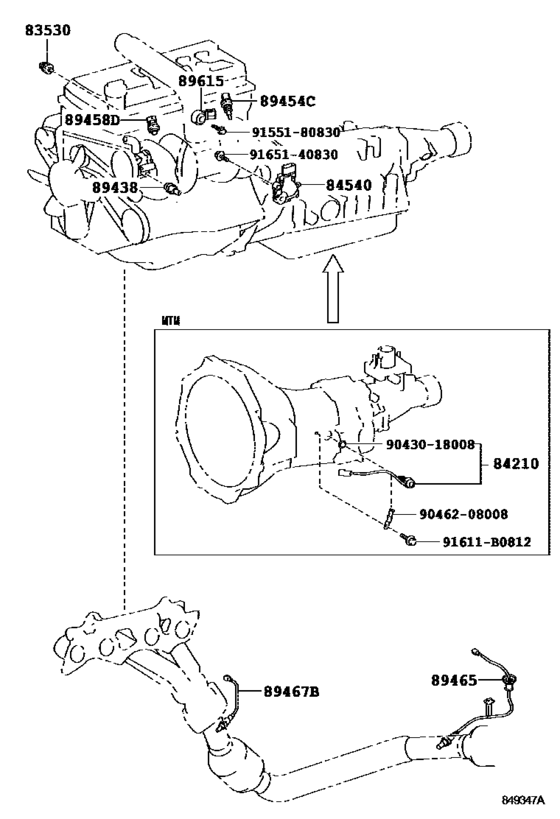

Switch & Relay & Computer ([09.2007 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ (0709- )TSS1#) Diagram Toyota CROWN COMFORT
- Year
- 2008 - 2018
- Sales region
- Japan
- Frame
- TSS10
- grade
- SDX
- ENGINE
- 1TRFPE
- TRANSMISSION
- ATM
- Model
- CROWN COMFORT
- From
- 08.2008
- Gear Shift Type
- 4FC
- Vehicle Model
- Crown Comfort
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[09.2007 - 04.2011] TSS10,11 |
83530-28020 |
from US $24.41 |
||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [09.2007 - 04.2011] TSS10,11 |
83530-60020 |
from US $24.04 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [04.2011 -] TSS10,11 ＹＡＺＡＫＩ |
83530-60020 |
from US $24.04 |
||
|
84540
|
84540
84540-30270 Switch Assy, Neutral Start[09.2007 -] TSS1#..4FC |
84540-30270 |
from US $128 |
||
|
89438
|
89438
89438-33010 Switch, Power Steering Oil Pressure[09.2007 - 11.2016] TSS1# |
89438-33010 |
from US $29.78 |
||
|
89438
|
89438
89438-71010 Switch, Power Steering Oil Pressure[11.2016 -] TSS1# |
89438-71010 |
from US $25.56 |
||
|
89454C
|
89454C
89454-43010 Sensor, Fuel Gas Temperature[08.2008 -] TSS10,11 |
89454-43010 |
US $40.66 |
||
|
89458D
|
89458D
89458-43010 Sensor, Fuel Pressure[08.2008 -] TSS10,11 |
89458-43010 |
US $95.12 |
||
|
89465
|
89465
89465-43160 Sensor, Oxygen[09.2007 -] TSS1# |
89465-43160 |
from US $154.16 |
||
|
89467B
|
89467B
89467-43010 Sensor, Air Fuel Ratio[10.2013 -] TSS1# |
89467-43010 |
US $211.20 |
||
|
89467B
|
89467B
89467-43020 Sensor, Air Fuel Ratio[09.2007 - 10.2013] TSS1# |
89467-43020 |
US $254.40 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[09.2007 -] TSS1# |
89615-20090 |
from US $39.82 |
||
|
91611B0812
|
91611B0812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $1.01 |
||
|
9046208008
|
9046208008
90462-08008 New Genuine Part |
90462-08008 |
US $4.37 |
||
|
9155180830
|
9155180830
91551-80830 Bolt, Compressor, No.2 |
91551-80830 |
from US $0.92 |
||
|
9165140830
|
9165140830
91651-40830 Bolt, Radiator Side Support Plate |
91651-40830 |
US $1.31 |
||
