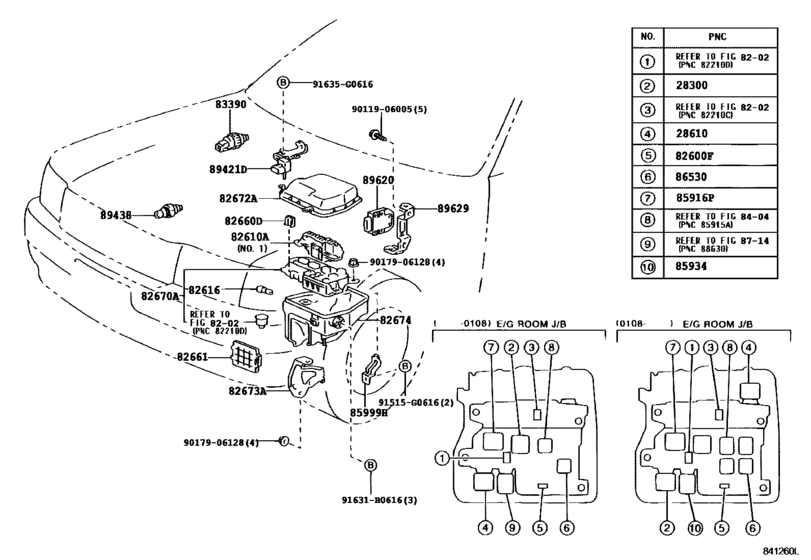

Switch & Relay & Computer ([01.1996 - ] ENGINE ROOM (9601- )LXS1#,YXS10) Diagram Toyota CROWN COMFORT
- Year
- 1999 - 2008
- Sales region
- General
- Frame
- YXS10
- ENGINE
- 3YPE
- TRANSMISSION
- ATM
- Model
- CROWN COMFORT
- From
- 08.1999
- To
- 08.2008
- Gear Shift Type
- 4HC
- Vehicle Model
- Crown Comfort
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-10020 Relay Assy, Starter[01.1996 - 08.2001] 2L,5L,3YPE..LXS1#,YXS10 |
28300-10020 |
from US $51.97 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[01.1996 - 08.2001] LXS1#,YXS10 10A |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[08.2001 - 05.2004] LXS12,YXS10..4HC,5F 15A |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[01.1996 - 08.2001] LXS1#,YXS10 20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[01.1996 - 08.2001] LXS1#,YXS10 7.5A |
90982-09005 |
from US $1.09 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[01.1996 - 08.2001] LXS1#,YXS10 5A,MINI FUSE |
90982-09007 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[08.2001 - 05.2004] LXS12,YXS10..4HC,5F 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[01.1996 - 08.2001] LXS1#,YXS10 10A,MINI FUSE |
90982-09009 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[01.1996 - 08.2001] LXS1#,YXS10 15A,MINI FUSE |
90982-09010 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[08.1999 - 08.2001] YXS10 20A,MINI FUSE |
90982-09011 |
from US $0.94 |
||
|
82610A
|
82610A
82610-20080 Block Assy, Fuse[08.2001 - 09.2007] YXS10..4HC NO.2 |
82610-20080 |
US $4.37 |
||
|
82610A
|
82610A
82610-43010 Block Assy, Fuse[01.1996 - 08.2001] LXS12..5F;LXS10,YXS10 NO.1 |
82610-43010 |
US $90.27 |
||
|
82610A
|
82610A
82610-43011 Block Assy, Fuse[08.2001 - 05.2004] LXS12,YXS10..4HC,5F NO.1 |
82610-43011 |
US $91.73 |
||
|
82616
|
82616
82616-20010 Puller, Fuse[01.1996 - 08.2001] LXS1#,YXS10 |
82616-20010 |
from US $2.46 |
||
|
82660D
|
82660D
82660-20340 Block Assy, Relay, Engine Room[08.2001 - 09.2007] YXS10..4HC |
82660-20340 |
US $5.59 |
||
|
82661
|
82661
82661-43010 Cover, Relay Block, No.1[01.1996 - 08.2001] LXS1#,YXS10 |
82661-43010 |
US $9.46 |
||
|
82670A
|
82670A
82720-43012 Block Assy, Junction, No.1[08.1999 - 08.2001] YXS10 |
82720-43012 |
US $292.66 |
||
|
82670A
|
82670A
82720-43013 Block Assy, Junction, No.1[08.2001 - 09.2007] YXS10..4HC |
82720-43013 |
US $314.50 |
||
|
82672A
|
82672A
82672-43013 Cover, Junction Block[08.1999 - 08.2001] YXS10 |
82672-43013 |
US $56.06 |
||
|
82672A
|
82672A
82672-43014 Cover, Junction Block[08.2001 - 09.2007] YXS10..4HC |
82672-43014 |
US $52.12 |
||
|
82673A
|
82673A
82673-43010 Bracket, Junction Block[01.1996 - 08.2001] LXS1#,YXS10 |
82673-43010 |
US $15.58 |
||
|
82674
|
82674
82674-43010 Cover, Junction Block Lower[01.1996 - 08.2001] LXS1#,YXS10 |
82674-43010 |
US $74.26 |
||
|
85916P
|
85916P
90987-02006 Relay[01.1996 - 08.2001] LXS1#,YXS10 |
90987-02006 |
from US $30.99 |
||
|
85934
|
85934
90987-02028 Relay, Water Pump[08.2001 - 09.2007] YXS10..4HC |
90987-02028 |
from US $44.54 |
||
|
85999H
|
85999H
85999-30290 Bracket, Relay, No.2[01.1996 - 08.2001] LXS1#,YXS10 |
85999-30290 |
US $5.24 |
||
|
86530
|
86530
86530-20070 Relay Assy, Horn[01.1996 - 08.2001] LXS1#,YXS10 |
86530-20070 |
from US $12.54 |
||
|
89438
|
89438
89438-30010 Switch, Power Steering Oil Pressure[08.1999 - 08.2001] YXS10 |
89438-30010 |
US $46.82 |
||
|
89620
|
89620
89621-26010 Igniter Assy[08.1999 - 08.2001] YXS10 |
89621-26010 |
from US $457.80 |
||
|
89629
|
89629
89629-43010 Bracket, Igniter Assy[08.1999 - 08.2001] YXS10 |
89629-43010 |
US $7.86 |
||
|
91515G0616
|
91515G0616
91515-G0616 New Genuine Part |
91515-G0616 |
US $1.16 |
||
|
91631B0616
|
91631B0616
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.70 |
||
|
91635G0616
|
91635G0616
91635-G0616 BOLTWWASHER |
91635-G0616 |
US $0.96 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9017906128
|
9017906128
90179-06128 NUT |
90179-06128 |
US $1.12 |
