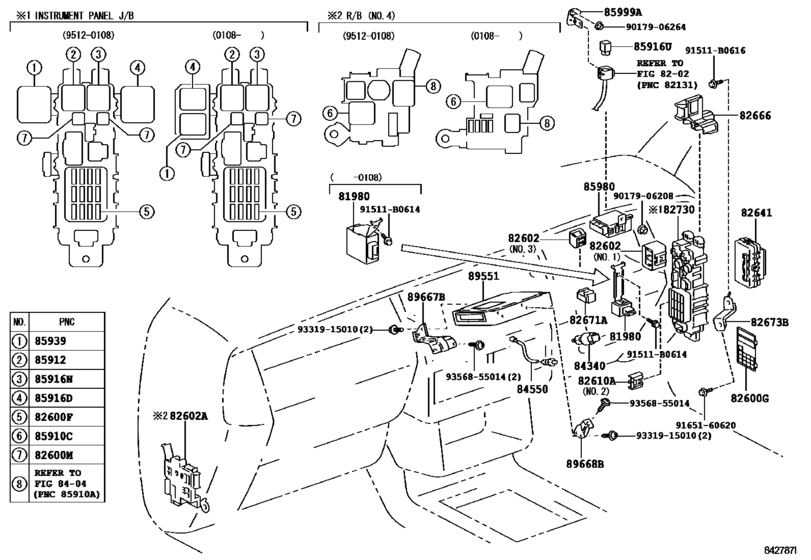

Switch & Relay & Computer ([01.1996 - ] COWL (9601- )) Diagram Toyota CROWN COMFORT
- Year
- 1999 - 2008
- Sales region
- General
- Frame
- YXS10
- ENGINE
- 3YPE
- TRANSMISSION
- ATM
- Model
- CROWN COMFORT
- From
- 08.1999
- To
- 08.2008
- Gear Shift Type
- 4HC
- Vehicle Model
- Crown Comfort
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-43010 Flasher Assy, Turn Signal[01.1996 - 08.2001] LXS1#,YXS10 |
81980-43010 |
US $101.92 |
||
|
81980
|
81980
81980-43020 Flasher Assy, Turn Signal[08.2001 - 09.2007] LXS12,YXS10 |
81980-43020 |
US $103.60 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[01.1996 - 08.2001] LXS1#,YXS10 10A |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[08.2001 - 05.2004] LXS12,YXS10..4HC,5F 15A |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[01.1996 - 08.2001] LXS1#,YXS10 20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[01.1996 - 08.2001] LXS1#,YXS10 7.5A |
90982-09005 |
from US $1.09 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[01.1996 - 08.2001] LXS1#,YXS10 5A,MINI FUSE |
90982-09007 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[08.2001 - 05.2004] LXS12,YXS10..4HC,5F 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[01.1996 - 08.2001] LXS1#,YXS10 10A,MINI FUSE |
90982-09009 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[01.1996 - 08.2001] LXS1#,YXS10 15A,MINI FUSE |
90982-09010 |
from US $1.12 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[08.1999 - 08.2001] YXS10 20A,MINI FUSE |
90982-09011 |
from US $0.94 |
||
|
82600G
|
82600G
82683-43012 Plate, Caution(For Fuse)[02.1998 - 08.2001] LXS12,YXS10 |
82683-43012 |
US $3.35 |
||
|
82600G
|
82600G
82683-43013 Plate, Caution(For Fuse)[08.2001 - 09.2007] LXS12,YXS10 |
82683-43013 |
US $3.49 |
||
|
82600M
|
82600M
90982-10001 Instrument Panel Fusible Link[01.1996 - 08.2001] LXS1#,YXS10 30A |
90982-10001 |
from US $3.84 |
||
|
82602
|
82602
82602-43040 Block Sub-Assy, Relay[08.2001 - 09.2007] YXS10..4HC NO.1 |
82602-43040 |
US $16.31 |
||
|
82602A
|
82602A
82602-43050 Block Sub-Assy, Relay[08.2001 - 09.2007] YXS10..4HC |
82602-43050 |
US $33.78 |
||
|
82610A
|
82610A
82610-20080 Block Assy, Fuse[08.2001 - 09.2007] YXS10..4HC NO.2 |
82610-20080 |
US $4.37 |
||
|
82610A
|
82610A
82610-43010 Block Assy, Fuse[01.1996 - 08.2001] LXS12..5F;LXS10,YXS10 NO.1 |
82610-43010 |
US $90.27 |
||
|
82610A
|
82610A
82610-43011 Block Assy, Fuse[08.2001 - 05.2004] LXS12,YXS10..4HC,5F NO.1 |
82610-43011 |
US $91.73 |
||
|
82666
|
82666
82666-43010 Holder, Connector[02.1998 - 08.2001] LXS12,YXS10 |
82666-43010 |
US $8.74 |
||
|
82671A
|
82671A
82671-30360 Block, Junction[08.2001 - 09.2007] YXS10..4HC |
82671-30360 |
US $8.04 |
||
|
82673B
|
82673B
82673-43020 Bracket, Junction Block[02.1998 - 08.2001] LXS12,YXS10 |
82673-43020 |
US $3.93 |
||
|
82730
|
82730
82730-43011 Block Assy, Instrument Panel Junction[02.1998 - 08.2001] LXS12,YXS10 |
82730-43011 |
US $289.74 |
||
|
82730
|
82730
82730-43022 Block Assy, Instrument Panel Junction[08.2001 - 05.2004] LXS12,YXS10..4HC,5F |
82730-43022 |
US $288.29 |
||
|
84340
|
84340
84340-32090
Switch Assy, Stop Lamp
[01.1996 - 08.2001] LXS1#,YXS10 |
84340-32090 |
— | ||
| replacement | |||||
|
84340
|
84340
84340-42010 Switch Assy, Stop Lamp[01.1996 - 08.2001] LXS1#,YXS10 |
84340-42010 |
from US $21.28 |
||
|
84550
|
84550
84550-43010 Switch Assy, Parking Brake[01.1996 - 08.2001] LXS1#,YXS10..4H,4HC |
84550-43010 |
US $15.72 |
||
|
85910C
|
85910C
90987-04002 Relay, Ignition, No.1[01.1996 - 08.2001] LXS1#,YXS10 |
90987-04002 |
from US $25.17 |
||
|
85912
|
85912
90987-02009 Relay Assy[01.1996 - 08.2001] LXS1#,YXS10 |
90987-02009 |
from US $33.87 |
||
|
85916D
|
85916D
90987-02009 Relay Assy[01.1996 - 08.2001] LXS1#,YXS10..4H,4HC |
90987-02009 |
from US $33.87 |
||
|
85916D
|
85916D
90987-02022 Relay, Starter Cut[08.2001 - 09.2007] YXS10..4HC |
90987-02022 |
from US $54 |
||
|
85916N
|
85916N
90987-02009 Relay Assy[01.1996 - 08.2001] LXS1#,YXS10 |
90987-02009 |
from US $33.87 |
||
|
85939
|
85939
90987-02009 Relay Assy[01.1996 - 08.2001] LXS1#,YXS10 |
90987-02009 |
from US $33.87 |
||
|
85939
|
85939
90987-02022 Relay, Starter Cut[08.2001 - 09.2007] YXS10..4HC |
90987-02022 |
from US $54 |
||
|
85939
|
85939
90987-02027 Relay[09.2007 -] TSS10,YXS10 |
90987-02027 |
from US $44.54 |
||
|
85980
|
85980
85980-43010 Relay Assy, Door Control[01.1996 - 08.2001] LXS1#,YXS10 |
85980-43010 |
US $174.72 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.78 |
||
|
91511B0616
|
91511B0616
91511-B0616 BOLT, FLANGE |
91511-B0616 |
from US $0.96 |
||
| replacement | |||||
|
91511B0616
|
91511B0616
90080-10164 BOLT, FLANGE |
90080-10164 |
US $2.67 |
||
|
9017906208
|
9017906208
90179-06208 NUT |
90179-06208 |
US $1.12 |
||
|
9017906264
|
9017906264
90179-06264 NUT, WWASHER |
90179-06264 |
from US $0.90 |
||
|
9165160620
|
9165160620
91651-60620 BOLTWWASHER |
91651-60620 |
from US $1.28 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $1.12 |
||
