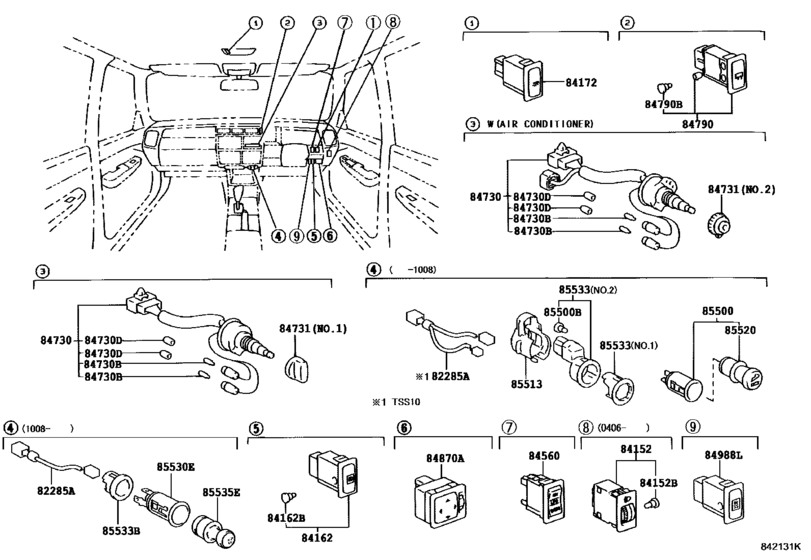

Switch & Relay & Computer ([01.1996 - ] INSTRUMENT PANEL (9601- )) Diagram Toyota CROWN COMFORT
- Year
- 1999 - 2008
- Sales region
- General
- Frame
- YXS10
- ENGINE
- 3YPE
- TRANSMISSION
- ATM
- Model
- CROWN COMFORT
- From
- 08.1999
- To
- 08.2008
- Gear Shift Type
- 4HC
- Vehicle Model
- Crown Comfort
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84152
|
84152
84152-47010 Switch, Headlamp Leveling[06.2004 - 09.2007] YXS10 |
84152-47010 |
US $48.05 |
||
|
84152B
|
84152B
90010-08100 Bulb (For Headlamp Leveling Switch)[06.2004 - 09.2007] YXS10 14V 40MA,W(GREEN CAP) |
90010-08100 |
from US $3.06 |
||
|
84162
|
84162
84160-95D00 Switch, Front Fog Lamp[08.2001 - 09.2007] YXS10..4HC |
84160-95D00 |
US $50.32 |
||
|
84162
|
84162
84160-95J03
Switch, Front Fog Lamp
[01.1996 - 08.2001] LXS1#,YXS10..4H,4HC |
84160-95J03 |
— | ||
| replacement | |||||
|
84162
|
84162
84160-95D00 Switch, Front Fog Lamp[01.1996 - 08.2001] LXS1#,YXS10..4H,4HC |
84160-95D00 |
US $50.32 |
||
|
84162B
|
84162B
84999-10320 Bulb, Satellite Switch[02.1998 - 08.2001] LXS12,YXS10..4H,4HC 14V 0.84W |
84999-10320 |
from US $3.84 |
||
|
84172
|
84172
84172-95J07 Switch, Room Lamp[01.1997 - 08.2001] LXS1#,YXS10 |
84172-95J07 |
US $31.30 |
||
|
84560
|
84560
84560-30040 Switch Assy, Fuel Valve Control[08.1999 - 08.2001] YXS10 |
84560-30040 |
US $77.17 |
||
|
84730
|
84730
84732-43010 Switch Assy, Heater Blower[01.1996 - 08.2001] LXS1#,YXS10 |
84732-43010 |
US $68.14 |
||
|
84730
|
84730
84732-43020 Switch Assy, Heater Blower[01.1996 - 08.2001] LXS1#,YXS10 W(FRONT MANUAL A/C) |
84732-43020 |
US $70.98 |
||
|
84730B
|
84730B
84999-10440 Bulb, Heater Blower Switch[01.1996 - 08.2001] LXS1#,YXS10 14V 2.0W |
84999-10440 |
US $5.28 |
||
|
84730D
|
84730D
84998-10050 Cap, Satellite Switch[01.1996 - 08.2001] LXS1#,YXS10 |
84998-10050 |
US $2.08 |
||
|
84731
|
84731
84731-43010 Knob, Heater Blower Switch[01.1996 - 08.2001] LXS1#,YXS10 NO.1 |
84731-43010 |
US $4.95 |
||
|
84731
|
84731
84731-43020
Knob, Heater Blower Switch
[01.1996 - 08.2001] LXS1#,YXS10 NO.2 |
84731-43020 |
— | ||
|
84790
|
84790
84790-43010 Switch Assy, Rear Window Defogger[01.1996 - 08.2001] LXS1#,YXS10 |
84790-43010 |
US $117.06 |
||
|
84790B
|
84790B
84999-10310 Bulb, Air Conditioner Control[01.1996 - 08.2001] LXS1#,YXS10 14V 0.91W |
84999-10310 |
from US $2.96 |
||
|
84870A
|
84870A
84870-26010 Switch Assy, Outer Mirror[01.1996 - 08.2001] LXS1#,YXS10 |
84870-26010 |
US $75.54 |
||
|
85500
|
85500
85500-17040
Lighter Assy, Cigarette
[01.1996 - 08.2001] LXS1#,YXS10 |
85500-17040 |
— | ||
| replacement | |||||
|
85500
|
85500
85500-17060 Lighter Assy, Cigarette[01.1996 - 08.2001] LXS1#,YXS10 |
85500-17060 |
from US $34.24 |
||
|
85500B
|
85500B
84999-10250 Bulb, Key Cylinder Lamp[01.1996 - 08.2001] LXS1#,YXS10 14V 1.4W |
84999-10250 |
from US $4.82 |
||
|
85513
|
85513
85513-12020 Cover, Cigarette Lighter[01.1996 - 08.2001] LXS1#,YXS10 |
85513-12020 |
from US $5.21 |
||
|
85520
|
85520
85520-20080 Knob And Element Assy, Cigarette Lighter[01.1996 - 08.2001] LXS1#,YXS10 |
85520-20080 |
US $31.45 |
||
|
85533
|
85533
85533-30020 Lens, Cigarette Lighter Indicator[01.1996 - 08.2001] LXS1#,YXS10 NO.1 |
85533-30020 |
US $4.51 |
||
|
85533
|
85533
85533-30050 Lens, Cigarette Lighter Indicator[01.1996 - 08.2001] LXS1#,YXS10 NO.2 |
85533-30050 |
US $10.77 |
||
