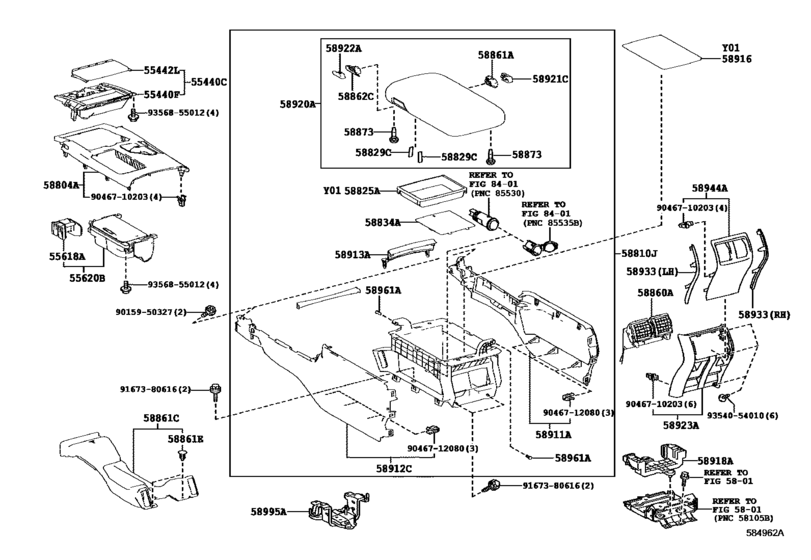

Console Box & Bracket ([09.2013 - ] (1309- )AWS215,GWS214) Diagram Toyota CROWN/ MAJESTA
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- AWS215
- grade
- MJ
- body
- SED
- ENGINE
- 2ARFSE
- TRANSMISSION
- CVT
- Model
- CROWN HYBRID
- From
- 07.2014
- No.of Doors
- 4D
- Vehicle Model
- Crown Hybrid
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55440C
|
55440C
55440-30120-E1 Box Assy, Instrument Panel[09.2013 - 09.2015] AWS215,GWS214 BROWN,TRIM0#,2# |
55440-30120-E1 |
US $97.55 |
||
|
55440C
|
55440C
55440-30120-E4 Box Assy, Instrument Panel[08.2016 -] AWS215,GWS214 BROWN,TRIM4# |
55440-30120-E4 |
US $97.55 |
||
|
55440F
|
55440F
55441-30290 Box Assy, Instrument Panel[12.2012 - 09.2015] AWS21#,GRS21#,GWS214 |
55441-30290 |
US $59.26 |
||
|
55442L
|
55442L
55442-30390-E1 Door, Instrument Panel[09.2013 - 09.2015] AWS215,GWS214 BROWN,TRIM0#,2# |
55442-30390-E1 |
US $48.34 |
||
|
55442L
|
55442L
55442-30390-E4 Door, Instrument Panel[08.2016 -] AWS215,GWS214 BROWN,TRIM4# |
55442-30390-E4 |
US $48.34 |
||
|
55618A
|
55618A
55618-30040 Holder, Console Box Cup[12.2012 - 09.2015] AWS21#,GRS21#,GWS214 |
55618-30040 |
US $27.66 |
||
|
55620B
|
55620B
55620-30360-E1 Holder, Instrument Panel Cup[09.2013 - 09.2015] AWS215,GWS214 BROWN,TRIM0#,2# |
55620-30360-E1 |
US $112.11 |
||
|
55620B
|
55620B
55620-30360-E4 Holder, Instrument Panel Cup[08.2016 -] AWS215,GWS214 BROWN,TRIM4# |
55620-30360-E4 |
US $112.11 |
||
|
58804A
|
58804A
58804-30F00-E1 Panel Sub-Assy, Console, Upper[09.2013 - 09.2015] AWS215,GWS214 BROWN,TRIM0#,2# |
58804-30F00-E1 |
US $128.13 |
||
|
58804A
|
58804A
58804-30F00-E4 Panel Sub-Assy, Console, Upper[08.2016 -] AWS215,GWS214 BROWN,TRIM4# |
58804-30F00-E4 |
US $128.13 |
||
|
58810J
|
58810J
58810-30D30-23 Box Assy, Console[08.2016 -] AWS215,GWS214 BLACK/DK.BROWN,TRIM4# |
58810-30D30-23 |
US $563.47 |
||
|
58810J
|
58810J
58810-30D30-A1 Box Assy, Console[12.2012 - 09.2015] AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
58810-30D30-A1 |
US $563.47 |
||
|
58810J
|
58810J
58810-30D30-C5 Box Assy, Console[12.2012 - 09.2015] AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3#; GRS210,211..ATHG;AWS21#,GRS214,GWS214..ATHG,MJ,ROY BLACK,TRIM2# |
58810-30D30-C5 |
US $563.47 |
||
|
58825A
|
58825A
58825-30160 Pocket, Console Box[12.2012 - 09.2015] AWS21#,GRS21#,GWS214 |
58825-30160 |
US $30.84 |
||
|
58829C
|
58829C
58829-30060-A1 Stopper, Console Box Pocket[09.2013 - 09.2015] AWS211,215,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
58829-30060-A1 |
US $0.87 |
||
|
58829C
|
58829C
58829-30060-C0 Stopper, Console Box PocketCONSOLE BOX POCKET [12.2012 - 09.2015] AWS210..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM00,40; AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3#; AWS211..ATHG,ROY;AWS210,215,GRS21#,GWS214..ATHG,MJ BLACK,TRIM2# |
58829-30060-C0 |
US $0.87 |
||
|
58834A
|
58834A
58834-22040 Cover, Console, LowerCONSOLE, LOWER [12.2012 - 09.2015] AWS21#,GRS21#,GWS214 |
58834-22040 |
US $14.56 |
||
|
58860A
|
58860A
58860-22020-C0 Register Assy, Console Box[12.2012 - 09.2015] AWS21#,GRS21#,GWS214 BLACK |
58860-22020-C0 |
US $58.97 |
||
|
58860A
|
58860A
58860-22020-C1 Register Assy, Console Box[10.2016 -] ARS210,AWS21#,GRS21#,GWS214 BLACK |
58860-22020-C1 |
US $53.58 |
||
|
58861A
|
58861A
58865-30130-A0 Support, Console Box, No.1[12.2012 - 09.2015] AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
58865-30130-A0 |
US $4.51 |
||
|
58861A
|
58861A
58865-30130-C0 Support, Console Box, No.1[12.2012 - 09.2015] AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3#; GRS210,211..ATHG;AWS21#,GRS214,GWS214..ATHG,MJ,ROY BLACK,TRIM2# |
58865-30130-C0 |
US $4.51 |
||
|
58861C
|
58861C
58861-30190 Duct, Console Box, No.1[12.2012 - 09.2015] AWS21#,GRS21#,GWS214 |
58861-30190 |
US $30.28 |
||
|
58861E
|
58861E
90467-05161-C0 Clip[12.2012 - 09.2015] AWS21#,GRS21#,GWS214 BLACK |
90467-05161-C0 |
US $0.96 |
||
|
58862C
|
58862C
58866-30070-A0 Support, Console Box, No.2[12.2012 - 09.2015] AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
58866-30070-A0 |
US $4.51 |
||
|
58862C
|
58862C
58866-30070-C0 Support, Console Box, No.2[12.2012 - 09.2015] AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3#; GRS210,211..ATHG;AWS21#,GRS214,GWS214..ATHG,MJ,ROY BLACK,TRIM2# |
58866-30070-C0 |
US $4.51 |
||
|
58873
|
58873
58873-30050 Cushion, Console Box, No.3[12.2012 - 09.2015] AWS21#,GRS21#,GWS214 |
58873-30050 |
US $1.02 |
||
|
58911A
|
58911A
58911-30250-A0 Panel, Box Side, No.1[09.2013 - 09.2015] AWS211,215,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
58911-30250-A0 |
US $65.37 |
||
|
58911A
|
58911A
58911-30250-C0 Panel, Box Side, No.1[12.2012 - 09.2015] AWS210..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM00,40; AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3#; AWS211..ATHG,ROY;AWS210,215,GRS21#,GWS214..ATHG,MJ BLACK,TRIM2# |
58911-30250-C0 |
US $65.37 |
||
|
58912C
|
58912C
58912-30290-A0 Panel, Box Side, No.2[09.2013 - 09.2015] AWS211,215,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
58912-30290-A0 |
US $65.37 |
||
|
58912C
|
58912C
58912-30290-C0 Panel, Box Side, No.2[12.2012 - 09.2015] AWS210..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM00,40; AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3#; AWS211..ATHG,ROY;AWS210,215,GRS21#,GWS214..ATHG,MJ BLACK,TRIM2# |
58912-30290-C0 |
US $65.37 |
||
|
58913A
|
58913A
58913-30070-A0 Panel, Box, No.3[09.2013 - 09.2015] AWS211,215,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
58913-30070-A0 |
US $10.34 |
||
|
58913A
|
58913A
58913-30070-C0 Panel, Box, No.3[12.2012 - 09.2015] AWS210..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG BLACK,TRIM00,40; AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3#; AWS211..ATHG,ROY;AWS210,215,GRS21#,GWS214..ATHG,MJ BLACK,TRIM2# |
58913-30070-C0 |
US $10.34 |
||
|
58916
|
58916
58916-30190 Mat, Box Bottom[12.2012 - 09.2015] AWS21#,GRS21#,GWS214 |
58916-30190 |
US $3.64 |
||
|
58918A
|
58918A
58918-30070 Bracket, Box Support[09.2013 - 09.2015] AWS215,GWS214 |
58918-30070 |
US $75.71 |
||
|
58920A
|
58920A
58920-30350-A2 Armrest Assy, Rear Console[12.2012 - 09.2015] AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
58920-30350-A2 |
US $378.40 |
||
|
58920A
|
58920A
58920-30350-C1 Armrest Assy, Rear Console[12.2012 - 09.2015] AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3#; GRS210,211..ATHG;AWS21#,GRS214,GWS214..ATHG,MJ,ROY BLACK,TRIM2# |
58920-30350-C1 |
US $415.80 |
||
|
58920A
|
58920A
58920-30350-C7 Armrest Assy, Rear Console[08.2016 -] AWS215,GWS214 BLACK/DK.BROWN,TRIM4# |
58920-30350-C7 |
US $302.85 |
||
|
58921C
|
58921C
58921-30090-A0 Plate, Box, Upper No.1[12.2012 - 09.2015] AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
58921-30090-A0 |
US $4.66 |
||
|
58921C
|
58921C
58921-30090-C0 Plate, Box, Upper No.1[12.2012 - 09.2015] AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3#; GRS210,211..ATHG;AWS21#,GRS214,GWS214..ATHG,MJ,ROY BLACK,TRIM2# |
58921-30090-C0 |
US $4.66 |
||
|
58922A
|
58922A
58922-30070-A0 Plate, Box, Upper No.2[12.2012 - 09.2015] AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG FLAXEN,TRIM0# |
58922-30070-A0 |
US $4.66 |
||
|
58922A
|
58922A
58922-30070-C0 Plate, Box, Upper No.2[12.2012 - 09.2015] AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3#; GRS210,211..ATHG;AWS21#,GRS214,GWS214..ATHG,MJ,ROY BLACK,TRIM2# |
58922-30070-C0 |
US $4.66 |
||
|
58923A
|
58923A
58923-30210-A0 Panel, Console Rear End[09.2013 - 09.2015] AWS215,GWS214 FLAXEN,TRIM0# |
58923-30210-A0 |
US $39.31 |
||
|
58923A
|
58923A
58923-30210-C0 Panel, Console Rear End[09.2013 - 09.2015] AWS215,GWS214 BLACK,TRIM2# |
58923-30210-C0 |
US $39.31 |
||
|
58933
|
58933
58933-30100 Garnish, Console Rear End Panel[09.2013 - 09.2015] AWS215,GWS214 左側 |
58933-30100 |
US $11.50 |
||
|
58933
|
58933
58934-30140 Garnish, Console Rear End Panel[09.2013 - 09.2015] AWS215,GWS214 右側 |
58934-30140 |
US $11.50 |
||
|
58944A
|
58944A
58944-30130-E0 Cover, Console, Rear[09.2013 - 09.2015] AWS215,GWS214 BROWN,TRIM0#,2# |
58944-30130-E0 |
US $80.08 |
||
|
58944A
|
58944A
58944-30130-E1 Cover, Console, Rear[08.2016 -] AWS215,GWS214 BROWN,TRIM4# |
58944-30130-E1 |
US $80.08 |
||
|
58961A
|
58961A
58961-30110 Hinge, Console Compartment Door Male[12.2012 - 09.2015] AWS21#,GRS21#,GWS214 |
58961-30110 |
US $1.10 |
||
|
58995A
|
58995A
58995-30220 Bracket, Console Box Mounting, No.1[12.2012 - 09.2015] AWS21#,GRS21#,GWS214 |
58995-30220 |
US $17.76 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.74 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9046712080
|
9046712080
90467-12080 Clip(For Panel, Instrument Cluster Finish) |
90467-12080 |
from US $0.80 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9354054010
|
9354054010
93540-54010 Screw, Roof Headlining Trim |
93540-54010 |
from US $1.92 |
||
|
9356855012
|
9356855012
93568-55012 SCREW |
93568-55012 |
from US $0.96 |
