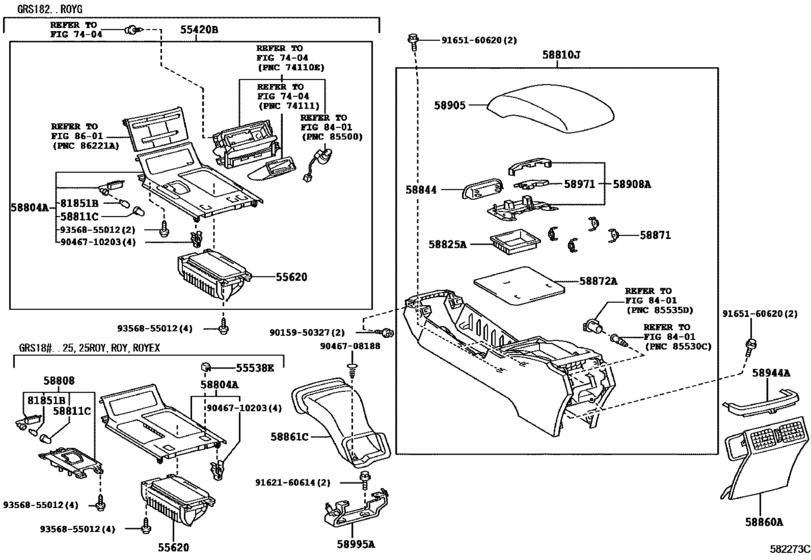

Console Box & Bracket ([02.2005 - ] (0502- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2005 - 2009
- Sales region
- General
- Frame
- GRS182
- grade
- ROYEX
- body
- SED
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- CROWN (CHINA)
- From
- 02.2005
- To
- 11.2009
- Gear Shift Type
- 6FC
- Vehicle Model
- Crown
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55620
|
55620
55620-0N010-B0
Holder Assy, Instrument Panel Cup
[02.2005 - 11.2009] GRS18#..25,25ROY,ROYEX GRAY,TRIM2# |
55620-0N010-B0 |
— | ||
|
55620
|
55620
55620-0N010-E0
Holder Assy, Instrument Panel Cup
[02.2005 - 11.2009] GRS18#..25,25ROY,ROY,ROYEX LT.BROWN,TRIM0# |
55620-0N010-E0 |
— | ||
|
58804A
|
58804A
58804-0N010-B0
Panel Sub-Assy, Console, Upper
[02.2005 - 11.2009] GRS18#..25,25ROY,ROYEX GRAY,TRIM2# |
58804-0N010-B0 |
— | ||
|
58804A
|
58804A
58804-0N010-E0
Panel Sub-Assy, Console, Upper
[02.2005 - 11.2009] GRS18#..25,25ROY,ROY,ROYEX LT.BROWN,TRIM0# |
58804-0N010-E0 |
— | ||
|
58808
|
58808
58808-0N010-B0
Cover Sub-Assy, Shifting Hole
[02.2005 - 11.2009] GRS18#..25,25ROY,ROYEX GRAY,TRIM2# |
58808-0N010-B0 |
— | ||
|
58808
|
58808
58808-0N010-E0
Cover Sub-Assy, Shifting Hole
[02.2005 - 11.2009] GRS18#..25,25ROY,ROY,ROYEX LT.BROWN,TRIM0# |
58808-0N010-E0 |
— | ||
|
58810J
|
58810J
58810-0N010-A0
Box Assy, Console
[02.2005 - 11.2009] GRS18# IVORY,TRIM0# |
58810-0N010-A0 |
— | ||
| replacement | |||||
|
58810J
|
58810J
58810-0N011-A0
Box Assy, Console
[02.2005 - 11.2009] GRS18# IVORY,TRIM0# |
58810-0N011-A0 |
— | ||
|
58810J
|
58810J
58810-0N010-C0
Box Assy, Console
[02.2005 - 11.2009] GRS18# BLACK,TRIM2# |
58810-0N010-C0 |
— | ||
| replacement | |||||
|
58810J
|
58810J
58810-0N011-C0
Box Assy, Console
[02.2005 - 11.2009] GRS18# BLACK,TRIM2# |
58810-0N011-C0 |
— | ||
|
58811C
|
58811C
90339-04055
Cap, Position Indicator Lamp
[02.2005 -] GRS18# |
90339-04055 |
— | ||
| replacement | |||||
|
58811C
|
58811C
35956-75010 Cap, Position Indicator LampPOSITION INDICATOR LAMP [02.2005 -] GRS18# |
35956-75010 |
US $2.24 |
||
|
58825A
|
58825A
58825-0N010
Pocket, Console Box
[02.2005 -] GRS18# |
58825-0N010 |
— | ||
|
58844
|
58844
58844-0N010-A0
Bezel, Console Box
[02.2005 - 11.2009] GRS18# IVORY,TRIM0# |
58844-0N010-A0 |
— | ||
|
58844
|
58844
58844-0N010-C0
Bezel, Console Box
[02.2005 - 11.2009] GRS18# BLACK,TRIM2# |
58844-0N010-C0 |
— | ||
|
58860A
|
58860A
58860-0N010-A0
Register Assy, Console Box
[02.2005 - 11.2009] GRS18# IVORY,TRIM0# |
58860-0N010-A0 |
— | ||
|
58860A
|
58860A
58860-0N010-C0
Register Assy, Console Box
[02.2005 - 11.2009] GRS18# BLACK,TRIM2# |
58860-0N010-C0 |
— | ||
|
58861C
|
58861C
58861-0N010
Duct, Console Box, No.1
[02.2005 -] GRS18# |
58861-0N010 |
— | ||
|
58871
|
58871
58871-0N010
Cushion, Console Box
[02.2005 -] GRS18# |
58871-0N010 |
— | ||
|
58872A
|
58872A
58872-30040 Cushion, Console Box, No.2[02.2005 -] GRS18# |
58872-30040 |
US $5.53 |
||
|
58905
|
58905
58905-0N010-A0
Door Sub-Assy, Console Compartment
[02.2005 - 11.2009] GRS18# IVORY,TRIM0# |
58905-0N010-A0 |
— | ||
|
58905
|
58905
58905-0N010-C0
Door Sub-Assy, Console Compartment
[02.2005 - 11.2009] GRS18# BLACK,TRIM2# |
58905-0N010-C0 |
— | ||
|
58908A
|
58908A
58908-0N010-A0
Lock Sub-Assy, Console Compartment Door
[02.2005 - 11.2009] GRS18# IVORY,TRIM0# |
58908-0N010-A0 |
— | ||
|
58908A
|
58908A
58908-0N010-C0
Lock Sub-Assy, Console Compartment Door
[02.2005 - 11.2009] GRS18# BLACK,TRIM2# |
58908-0N010-C0 |
— | ||
|
58944A
|
58944A
58944-0N010-B0
Cover, Console, Rear
[02.2005 - 11.2009] GRS18#..25,25ROY,ROYEX GRAY,TRIM2# |
58944-0N010-B0 |
— | ||
|
58944A
|
58944A
58944-0N010-E0
Cover, Console, Rear
[02.2005 - 11.2009] GRS18#..25,25ROY,ROY,ROYEX LT.BROWN,TRIM0# |
58944-0N010-E0 |
— | ||
|
58971
|
58971
58971-0N010-A0
Lock, Console Compartment Door
[02.2005 - 11.2009] GRS18# IVORY,TRIM0# |
58971-0N010-A0 |
— | ||
|
58971
|
58971
58971-0N010-C0
Lock, Console Compartment Door
[02.2005 - 11.2009] GRS18# BLACK,TRIM2# |
58971-0N010-C0 |
— | ||
|
58995A
|
58995A
58995-30200 Bracket, Console Box Mounting, No.1[02.2005 -] GRS18# |
58995-30200 |
US $14.12 |
||
|
81851B
|
81851B
90981-11014 Bulb, Position Indicator Lamp[02.2005 -] GRS18# |
90981-11014 |
from US $1.92 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.74 |
||
|
9046708188
|
9046708188
90467-08188 Clip, Radiator Support To Frame |
90467-08188 |
US $1.28 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9162160614
|
9162160614
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165160620
|
9165160620
91651-60620 BOLTWWASHER |
91651-60620 |
from US $1.28 |
||
|
9356855012
|
9356855012
93568-55012 SCREW |
93568-55012 |
from US $0.96 |
||
