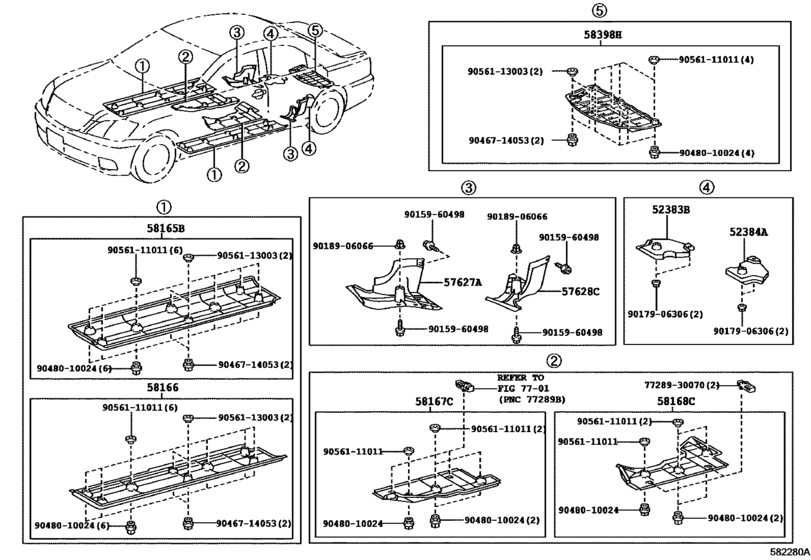

Floor Pan & Lower Back Panel ([02.2005 - 10.2005] FLOOR UNDER COVER (0502-0510)) Diagram Toyota CROWN/ MAJESTA
- Year
- 2005 - 2009
- Sales region
- General
- Frame
- GRS182
- grade
- ROYEX
- body
- SED
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- CROWN (CHINA)
- From
- 02.2005
- To
- 11.2009
- Gear Shift Type
- 6FC
- Vehicle Model
- Crown
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52383B
|
52383B
52383-0N010
Protector, Differential Support, No.1
[02.2005 -] GRS18# |
52383-0N010 |
— | ||
|
52384A
|
52384A
52384-0N010
Protector, Differential Support, No.2
[02.2005 -] GRS18# |
52384-0N010 |
— | ||
|
57627A
|
57627A
57627-0N010
Cover, Rear Floor Side Member, Rh
[02.2005 - 10.2005] GRS182 |
57627-0N010 |
— | ||
|
57627A
|
57627A
57627-0P010
Cover, Rear Floor Side Member, Rh
[10.2005 -] GRS18# |
57627-0P010 |
— | ||
|
57628C
|
57628C
57628-0N010
Cover, Rear Floor Side Member, Lh
[02.2005 - 10.2005] GRS182 |
57628-0N010 |
— | ||
|
57628C
|
57628C
57628-0P010
Cover, Rear Floor Side Member, Lh
[10.2005 -] GRS18# |
57628-0P010 |
— | ||
|
58165B
|
58165B
58165-0N010
Cover, Front Floor, Rh
[02.2005 -] GRS18# |
58165-0N010 |
— | ||
|
58166
|
58166
58166-0N010
Cover, Front Floor, Lh
[02.2005 -] GRS18# |
58166-0N010 |
— | ||
|
58167C
|
58167C
58167-0N010
Cover, Front Floor, Center Rh
[02.2005 -] GRS18# |
58167-0N010 |
— | ||
|
58168C
|
58168C
58168-0N010
Cover, Front Floor, Center Lh
[02.2005 -] GRS18# |
58168-0N010 |
— | ||
|
58398H
|
58398H
58398-0N010
Cover, Floor Under, No.1
[02.2005 -] GRS18# |
58398-0N010 |
— | ||
|
7728930070
|
7728930070
77289-30070 Clamp, Fuel Tube, No.1 |
77289-30070 |
from US $7.52 |
||
|
9015960498
|
9015960498
90159-60498 SCREW W-WASHER |
90159-60498 |
from US $0.72 |
||
|
9017906306
|
9017906306
90179-06306 NUT |
90179-06306 |
US $1.92 |
||
|
9018906066
|
9018906066
90189-06066 CLIP |
90189-06066 |
from US $0.76 |
||
|
9046714053
|
9046714053
90467-14053 Clip, No.1(For Floor Under Cover) |
90467-14053 |
from US $1.21 |
||
|
9048010024
|
9048010024
90480-10024 Clip, No.2(For Floor Under Cover) |
90480-10024 |
from US $1.60 |
||
|
9056111011
|
9056111011
90561-11011 Clip, No.1(For Floor Under Cover) |
90561-11011 |
from US $1.12 |
||
|
9056113003
|
9056113003
90561-13003 Clip, No.4(For Floor Under Cover) |
90561-13003 |
US $1.12 |
