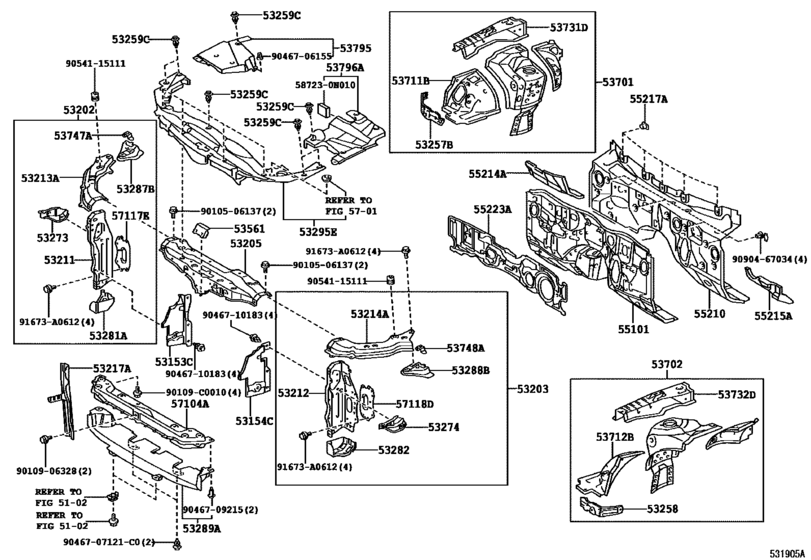

Front Fender Apron & Dash Panel ([02.2005 - ] (0502- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2005 - 2009
- Sales region
- General
- Frame
- GRS182
- grade
- ROYEX
- body
- SED
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- CROWN (CHINA)
- From
- 02.2005
- To
- 11.2009
- Gear Shift Type
- 6FC
- Vehicle Model
- Crown
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53153C
|
53153C
53153-0N010
Guide, Radiator Grille Side Air, Rh
[02.2005 -] GRS18# |
53153-0N010 |
— | ||
|
53154C
|
53154C
53154-0N010
Guide, Radiator Grille Side Air, Lh
[02.2005 -] GRS18# |
53154-0N010 |
— | ||
|
53202
|
53202
53202-30031 Support Sub-Assy, Radiator, Rh[02.2005 -] GRS18# |
53202-30031 |
from US $148.51 |
||
|
53203
|
53203
53203-30041 Support Sub-Assy, Radiator, Lh[02.2005 -] GRS18# |
53203-30041 |
US $148.51 |
||
|
53205
|
53205
53205-30070 Support Sub-Assy, Radiator, Upper[02.2005 -] GRS18# |
53205-30070 |
US $119.88 |
||
|
53211
|
53211
53211-30310 Support, Radiator, Rh[02.2005 -] GRS18# |
53211-30310 |
US $63.34 |
||
|
53212
|
53212
53212-30250 Support, Radiator, Lh[02.2005 -] GRS18# |
53212-30250 |
US $77.02 |
||
|
53213A
|
53213A
53213-30070 Support, Radiator, Upper Rh[02.2005 -] GRS18# |
53213-30070 |
US $34.07 |
||
|
53214A
|
53214A
53214-30060 Support, Radiator, Upper Lh[02.2005 -] GRS18# |
53214-30060 |
from US $34.07 |
||
|
53217A
|
53217A
53208-0N010
Brace, Hood Lock Support
[02.2005 - 11.2009] GRS18# |
53208-0N010 |
— | ||
|
53257B
|
53257B
53257-30060 Bracket, Radiator Support To Front Fender[02.2005 -] GRS18# |
53257-30060 |
US $15.94 |
||
|
53258
|
53258
53258-30040 Bracket, Front End Panel Mounting, Lh[02.2005 -] GRS18# |
53258-30040 |
US $14.85 |
||
|
53259C
|
53259C
53259-48010 Clip, Radiator Support To Frame Seal[02.2005 -] GRS18# |
53259-48010 |
from US $1.77 |
||
|
53273
|
53273
53273-30050 Bracket, Front Bumper Arm Mounting, Rh[02.2005 -] GRS18# |
53273-30050 |
US $9.17 |
||
|
53274
|
53274
53274-30030 Bracket, Front Bumper Arm Mounting, Lh[02.2005 -] GRS18# |
53274-30030 |
US $9.17 |
||
|
53281A
|
53281A
53281-30050 Reinforcement, Front Body Mounting, Rh[02.2005 -] GRS18# |
53281-30050 |
US $19.66 |
||
|
53282
|
53282
53282-30030 Reinforcement, Front Body Mounting, Lh[02.2005 -] GRS18# |
53282-30030 |
US $22.89 |
||
|
53287B
|
53287B
53287-30061 Extension, Radiator Support, Rh[02.2005 -] GRS18# |
53287-30061 |
US $16.07 |
||
|
53288B
|
53288B
53288-30051 Extension, Radiator Support, Lh[02.2005 -] GRS18# |
53288-30051 |
US $16.07 |
||
|
53289A
|
53289A
53289-0N010
Cover, Radiator Support Opening
[02.2005 -] GRS18# |
53289-0N010 |
— | ||
|
53295E
|
53295E
53295-0N010
Seal, Cool Air Intake Duct
[02.2005 - 08.2008] GRS18# |
53295-0N010 |
— | ||
| replacements | |||||
|
53295E
|
53295E
11295-0P010
Label, Engine Service Notice
[02.2005 - 08.2008] GRS18# |
11295-0P010 |
— | ||
|
53295E
|
53295E
53295-0N011
Seal, Cool Air Intake Duct
[02.2005 - 08.2008] GRS18# |
53295-0N011 |
— | ||
|
53295E
|
53295E
53295-0N011
Seal, Cool Air Intake Duct
[08.2008 -] GRS18# |
53295-0N011 |
— | ||
|
53561
|
53561
53561-30010 Guide, Hood Auxiliary Catch Hook[02.2005 -] GRS18# |
53561-30010 |
US $6.40 |
||
|
53701
|
53701
53701-0N010
Apron Sub-Assy, Front Fender, Rh
[02.2005 - 07.2005] GRS182 |
53701-0N010 |
— | ||
| replacements | |||||
|
53701
|
53701
53701-0N011
Apron Sub-Assy, Front Fender, Rh
[02.2005 - 07.2005] GRS182 |
53701-0N011 |
— | ||
|
53701
|
53701
53715-30030 Plate, Front Fender Apron, Rear Rh[02.2005 - 07.2005] GRS182 |
53715-30030 |
US $40.43 |
||
|
53701
|
53701
90179-06274 Nut[02.2005 - 07.2005] GRS182 |
90179-06274 |
from US $0.74 |
||
|
53701
|
53701
91673-80616 Bolt, W/washer[02.2005 - 07.2005] GRS182 |
91673-80616 |
from US $0.64 |
||
|
53702
|
53702
53702-0N010
Apron Sub-Assy, Front Fender, Lh
[02.2005 - 07.2005] GRS182 |
53702-0N010 |
— | ||
| replacement | |||||
|
53702
|
53702
53702-0N011
Apron Sub-Assy, Front Fender, Lh
[02.2005 - 07.2005] GRS182 |
53702-0N011 |
— | ||
|
53711B
|
53711B
53711-0N010
Apron, Front Fender, Front Rh
[02.2005 -] GRS18# |
53711-0N010 |
— | ||
| replacements | |||||
|
53711B
|
53711B
53711-0N020
Apron, Front Fender, Front Rh
[02.2005 -] GRS18# |
53711-0N020 |
— | ||
|
53711B
|
53711B
53715-30030 Plate, Front Fender Apron, Rear Rh[02.2005 -] GRS18# |
53715-30030 |
US $40.43 |
||
|
53711B
|
53711B
90179-06274 Nut[02.2005 -] GRS18# |
90179-06274 |
from US $0.74 |
||
|
53711B
|
53711B
91673-80616 Bolt, W/washer[02.2005 -] GRS18# |
91673-80616 |
from US $0.64 |
||
|
53712B
|
53712B
53712-0N010
Apron, Front Fender, Front Lh
[02.2005 -] GRS18# |
53712-0N010 |
— | ||
| replacement | |||||
|
53712B
|
53712B
53712-0N020
Apron, Front Fender, Front Lh
[02.2005 -] GRS18# |
53712-0N020 |
— | ||
|
53731D
|
53731D
53705-0N010
Member, Front Apron To Cowl Side, Upper Rh
[02.2005 -] GRS18# |
53705-0N010 |
— | ||
|
53732D
|
53732D
53706-0N010
Member, Front Apron To Cowl Side, Upper Lh
[02.2005 -] GRS18# |
53706-0N010 |
— | ||
|
53747A
|
53747A
53747-30030 Extension, Apron Fender Side, Rh[02.2005 -] GRS18# |
53747-30030 |
US $6.41 |
||
|
53748A
|
53748A
53748-30020 Extension, Apron Fender Side, Lh[02.2005 -] GRS18# |
53748-30020 |
US $6.41 |
||
|
53795
|
53795
53795-0N010
Cover, Headlamp Wire Harness Hole, Rh
[02.2005 -] GRS18# |
53795-0N010 |
— | ||
|
53796A
|
53796A
53796-0N010
Cover, Engine Room Side, Lh
[02.2005 -] GRS18# |
53796-0N010 |
— | ||
|
55101
|
55101
55101-0N010
Panel Sub-Assy, Dash
[02.2005 - 06.2005] GRS182 |
55101-0N010 |
— | ||
| replacements | |||||
|
55101
|
55101
55101-0P022
Panel Sub-Assy, Dash
[02.2005 - 06.2005] GRS182 |
55101-0P022 |
— | ||
|
55101
|
55101
90950-01948 PLUG HOLE[02.2005 - 06.2005] GRS182 |
90950-01948 |
from US $1.60 |
||
|
55101
|
55101
55101-0P010
Panel Sub-Assy, Dash
[07.2005 - 11.2009] GRS18# |
55101-0P010 |
— | ||
| replacements | |||||
|
55101
|
55101
55101-0P022
Panel Sub-Assy, Dash
[07.2005 - 11.2009] GRS18# |
55101-0P022 |
— | ||
|
55101
|
55101
90950-01948 PLUG HOLE[07.2005 - 11.2009] GRS18# |
90950-01948 |
from US $1.60 |
||
|
55210
|
55210
55210-0N010
Insulator Assy, Dash Panel
[02.2005 -] GRS18# |
55210-0N010 |
— | ||
| replacement | |||||
|
55210
|
55210
55210-0N011
Insulator Assy, Dash Panel
[02.2005 -] GRS18# |
55210-0N011 |
— | ||
|
55214A
|
55214A
55214-0N010
Pad, Dash Panel Insulator, No.2
[02.2005 - 04.2005] GRS182 |
55214-0N010 |
— | ||
|
55214A
|
55214A
55214-0N011
Pad, Dash Panel Insulator, No.2
[05.2005 -] GRS18# |
55214-0N011 |
— | ||
|
55215A
|
55215A
55215-0N010
Pad, Dash Panel Insulator, No.3
[02.2005 - 04.2005] GRS182 |
55215-0N010 |
— | ||
|
55215A
|
55215A
55215-0N011
Pad, Dash Panel Insulator, No.3
[05.2005 - 10.2005] GRS182 |
55215-0N011 |
— | ||
|
55215A
|
55215A
55215-0N020
Pad, Dash Panel Insulator, No.3
[10.2005 -] GRS18# |
55215-0N020 |
— | ||
| replacement | |||||
|
55215A
|
55215A
55215-0P010
Pad, Dash Panel Insulator, No.3
[10.2005 -] GRS18# |
55215-0P010 |
— | ||
|
55217A
|
55217A
55217-35020 Retainer, Dash Panel Silencer[02.2005 -] GRS18# |
55217-35020 |
US $3.36 |
||
|
55223A
|
55223A
55223-0N010
Insulator, Dash Panel, Outer
[02.2005 -] GRS18# |
55223-0N010 |
— | ||
| replacement | |||||
|
55223A
|
55223A
55223-0N011
Insulator, Dash Panel, Outer
[02.2005 -] GRS18# |
55223-0N011 |
— | ||
|
57104A
|
57104A
57104-0P010
Member Sub-Assy, Front Cross
[10.2005 -] GRS18# |
57104-0P010 |
— | ||
|
57104A
|
57104A
57104-30080 Member Sub-Assy, Front Cross[02.2005 - 09.2005] GRS182 |
57104-30080 |
US $94.72 |
||
|
57117E
|
57117E
57117-30050 Retainer, Front Bumper Arm, Rh[02.2005 -] GRS18# |
57117-30050 |
US $25.33 |
||
|
57118D
|
57118D
57118-30050 Retainer, Front Bumper Arm, Lh[02.2005 -] GRS18# |
57118-30050 |
US $26.56 |
||
|
90109C0010
|
90109C0010
90109-C0010
New Genuine Part
|
90109-C0010 |
— | ||
|
91673A0612
|
91673A0612
91673-A0612 Bolt |
91673-A0612 |
US $0.96 |
||
|
587230N010
|
587230N010
58723-0N010
Protector, Luggage Compartment Service Cover, No.1
|
58723-0N010 |
— | ||
|
9010506137
|
9010506137
90105-06137 BOLT, WASHER BASED H |
90105-06137 |
from US $0.86 |
||
|
9010906328
|
9010906328
90109-06328 BOLT |
90109-06328 |
from US $0.96 |
||
| replacement | |||||
|
9010906328
|
9010906328
90080-10342 New Genuine Part |
90080-10342 |
US $3.92 |
||
|
9046706155
|
9046706155
90467-06155 Clip |
90467-06155 |
from US $0.76 |
||
|
9046707121C0
|
9046707121C0
90467-07121-C0 Clip, Roof Headlining |
90467-07121-C0 |
US $2.56 |
||
|
9046709215
|
9046709215
90467-09215 Clip (For Center Lower Garnish) |
90467-09215 |
US $2.24 |
||
|
9046710183
|
9046710183
90467-10183 Clip(For Luggage Compartment Trim Inner Cover) |
90467-10183 |
from US $0.86 |
||
|
9054115111
|
9054115111
90541-15111 Cushion, Radiator Support |
90541-15111 |
from US $2.20 |
||
|
9090467034
|
9090467034
90904-67034 Clip |
90904-67034 |
US $2.48 |
||
