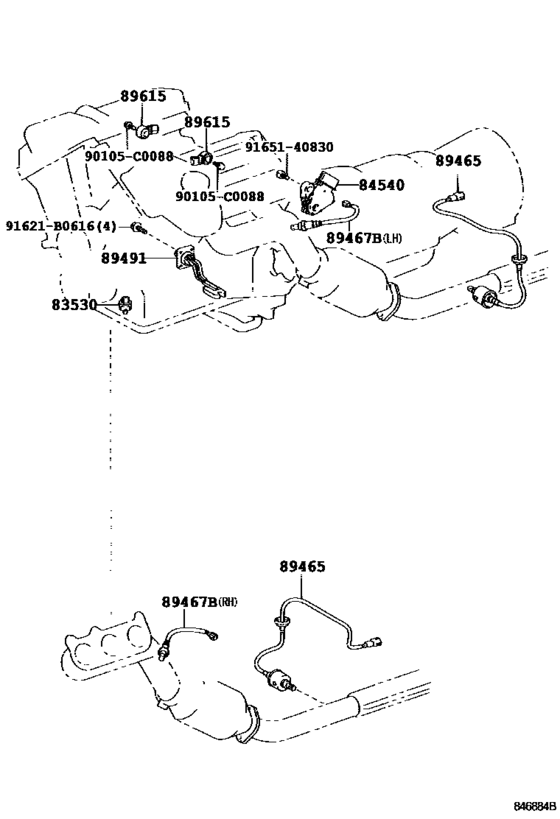

Switch & Relay & Computer ([02.2005 - ] ENGINE & TRANSMISSION (0502- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2005 - 2009
- Sales region
- General
- Frame
- GRS182
- grade
- ROYEX
- body
- SED
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- CROWN (CHINA)
- From
- 02.2005
- To
- 11.2009
- Gear Shift Type
- 6FC
- Vehicle Model
- Crown
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[02.2005 -] GRS18# |
83530-28020 |
US $29.94 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [02.2005 -] GRS18# |
83530-60020 |
from US $25.55 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[02.2005 -] GRS18# |
83530-0E010 |
from US $51.25 |
||
|
84540
|
84540
84540-30320 Switch Assy, Neutral Start[02.2005 - 11.2009] GRS182 |
84540-30320 |
US $174.24 |
||
|
89465
|
89465
89465-0N020
Sensor, Oxygen
[02.2005 - 10.2005] GRS182 |
89465-0N020 |
— | ||
|
89465
|
89465
89465-0N040
Sensor, Oxygen
[10.2005 - 10.2007] GRS18# |
89465-0N040 |
— | ||
|
89465
|
89465
89465-0P010
Sensor, Oxygen
[10.2007 -] GRS18# |
89465-0P010 |
— | ||
|
89467B
|
89467B
89467-30010 Sensor, Air Fuel Ratio[02.2005 - 10.2007] GRS182 RH & LH |
89467-30010 |
from US $214.83 |
||
|
89467B
|
89467B
89467-30030 Sensor, Air Fuel Ratio[10.2007 -] GRS182 LH |
89467-30030 |
from US $200.69 |
||
|
89467B
|
89467B
89467-30040 Sensor, Air Fuel Ratio[10.2007 -] GRS182 RH |
89467-30040 |
from US $210.89 |
||
|
89491
|
89491
89491-30060
Sensor, Engine Oil Level
[02.2005 -] GRS18# |
89491-30060 |
— | ||
| replacement | |||||
|
89491
|
89491
89491-30061 Sensor, Engine Oil Level[02.2005 -] GRS18# |
89491-30061 |
from US $140.60 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[02.2005 -] GRS18# |
89615-20090 |
from US $36.02 |
||
|
90105C0088
|
90105C0088
90105-C0088
New Genuine Part
|
90105-C0088 |
— | ||
|
91621B0616
|
91621B0616
91621-B0616 Bolt |
91621-B0616 |
from US $0.84 |
||
|
9165140830
|
9165140830
91651-40830 Bolt, Radiator Side Support Plate |
91651-40830 |
US $1.31 |
||
