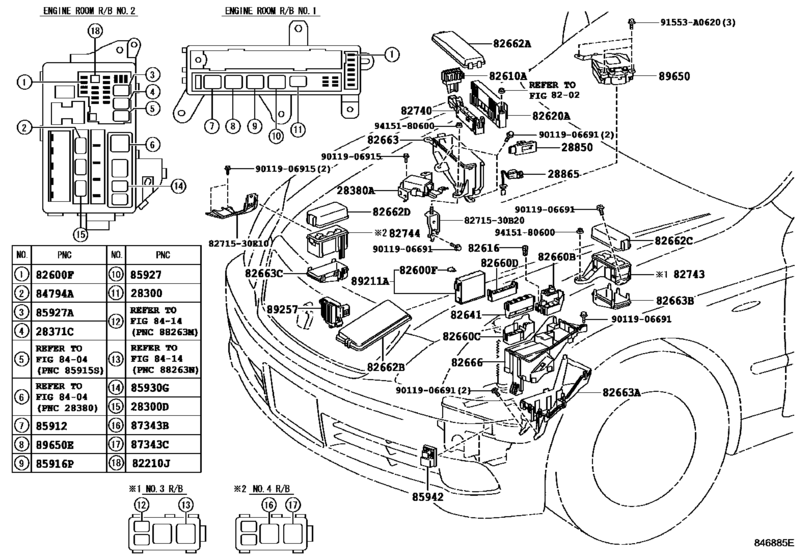

Switch & Relay & Computer ([02.2005 - ] ENGINE ROOM (0502- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2005 - 2009
- Sales region
- General
- Frame
- GRS182
- grade
- ROYEX
- body
- SED
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- CROWN (CHINA)
- From
- 02.2005
- To
- 11.2009
- Gear Shift Type
- 6FC
- Vehicle Model
- Crown
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-28010
Relay Assy, Starter
[02.2005 -] 3GRFE,5GRFE..GRS18# |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[02.2005 -] 3GRFE,5GRFE..GRS18# |
28300-21020 |
from US $40.58 |
||
|
28300D
|
28300D
90987-02027 Relay[02.2005 - 06.2005] 3GRFE..GRS182..ROY,ROYG; 3GRFE..GRS182..ROYEX S PACKAGE; 3GRFE..GRS182..ROY WIRELESS DOOR LOCK-W(SMART) |
90987-02027 |
from US $44.54 |
||
|
28300D
|
28300D
90987-T2005
Relay, Water Pump
[07.2005 - 10.2007] 3GRFE..GRS182..ROYEX S PACKAGE |
90987-T2005 |
— | ||
|
28371C
|
28371C
90987-T2005
Relay, Water Pump
[02.2005 -] 3GRFE,5GRFE..GRS18# |
90987-T2005 |
— | ||
|
28380A
|
28380A
23080-31020 Resister, Fuel Pump[02.2005 -] 3GRFE,5GRFE..GRS18# |
23080-31020 |
US $54.16 |
||
|
28850
|
28850
28850-31010
Sensor Assy, Battery Current
[02.2005 - 11.2009] 3GRFE..GRS182 |
28850-31010 |
— | ||
|
28865
|
28865
28865-31010 Sensor, Battery Thermometer[02.2005 -] 3GRFE..GRS182 |
28865-31010 |
US $108.33 |
||
|
82210J
|
82210J
90982-08280 Fusible Link[02.2005 - 11.2009] GRS18# 30A,TERMINAL:FEMALE |
90982-08280 |
US $9.44 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[02.2005 - 11.2009] GRS18# 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[02.2005 - 11.2009] GRS18# 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[02.2005 - 11.2009] GRS18# 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[02.2005 - 11.2009] GRS18# 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[02.2005 - 11.2009] GRS18# 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[02.2005 - 11.2009] GRS18# 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82610A
|
82610A
82610-30140 Block Assy, FuseFUSE [02.2005 - 11.2009] GRS18# |
82610-30140 |
US $16.89 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[02.2005 - 11.2009] GRS18# |
82616-58010 |
from US $2.40 |
||
|
82620A
|
82620A
82620-30170 Block Assy, Fusible Link[02.2005 - 11.2009] GRS18# |
82620-30170 |
from US $83.05 |
||
|
82641
|
82641
82641-30250 Relay, Integration No.1[02.2005 - 11.2006] GRS18# |
82641-30250 |
US $128.76 |
||
|
82641
|
82641
82641-30270
Relay, Integration No.1
[11.2006 - 11.2009] GRS18# |
82641-30270 |
— | ||
|
82660B
|
82660B
82660-30A00 Block Assy, Relay[02.2005 - 11.2009] GRS18# |
82660-30A00 |
US $31.45 |
||
|
82660C
|
82660C
82660-30A10 Block Assy, Relay[02.2005 - 11.2009] GRS18# |
82660-30A10 |
US $21.69 |
||
|
82660D
|
82660D
82660-30A20 Block Assy, Relay[02.2005 - 11.2009] GRS18# |
82660-30A20 |
US $13.83 |
||
|
82662A
|
82662A
82662-30570 Cover, Relay Block, Upper, No.1RELAY BLOCK, UPPER, NO.1 [02.2005 - 11.2006] GRS182 |
82662-30570 |
US $21.84 |
||
|
82662A
|
82662A
82662-30690
Cover, Relay Block, Upper, No.1
[11.2006 -] GRS182 |
82662-30690 |
— | ||
|
82662B
|
82662B
82662-30640 Cover, Relay Block, Upper, No.2RELAY BLOCK, UPPER, NO.2 [02.2005 - 11.2006] GRS182 |
82662-30640 |
US $41.93 |
||
|
82662B
|
82662B
82662-30710
Cover, Relay Block, Upper, No.2
[11.2006 -] GRS182 |
82662-30710 |
— | ||
|
82662C
|
82662C
82662-30560 Cover, Relay Block, Upper, No.3[02.2005 -] GRS18#..25ROY,ROY,ROYEX,ROYG |
82662-30560 |
US $11.21 |
||
|
82662D
|
82662D
82662-30650 Cover, Relay Block, Upper, No.4[11.2006 -] GRS182 |
82662-30650 |
US $11.21 |
||
|
82663
|
82663
82663-30230 Cover, Relay Block, Lower, No.8RELAY BLOCK, LOWER, NO.8 [02.2005 - 11.2009] GRS18# |
82663-30230 |
US $48.78 |
||
|
82663A
|
82663A
82663-30210 Cover, Relay Block, Lower, No.2[02.2005 - 11.2009] GRS18# |
82663-30210 |
US $31.74 |
||
|
82663B
|
82663B
82663-30240 Cover, Relay Block Lower, No.4[02.2005 - 11.2009] GRS18# |
82663-30240 |
US $5.97 |
||
|
82663C
|
82663C
82663-30240 Cover, Relay Block Lower, No.4[02.2005 - 11.2009] GRS18# |
82663-30240 |
US $5.97 |
||
|
82666
|
82666
82666-30730 Holder, Connector[02.2005 - 11.2009] GRS18# |
82666-30730 |
US $50.67 |
||
|
82740
|
82740
82740-30340 Block Assy, Engine Room Relay[02.2005 - 11.2009] GRS18# |
82740-30340 |
US $20.38 |
||
|
82743
|
82743
82743-30040 Block, Engine Room Relay, No.3ENGINE ROOM RELAY, NO.3 [02.2005 - 11.2009] GRS18# |
82743-30040 |
US $24.90 |
||
|
82744
|
82744
82743-30050 Block, Engine Room Relay, No.3[02.2005 - 11.2009] GRS18# |
82743-30050 |
US $23.44 |
||
|
84794A
|
84794A
90987-T2005
Relay, Water Pump
[02.2005 -] GRS18# |
90987-T2005 |
— | ||
|
85912
|
85912
90987-T4002
Relay Assy (For Heater Blower Motor)
[02.2005 -] GRS18# |
90987-T4002 |
— | ||
|
85916P
|
85916P
90987-T2004
Relay, Water Pump
[02.2005 -] GRS18# |
90987-T2004 |
— | ||
|
85927
|
85927
90987-T2004
Relay, Water Pump
[02.2005 -] GRS18# |
90987-T2004 |
— | ||
|
85927A
|
85927A
90987-T2005
Relay, Water Pump
[02.2005 -] GRS18# |
90987-T2005 |
— | ||
|
85930G
|
85930G
90987-04004 Relay, Starter Cut[02.2005 - 06.2005] GRS182..ROYEX |
90987-04004 |
from US $42.71 |
||
|
85930G
|
85930G
90987-T4001
Relay Assy, Starter
[07.2005 -] GRS18#..25,25ROY,ROYEX |
90987-T4001 |
— | ||
|
85942
|
85942
85942-30020 Relay, Headlamp Cleaner Control[02.2005 - 11.2009] GRS18# |
85942-30020 |
US $145.60 |
||
| replacement | |||||
|
85942
|
85942
85942-58010 Relay, Cleaner Control[02.2005 - 11.2009] GRS18# |
85942-58010 |
from US $115.77 |
||
|
87343B
|
87343B
90987-T2004
Relay, Water Pump
[11.2006 -] GRS182 |
90987-T2004 |
— | ||
|
87343C
|
87343C
90987-T2004
Relay, Water Pump
[11.2006 -] GRS182 |
90987-T2004 |
— | ||
|
89211A
|
89211A
89211-30020 Computer, Multiplex Network Body[02.2005 -] GRS18# |
89211-30020 |
US $273.73 |
||
|
89257
|
89257
89257-30050 Computer, Cooling Fan[02.2005 - 08.2005] GRS182 |
89257-30050 |
US $305.76 |
||
|
89257
|
89257
89257-30060 Computer, Cooling Fan[08.2005 - 11.2009] GRS18# |
89257-30060 |
from US $226.08 |
||
|
89650
|
89650
89650-30630
Computer Assy, Power Steering
[02.2005 -] GRS18#..25ROY,ROY,ROYEX,ROYG |
89650-30630 |
— | ||
|
89650E
|
89650E
90987-T2004
Relay, Water Pump
[02.2005 -] GRS18# |
90987-T2004 |
— | ||
|
91553A0620
|
91553A0620
91553-A0620 New Genuine Part |
91553-A0620 |
US $0.96 |
||
|
8271530B20
|
8271530B20
82715-30B20
Bracket,wiring Harness Clamp
|
82715-30B20 |
— | ||
|
8271530E10
|
8271530E10
82715-30E10 Bracket,wiring Harness Clamp |
82715-30E10 |
US $22.13 |
||
|
9011906691
|
9011906691
90119-06691 BOLT WWASHER |
90119-06691 |
US $1.12 |
||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.66 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.70 |
||
