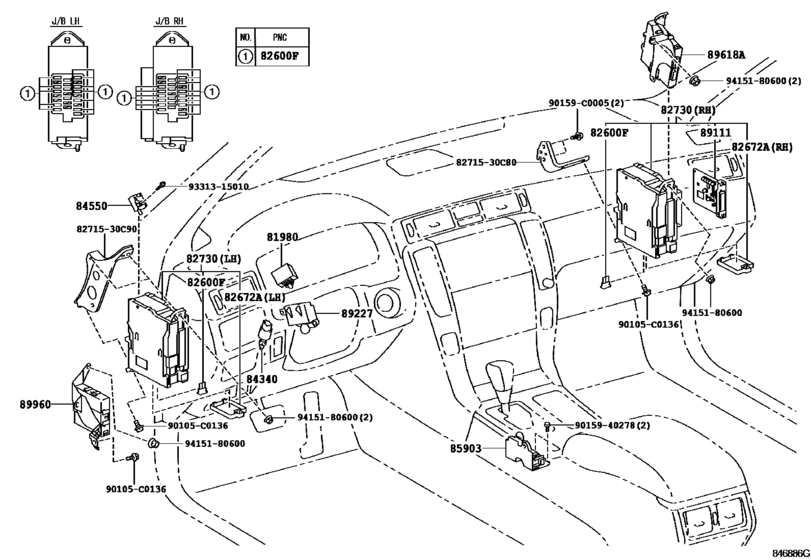

Switch & Relay & Computer ([02.2005 - ] COWL (0502- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2005 - 2009
- Sales region
- General
- Frame
- GRS182
- grade
- ROYEX
- body
- SED
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- CROWN (CHINA)
- From
- 02.2005
- To
- 11.2009
- Gear Shift Type
- 6FC
- Vehicle Model
- Crown
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-0N010
Flasher Assy, Turn Signal
[02.2005 -] GRS18# |
81980-0N010 |
— | ||
|
82600F
|
82600F
90982-09020 Fusible Link[02.2005 - 11.2009] GRS18# 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[02.2005 - 11.2009] GRS18# 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[02.2005 - 11.2009] GRS18# 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[02.2005 - 11.2009] GRS18# 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[02.2005 - 11.2009] GRS18# 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[02.2005 - 11.2009] GRS18# 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82672A
|
82672A
82672-30091 Cover, Junction BlockJUNCTION BLOCK [02.2005 - 07.2006] GRS18# RH |
82672-30091 |
US $4.80 |
||
|
82672A
|
82672A
82672-30101 Cover, Junction BlockJUNCTION BLOCK [02.2005 -] GRS18# LH |
82672-30101 |
US $4.80 |
||
|
82730
|
82730
82730-30252 Block Assy, Instrument Panel JunctionINSTRUMENT PANEL JUNCTION [02.2005 - 08.2006] GRS18# RH |
82730-30252 |
from US $319.04 |
||
|
82730
|
82730
82730-30253
Block Assy, Instrument Panel Junction
[08.2006 - 10.2007] GRS18# RH |
82730-30253 |
— | ||
|
82730
|
82730
82730-30254
Block Assy, Instrument Panel Junction
[10.2007 -] GRS18# RH |
82730-30254 |
— | ||
|
82730
|
82730
82730-30261 Block Assy, Instrument Panel JunctionINSTRUMENT PANEL JUNCTION [02.2005 -] GRS18# LH |
82730-30261 |
from US $290.45 |
||
|
84340
|
84340
84340-30110 Switch Assy, Stop Lamp[02.2005 - 11.2009] GRS18# |
84340-30110 |
from US $21.59 |
||
|
84550
|
84550
84550-30080 Switch Assy, Parking Brake[02.2005 - 11.2009] GRS18# |
84550-30080 |
from US $18.39 |
||
|
85903
|
85903
85903-30080
Computer Sub-Assy, Shift Lock Control
[02.2005 - 10.2007] GRS182..ROYEX S PACKAGE |
85903-30080 |
— | ||
|
85903
|
85903
85903-33010
Computer Sub-Assy, Shift Lock Control
[02.2005 - 11.2009] GRS18#..25,25ROY,ROYEX |
85903-33010 |
— | ||
|
89111
|
89111
89100-30010 Computer, Network Gateway[02.2005 -] GRS18# |
89100-30010 |
US $452.82 |
||
|
89227
|
89227
89227-30020 Computer, Multiplex Tilt & Telescopic[02.2005 - 11.2009] GRS18# |
89227-30020 |
US $492.13 |
||
|
89618A
|
89618A
89670-30030
Computer, Power Source Control
[02.2005 - 10.2007] GRS182..ROYEX S PACKAGE |
89670-30030 |
— | ||
|
89960
|
89960
89960-30120
Computer Assy, Headlamp Leveling
[02.2005 -] GRS18# |
89960-30120 |
— | ||
|
90105C0136
|
90105C0136
90105-C0136
New Genuine Part
|
90105-C0136 |
— | ||
|
90159C0005
|
90159C0005
90159-C0005
New Genuine Part
|
90159-C0005 |
— | ||
|
8271530C80
|
8271530C80
82715-30C80 Bracket,wiring Harness Clamp |
82715-30C80 |
US $9.46 |
||
|
8271530C90
|
8271530C90
82715-30C90 Bracket,wiring Harness Clamp |
82715-30C90 |
US $18.78 |
||
|
9015940278
|
9015940278
90159-40278 New Genuine Part |
90159-40278 |
US $0.73 |
||
|
9331315010
|
9331315010
93313-15010 SCREW |
93313-15010 |
US $1.02 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.70 |
