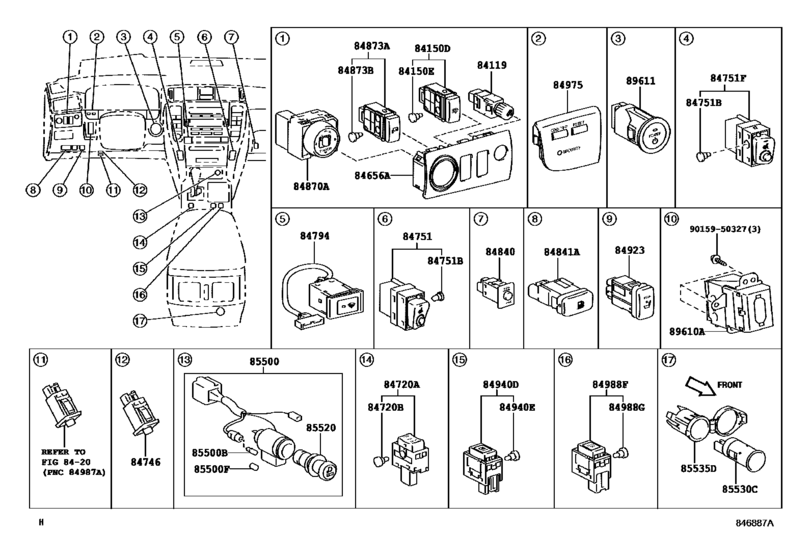

Switch & Relay & Computer ([02.2005 - ] INSTRUMENT PANEL 1/2 (0502- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2005 - 2009
- Sales region
- General
- Frame
- GRS182
- grade
- ROYEX
- body
- SED
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- CROWN (CHINA)
- From
- 02.2005
- To
- 11.2009
- Gear Shift Type
- 6FC
- Vehicle Model
- Crown
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84119
|
84119
84119-0N010
Rheostat, Light Control
[02.2005 -] GRS18# |
84119-0N010 |
— | ||
|
84150D
|
84150D
84150-0N010
Switch Assy, Headlamp Cleaner
[02.2005 -] GRS18# |
84150-0N010 |
— | ||
|
84150E
|
84150E
90011-01064
Bulb, Headlamp Cleaner Switch
[02.2005 -] GRS18# 14V 0.91W,W(CAP) |
90011-01064 |
— | ||
|
84656A
|
84656A
84656-0N010-A0
Bezel, Switch
[02.2005 - 11.2009] GRS18# IVORY,TRIM0# |
84656-0N010-A0 |
— | ||
|
84656A
|
84656A
84656-0N010-C0
Bezel, Switch
[02.2005 - 11.2009] GRS18# BLACK,TRIM2# |
84656-0N010-C0 |
— | ||
|
84720A
|
84720A
84720-0N010
Switch Assy, Pattern Select, No.1
[02.2005 -] GRS18# |
84720-0N010 |
— | ||
|
84720B
|
84720B
84999-10710 Bulb, Throttle Position Switch[02.2005 -] GRS18# 14V 0.56W |
84999-10710 |
from US $6.32 |
||
|
84746
|
84746
84746-0N010
Switch, Tire Pressure Warning
[02.2005 -] GRS18# |
84746-0N010 |
— | ||
|
84751
|
84751
84751-0N010
Switch, Seat Heater
[02.2005 - 10.2007] GRS18#..25ROY,ROYEX SEAT COVER MATERIAL-LEATHER |
84751-0N010 |
— | ||
|
84751B
|
84751B
90011-01097
Bulb, Seat Heater Switch
[02.2005 - 10.2007] GRS18#..25ROY,ROYEX 14V 1.12W,W(CAP),SEAT COVER MATERIAL-LEATHER |
90011-01097 |
— | ||
|
84751F
|
84751F
84751-0N020
Switch, Seat Heater
[02.2005 - 10.2007] GRS18#..25ROY,ROYEX SEAT COVER MATERIAL-LEATHER |
84751-0N020 |
— | ||
|
84794
|
84794
84794-0N010 Switch, Fr Wiper DeicerFR WIPER DEICER [02.2005 -] GRS18#..25,25ROY,ROY,ROYEX |
84794-0N010 |
US $41.35 |
||
|
84840
|
84840
84840-0N010
Switch Assy, Luggage Compartment Door Opening
[02.2005 -] GRS18# |
84840-0N010 |
— | ||
|
84841A
|
84841A
84841-0N010
Switch, Fuel Lid Opener
[02.2005 -] GRS18# |
84841-0N010 |
— | ||
|
84870A
|
84870A
84872-0N010
Switch Assy, Outer Mirror
[02.2005 -] GRS18# |
84872-0N010 |
— | ||
|
84873A
|
84873A
84873-0N010
Switch, Retractable Outer Mirror
[02.2005 -] GRS18# |
84873-0N010 |
— | ||
|
84873B
|
84873B
90011-01064
Bulb, Headlamp Cleaner Switch
[02.2005 -] GRS18# 14V 0.91W,W(CAP) |
90011-01064 |
— | ||
|
84975
|
84975
84975-30030 Switch, TripTRIP [02.2005 -] GRS18# |
84975-30030 |
US $50.96 |
||
|
84988F
|
84988F
84988-0N010
Switch, Traction Control
[02.2005 -] GRS18#..25ROY,ROY,ROYEX,ROYG |
84988-0N010 |
— | ||
|
84988G
|
84988G
90010-01039 Blub, Center Cluster Module Switch[02.2005 -] GRS18#..25ROY,ROY,ROYEX,ROYG 14V0.91W,W(GREEN CAP |
90010-01039 |
from US $3.43 |
||
|
85500
|
85500
85500-30530 Lighter Assy, Cigarette[02.2005 - 11.2009] GRS18# |
85500-30530 |
US $59.26 |
||
| replacement | |||||
|
85500
|
85500
85500-30510 Lighter Assy, Cigarette[02.2005 - 11.2009] GRS18# |
85500-30510 |
US $69.19 |
||
|
85500B
|
85500B
90981-11018 Bulb, Position Indicator Lamp[02.2005 -] GRS18# 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.24 |
||
|
85500F
|
85500F
84998-10510 Cap, Cigarette Lighter Bulb[02.2005 -] GRS18# |
84998-10510 |
US $3.68 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[02.2005 -] GRS18# |
85520-28010 |
from US $17.90 |
||
|
85530C
|
85530C
85530-0N010
Socket Assy, Power Outlet, No.1
[02.2005 - 11.2009] GRS18# |
85530-0N010 |
— | ||
|
85535D
|
85535D
85535-0N010
Cover, Power Outlet Socket, No.1
[02.2005 - 11.2009] GRS18# |
85535-0N010 |
— | ||
|
89610A
|
89610A
89610-0N010
Holder Assy, Electrical Key
[02.2005 - 10.2007] GRS182..ROYEX S PACKAGE |
89610-0N010 |
— | ||
| replacement | |||||
|
89610A
|
89610A
89610-0N012
Holder Assy, Electrical Key
[02.2005 - 10.2007] GRS182..ROYEX S PACKAGE |
89610-0N012 |
— | ||
|
89611
|
89611
89611-0N010
Switch, Push Start
[02.2005 - 10.2007] GRS182..ROYEX S PACKAGE |
89611-0N010 |
— | ||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.74 |
||
