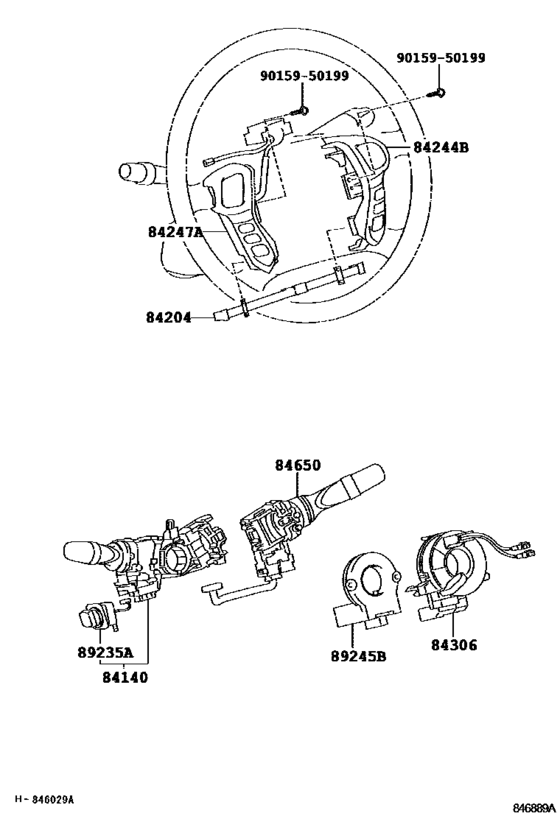

Switch & Relay & Computer ([02.2005 - ] IGNITION & COMBINATION SWITCH (0502- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2005 - 2009
- Sales region
- General
- Frame
- GRS182
- grade
- ROYEX
- body
- SED
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- CROWN (CHINA)
- From
- 02.2005
- To
- 11.2009
- Gear Shift Type
- 6FC
- Vehicle Model
- Crown
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-0N010
Switch Assy, Headlamp Dimmer
[02.2005 - 09.2008] GRS18# |
84140-0N010 |
— | ||
|
84140
|
84140
84140-0N011
Switch Assy, Headlamp Dimmer
[09.2008 -] GRS18# |
84140-0N011 |
— | ||
|
84204
|
84204
84204-58010 Cable Sub-Assy, Steering Pad Switch[02.2005 -] GRS18# |
84204-58010 |
from US $33.95 |
||
|
84244B
|
84244B
84244-30030-C1 Switch, Steering Pad, Rh[02.2005 - 11.2009] GRS18#..25,25ROY,ROYEX BLACK & GRAY,TRIM2# |
84244-30030-C1 |
US $65.81 |
||
|
84244B
|
84244B
84244-30030-E0 Switch, Steering Pad, Rh[02.2005 - 11.2009] GRS18#..25,25ROY,ROYEX ORCHID BROWN,TRIM0# |
84244-30030-E0 |
US $65.81 |
||
|
84244B
|
84244B
84244-30080-C0 Switch, Steering Pad, RhSTEERING PAD, RH [02.2005 - 10.2007] GRS182..ROY BLACK,TRIM2#; GRS182..ROYEX S PACKAGE,BLACK,TRIM2# |
84244-30080-C0 |
US $80.08 |
||
|
84244B
|
84244B
84244-30080-E0 Switch, Steering Pad, RhSTEERING PAD, RH [02.2005 - 10.2007] GRS182..ROYEX S PACKAGE,ORCHID BROWN,TRIM0# |
84244-30080-E0 |
US $80.08 |
||
|
84247A
|
84247A
84247-30010-C1 Switch, Steering Pad, Lh[02.2005 - 11.2009] GRS18#..25,25ROY,ROYEX BLACK & GRAY,TRIM2# |
84247-30010-C1 |
US $120.85 |
||
|
84247A
|
84247A
84247-30010-E0 Switch, Steering Pad, Lh[02.2005 - 11.2009] GRS18#..25,25ROY,ROY,ROYEX ORCHID BROWN,TRIM0# |
84247-30010-E0 |
US $120.85 |
||
|
84306
|
84306
84306-0N010
Cable Sub-Assy, Spiral
[02.2005 -] GRS18# |
84306-0N010 |
— | ||
| replacement | |||||
|
84306
|
84306
84306-0G020
Cable Sub-Assy, Spiral
[02.2005 -] GRS18# |
84306-0G020 |
— | ||
|
84650
|
84650
84652-0N010
Switch Assy, Windshield Wiper
[02.2005 - 11.2006] GRS18# |
84652-0N010 |
— | ||
| replacement | |||||
|
84650
|
84650
84652-0N011
Switch Assy, Windshield Wiper
[02.2005 - 11.2006] GRS18# |
84652-0N011 |
— | ||
|
84650
|
84650
84652-0N011
Switch Assy, Windshield Wiper
[12.2006 - 09.2008] GRS18# |
84652-0N011 |
— | ||
|
84650
|
84650
84652-0N012
Switch Assy, Windshield Wiper
[09.2008 -] GRS18# |
84652-0N012 |
— | ||
|
89235A
|
89235A
89235-48010 Switch, Tilt & Telescopic[02.2005 -] GRS18# |
89235-48010 |
US $40.19 |
||
|
89245B
|
89245B
89245-0N010
Sensor, Steering
[02.2005 - 11.2009] GRS18# |
89245-0N010 |
— | ||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.78 |
||
