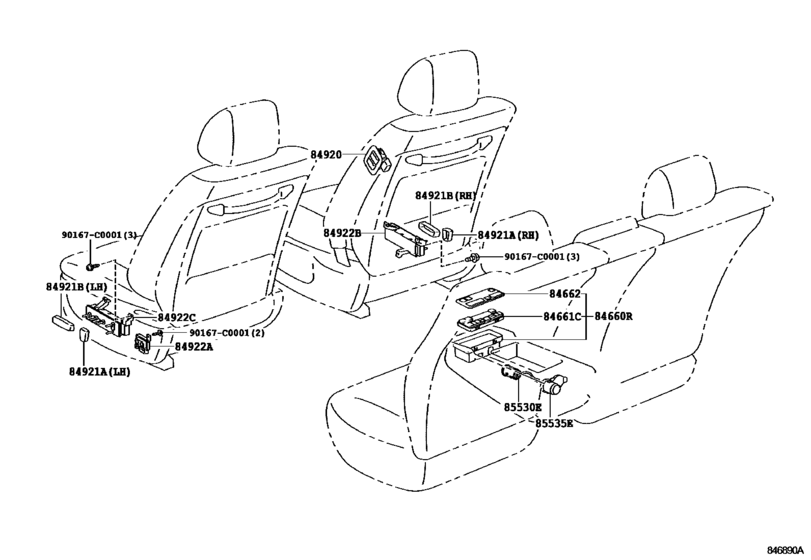

Switch & Relay & Computer ([02.2005 - ] SEAT & REAR ARM REST (0502- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2005 - 2009
- Sales region
- General
- Frame
- GRS182
- grade
- ROYEX
- body
- SED
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- CROWN (CHINA)
- From
- 02.2005
- To
- 11.2009
- Gear Shift Type
- 6FC
- Vehicle Model
- Crown
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84660R
|
84660R
84660-30280
Switch, Cooler(Rear)
[02.2005 - 10.2007] GRS18#..25ROY,ROYEX SEAT COVER MATERIAL-LEATHER |
84660-30280 |
— | ||
|
84660R
|
84660R
84660-30290
Switch, Cooler(Rear)
[02.2005 - 10.2007] GRS18#..25ROY,ROYEX |
84660-30290 |
— | ||
|
84661C
|
84661C
84661-30060
Knob, Cooler Control Switch
[02.2005 - 10.2007] GRS18#..25ROY,ROYEX SEAT COVER MATERIAL-LEATHER |
84661-30060 |
— | ||
|
84661C
|
84661C
84661-30070
Knob, Cooler Control Switch
[02.2005 - 10.2007] GRS18#..25ROY,ROYEX |
84661-30070 |
— | ||
|
84662
|
84662
84662-30060
Panel, Cooler Control Switch
[02.2005 - 10.2007] GRS18#..25ROY,ROYEX SEAT COVER MATERIAL-LEATHER |
84662-30060 |
— | ||
|
84662
|
84662
84662-30070
Panel, Cooler Control Switch
[02.2005 - 10.2007] GRS18#..25ROY,ROYEX |
84662-30070 |
— | ||
|
84920
|
84920
84920-0N010-A0
Switch Assy, Power Seat
[02.2005 - 11.2009] GRS18#..25,ROY,ROYEX,ROYG IVORY,TRIM0# |
84920-0N010-A0 |
— | ||
|
84920
|
84920
84920-0N010-C0
Switch Assy, Power Seat
[02.2005 - 11.2009] GRS18# BLACK,TRIM2# |
84920-0N010-C0 |
— | ||
|
84921A
|
84921A
84921-0N020-A0
Knob, Power Seat Switch (For Reclining)
[02.2005 - 11.2009] GRS18# IVORY,TRIM0#,LH |
84921-0N020-A0 |
— | ||
| replacement | |||||
|
84921A
|
84921A
84921-0N020-A1
Knob, Power Seat Switch (For Reclining)
[02.2005 - 11.2009] GRS18# IVORY,TRIM0#,LH |
84921-0N020-A1 |
— | ||
|
84921A
|
84921A
84921-0N020-C0
Knob, Power Seat Switch (For Reclining)
[02.2005 - 11.2009] GRS18# BLACK,TRIM2#,LH |
84921-0N020-C0 |
— | ||
| replacement | |||||
|
84921A
|
84921A
84921-0N020-E1
Knob, Power Seat Switch (For Reclining)
[02.2005 - 11.2009] GRS18# BLACK,TRIM2#,LH |
84921-0N020-E1 |
— | ||
|
84921A
|
84921A
84921-0N040-A0
Knob, Power Seat Switch (For Reclining)
[02.2005 - 11.2009] GRS18# IVORY,TRIM0#,RH |
84921-0N040-A0 |
— | ||
| replacement | |||||
|
84921A
|
84921A
84921-0N040-A1
Knob, Power Seat Switch (For Reclining)
[02.2005 - 11.2009] GRS18# IVORY,TRIM0#,RH |
84921-0N040-A1 |
— | ||
|
84921A
|
84921A
84921-0N040-C0
Knob, Power Seat Switch (For Reclining)
[02.2005 - 11.2009] GRS18# BLACK,TRIM2#,RH |
84921-0N040-C0 |
— | ||
| replacement | |||||
|
84921A
|
84921A
84921-0N040-E1
Knob, Power Seat Switch (For Reclining)
[02.2005 - 11.2009] GRS18# BLACK,TRIM2#,RH |
84921-0N040-E1 |
— | ||
|
84921B
|
84921B
84921-0N010-A0
Knob, Power Seat Switch (For Slide & Vertical)
[02.2005 - 11.2009] GRS18# IVORY,TRIM0#,LH |
84921-0N010-A0 |
— | ||
| replacement | |||||
|
84921B
|
84921B
84921-0N010-A1
Knob, Power Seat Switch (For Slide & Vertical)
[02.2005 - 11.2009] GRS18# IVORY,TRIM0#,LH |
84921-0N010-A1 |
— | ||
|
84921B
|
84921B
84921-0N010-C0
Knob, Power Seat Switch (For Slide & Vertical)
[02.2005 - 11.2009] GRS18# BLACK,TRIM2#,LH |
84921-0N010-C0 |
— | ||
| replacement | |||||
|
84921B
|
84921B
84921-0N010-E1
Knob, Power Seat Switch (For Slide & Vertical)
[02.2005 - 11.2009] GRS18# BLACK,TRIM2#,LH |
84921-0N010-E1 |
— | ||
|
84921B
|
84921B
84921-0N030-A0
Knob, Power Seat Switch (For Slide & Vertical)
[02.2005 - 11.2009] GRS18# IVORY,TRIM0#,RH |
84921-0N030-A0 |
— | ||
|
84921B
|
84921B
84921-0N030-C0
Knob, Power Seat Switch (For Slide & Vertical)
[02.2005 - 11.2009] GRS18# BLACK,TRIM2#,RH |
84921-0N030-C0 |
— | ||
|
84922A
|
84922A
84920-0N020-A0
Switch, Front Power Seat(For Lumbar)
[02.2005 - 11.2009] GRS18# IVORY,TRIM0# |
84920-0N020-A0 |
— | ||
|
84922A
|
84922A
84920-0N020-C0
Switch, Front Power Seat(For Lumbar)
[02.2005 - 11.2009] GRS18# BLACK,TRIM2# |
84920-0N020-C0 |
— | ||
|
84922B
|
84922B
84922-0N010
Switch, Front Power Seat, Rh
[02.2005 - 11.2009] GRS18# |
84922-0N010 |
— | ||
|
84922C
|
84922C
84922-0N020
Switch, Front Power Seat, Lh
[02.2005 - 11.2009] GRS18#..25,25ROY,ROYEX |
84922-0N020 |
— | ||
|
85530E
|
85530E
85530-0N020
Socket Assy, Power Outlet, Rear No.1
[02.2005 - 11.2009] GRS18# |
85530-0N020 |
— | ||
|
85535E
|
85535E
85535-0N010
Cover, Power Outlet Socket, No.1
[02.2005 - 11.2009] GRS18# |
85535-0N010 |
— | ||
|
90167C0001
|
90167C0001
90167-C0001
New Genuine Part
|
90167-C0001 |
— | ||
