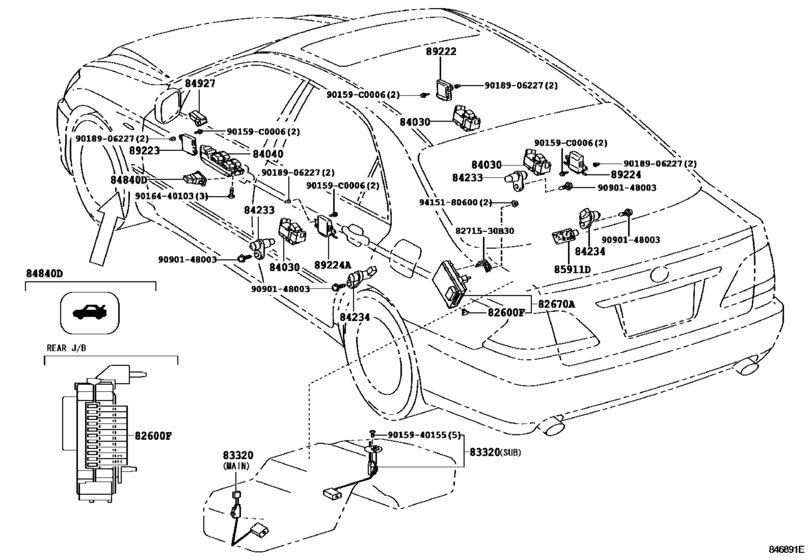

Switch & Relay & Computer ([02.2005 - ] DOOR,ROOF,FLOOR & LUGGAGE (0502- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2005 - 2009
- Sales region
- General
- Frame
- GRS182
- grade
- ROYEX
- body
- SED
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- CROWN (CHINA)
- From
- 02.2005
- To
- 11.2009
- Gear Shift Type
- 6FC
- Vehicle Model
- Crown
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82600F
|
82600F
90982-09020 Fusible Link[02.2005 - 11.2009] GRS18# 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[02.2005 - 11.2009] GRS18# 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[02.2005 - 11.2009] GRS18# 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[02.2005 - 11.2009] GRS18# 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[02.2005 - 11.2009] GRS18# 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[02.2005 - 11.2009] GRS18# 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82670A
|
82670A
82670-30220 Block Assy, Junction, No.1JUNCTION, NO.1 [02.2005 -] GRS18# |
82670-30220 |
US $576.58 |
||
|
83320
|
83320
83320-09100
Gage Assy, Fuel Sender
[02.2005 - 11.2009] GRS18# SUB |
83320-09100 |
— | ||
|
83320
|
83320
83320-0N010
Gage Assy, Fuel Sender
[02.2005 - 11.2009] GRS18# MAIN |
83320-0N010 |
— | ||
|
84030
|
84030
84030-0N010
Switch Assy,multiplex Network
[02.2005 - 02.2008] GRS18# |
84030-0N010 |
— | ||
| replacement | |||||
|
84030
|
84030
84030-0N011
Switch Assy,multiplex Network
[02.2005 - 02.2008] GRS18# |
84030-0N011 |
— | ||
|
84030
|
84030
84030-0N011
Switch Assy,multiplex Network
[03.2008 - 11.2009] GRS18# |
84030-0N011 |
— | ||
|
84040
|
84040
84040-0N010
Master Switch Assy,multiplex Network
[02.2005 - 02.2008] GRS18# |
84040-0N010 |
— | ||
| replacement | |||||
|
84040
|
84040
84040-0N011
Master Switch Assy,multiplex Network
[02.2005 - 02.2008] GRS18# |
84040-0N011 |
— | ||
|
84040
|
84040
84040-0N011
Master Switch Assy,multiplex Network
[03.2008 - 11.2009] GRS18# |
84040-0N011 |
— | ||
|
84233
|
84233
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[02.2005 -] GRS18# |
84231-53010 |
from US $10.56 |
||
|
84234
|
84234
84231-60070 Switch, Courtesy Lamp[02.2005 -] GRS18# |
84231-60070 |
from US $10.56 |
||
|
84840D
|
84840D
84840-0N020-A0
Switch Assy, Luggage Door Opening
[02.2005 - 11.2009] GRS18# IVORY,TRIM0# |
84840-0N020-A0 |
— | ||
|
84840D
|
84840D
84840-0N020-C0
Switch Assy, Luggage Compartment Door Opening
[02.2005 - 11.2009] GRS18# BLACK,TRIM2# |
84840-0N020-C0 |
— | ||
|
89222
|
89222
89222-0N010
Computer, Multiplex Network Door, Front Rh
[02.2005 -] GRS18#..25,25ROY,ROYEX |
89222-0N010 |
— | ||
|
89222
|
89222
89222-0N020
Computer, Multiplex Network Door, Front Rh
[02.2005 - 10.2007] GRS182..ROYEX S PACKAGE&WIRELESS DOOR LOCK-W(SMART) |
89222-0N020 |
— | ||
|
89223
|
89223
89222-0N010
Computer, Multiplex Network Door, Front Rh
[02.2005 -] GRS18#..25,25ROY,ROYEX |
89222-0N010 |
— | ||
|
89223
|
89223
89222-0N020
Computer, Multiplex Network Door, Front Rh
[02.2005 - 10.2007] GRS182..ROYEX S PACKAGE&WIRELESS DOOR LOCK-W(SMART) |
89222-0N020 |
— | ||
|
89224
|
89224
89224-0N010
Computer, Multiplex Network Door, Rear Rh
[02.2005 -] GRS18# |
89224-0N010 |
— | ||
|
89224A
|
89224A
89224-0N010
Computer, Multiplex Network Door, Rear Rh
[02.2005 -] GRS18# |
89224-0N010 |
— | ||
|
90159C0006
|
90159C0006
90159-C0006
New Genuine Part
|
90159-C0006 |
— | ||
|
8271530B30
|
8271530B30
82715-30B30 Bracket,wiring Harness Clamp |
82715-30B30 |
US $4.80 |
||
|
9015940155
|
9015940155
90159-40155 SCREW WWASHER |
90159-40155 |
US $1.92 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
from US $0.84 |
||
|
9018906227
|
9018906227
90189-06227 GROMMET SCREW |
90189-06227 |
from US $0.68 |
||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.76 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.70 |
||
