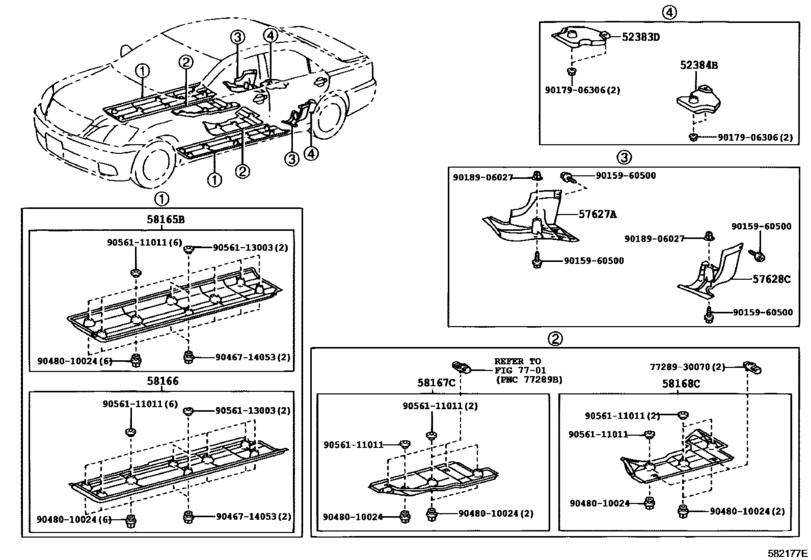

Floor Pan & Lower Back Panel ([11.2004 - ] FLOOR UNDER COVER (0411- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2004 - 2008
- Sales region
- General
- Frame
- GRS182
- grade
- ROY
- body
- SED
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 11.2004
- To
- 02.2008
- Gear Shift Type
- 6FC
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52383D
|
52383D
52383-30010 Protector, Differential Support, No.1[11.2004 - 09.2005] GRS182 |
52383-30010 |
US $62.32 |
||
| replacement | |||||
|
52383D
|
52383D
52383-30011 Protector, Differential Support, No.1[11.2004 - 09.2005] GRS182 |
52383-30011 |
US $58.37 |
||
|
52383D
|
52383D
52383-30011 Protector, Differential Support, No.1[01.2008 - 02.2008] GRS182 |
52383-30011 |
US $58.37 |
||
|
52384B
|
52384B
52384-30010 Protector, Differential Support, No.2[11.2004 - 09.2005] GRS182 |
52384-30010 |
US $63.48 |
||
| replacement | |||||
|
52384B
|
52384B
52384-30011 Protector, Differential Support, No.2[11.2004 - 09.2005] GRS182 |
52384-30011 |
US $45.95 |
||
|
52384B
|
52384B
52384-30011 Protector, Differential Support, No.2[01.2008 - 02.2008] GRS182 |
52384-30011 |
US $45.95 |
||
|
57627A
|
57627A
57627-30030 Cover, Rear Floor Side Member, Rh[11.2004 - 09.2005] GRS182 |
57627-30030 |
US $32.61 |
||
| replacement | |||||
|
57627A
|
57627A
57627-30031 Cover, Rear Floor Side Member, Rh[11.2004 - 09.2005] GRS182 |
57627-30031 |
US $24.11 |
||
|
57628C
|
57628C
57628-30030 Cover, Rear Floor Side Member, Lh[11.2004 - 09.2005] GRS182 |
57628-30030 |
US $32.61 |
||
| replacement | |||||
|
57628C
|
57628C
57628-30031 Cover, Rear Floor Side Member, Lh[11.2004 - 09.2005] GRS182 |
57628-30031 |
US $24.61 |
||
|
58165B
|
58165B
58165-30060 Cover, Front Floor, Rh[11.2004 - 09.2005] GRS182 |
58165-30060 |
US $138.32 |
||
| replacement | |||||
|
58165B
|
58165B
58165-30061 Cover, Front Floor, Rh[11.2004 - 09.2005] GRS182 |
58165-30061 |
US $149.76 |
||
|
58166
|
58166
58166-30030 Cover, Front Floor, Lh[11.2004 - 09.2005] GRS182 |
58166-30030 |
US $138.32 |
||
| replacement | |||||
|
58166
|
58166
58166-30031 Cover, Front Floor, Lh[11.2004 - 09.2005] GRS182 |
58166-30031 |
US $149.76 |
||
|
58167C
|
58167C
58167-30021 Cover, Front Floor, Center Rh[11.2004 - 09.2005] GRS182 |
58167-30021 |
US $65.52 |
||
| replacement | |||||
|
58167C
|
58167C
58167-30051 Cover, Front Floor, Center RhFRONT FLOOR, CENTER RH [11.2004 - 09.2005] GRS182 |
58167-30051 |
from US $45.43 |
||
|
58167C
|
58167C
58167-30052 Cover, Front Floor, Center Rh[09.2005 - 02.2008] GRS182 |
58167-30052 |
US $61.56 |
||
|
58168C
|
58168C
58168-30021 Cover, Front Floor, Center Lh[11.2004 - 09.2005] GRS182 |
58168-30021 |
US $89.62 |
||
|
58168C
|
58168C
58168-30052 Cover, Front Floor, Center Lh[09.2005 - 02.2008] GRS182 |
58168-30052 |
US $72.50 |
||
|
7728930070
|
7728930070
77289-30070 Clamp, Fuel Tube, No.1 |
77289-30070 |
from US $7.52 |
||
|
9015960500
|
9015960500
90159-60500 SCREW WWASHER |
90159-60500 |
from US $0.74 |
||
|
9017906306
|
9017906306
90179-06306 NUT |
90179-06306 |
US $1.92 |
||
|
9018906027
|
9018906027
90189-06027 Grommet |
90189-06027 |
from US $0.74 |
||
|
9046714053
|
9046714053
90467-14053 Clip, No.1(For Floor Under Cover) |
90467-14053 |
from US $1.19 |
||
|
9048010024
|
9048010024
90480-10024 Clip, No.2(For Floor Under Cover) |
90480-10024 |
from US $1.60 |
||
|
9056111011
|
9056111011
90561-11011 Clip, No.1(For Floor Under Cover) |
90561-11011 |
from US $1.12 |
||
|
9056113003
|
9056113003
90561-13003 Clip, No.4(For Floor Under Cover) |
90561-13003 |
US $1.12 |
||
