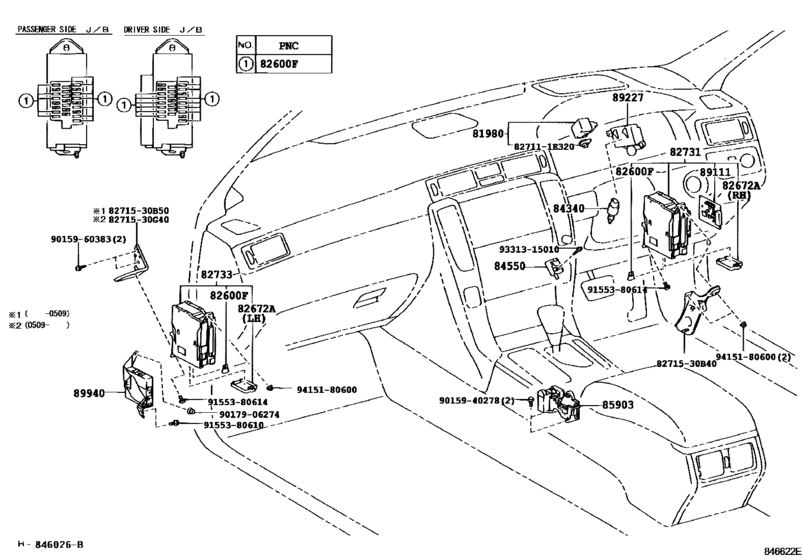

Switch & Relay & Computer ([11.2004 - ] COWL (0411- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2004 - 2008
- Sales region
- General
- Frame
- GRS182
- grade
- ROY
- body
- SED
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 11.2004
- To
- 02.2008
- Gear Shift Type
- 6FC
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-30170 Flasher Assy, Turn Signal[11.2004 - 09.2005] GRS182 |
81980-30170 |
from US $52.59 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[11.2004 - 09.2005] GRS182 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[11.2004 - 09.2005] GRS182 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[11.2004 - 09.2005] GRS182 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[11.2004 - 09.2005] GRS182 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[11.2004 - 09.2005] GRS182 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[11.2004 - 09.2005] GRS182 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82672A
|
82672A
82672-30070 Cover, Junction Block[11.2004 - 09.2005] GRS182 RH |
82672-30070 |
US $5.82 |
||
|
82672A
|
82672A
82672-30080 Cover, Junction Block[11.2004 - 09.2005] GRS182 LH |
82672-30080 |
US $5.59 |
||
|
82731
|
82731
82730-30150 Block, Driver Side JunctionDRIVER SIDE JUNCTION [11.2004 - 09.2005] GRS182 HONG KONG SPEC |
82730-30150 |
US $1,185.18 |
||
|
82731
|
82731
82730-30220 Block, Driver Side JunctionDRIVER SIDE JUNCTION [11.2004 - 09.2005] GRS182 SINGAPORE SPEC |
82730-30220 |
US $1,185.18 |
||
|
82731
|
82731
82730-30230 Block, Driver Side JunctionDRIVER SIDE JUNCTION [11.2004 - 09.2005] GRS182 |
82730-30230 |
US $1,185.18 |
||
|
82731
|
82731
82730-30240 Block, Driver Side JunctionDRIVER SIDE JUNCTION [11.2004 - 09.2005] GRS182 INDONESIA SPEC |
82730-30240 |
US $1,185.18 |
||
|
82731
|
82731
82730-30860
Block, Driver Side Junction
[09.2005 - 02.2008] GRS182 |
82730-30860 |
— | ||
|
82733
|
82733
82730-30140 Block, Passenger Side Junction[11.2004 - 09.2005] GRS182 |
82730-30140 |
US $773.14 |
||
| replacement | |||||
|
82733
|
82733
82730-30141 Block, Passenger Side Junction[11.2004 - 09.2005] GRS182 |
82730-30141 |
US $812.45 |
||
|
82733
|
82733
82730-30141 Block, Passenger Side Junction[02.2007 - 02.2008] GRS182 |
82730-30141 |
US $812.45 |
||
|
84340
|
84340
84340-30110 Switch Assy, Stop Lamp[11.2004 - 09.2005] GRS182 |
84340-30110 |
from US $28.12 |
||
|
84550
|
84550
84550-30080 Switch Assy, Parking Brake[11.2004 - 09.2005] GRS182 |
84550-30080 |
from US $18.39 |
||
|
85903
|
85903
85903-30050 Computer Sub-Assy, Shift Lock Control[11.2004 - 09.2005] GRS182 |
85903-30050 |
US $116.48 |
||
|
89111
|
89111
89100-30010 Computer, Network Gateway[11.2004 - 09.2005] GRS182 |
89100-30010 |
US $452.82 |
||
|
89111
|
89111
89100-30070 Computer, Network Gateway[09.2005 - 02.2008] GRS182 |
89100-30070 |
US $589.68 |
||
|
89227
|
89227
89227-30020 Computer, Multiplex Tilt & Telescopic[11.2004 - 09.2005] GRS182 |
89227-30020 |
from US $492.13 |
||
|
89940
|
89940
89960-30090 Computer Assy, Headlamp Swivel[11.2004 - 09.2005] GRS182 |
89960-30090 |
US $358.18 |
||
|
827111E320
|
827111E320
82711-1E320 Clamp, Wiring Harness |
82711-1E320 |
US $1.12 |
||
|
8271530B40
|
8271530B40
82715-30B40 Bracket,wiring Harness Clamp |
82715-30B40 |
US $21.55 |
||
|
8271530B50
|
8271530B50
82715-30B50 Bracket,wiring Harness Clamp |
82715-30B50 |
US $8.30 |
||
|
8271530G40
|
8271530G40
82715-30G40 Bracket,wiring Harness Clamp |
82715-30G40 |
US $13.98 |
||
|
9015940278
|
9015940278
90159-40278 New Genuine Part |
90159-40278 |
US $0.73 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
| replacement | |||||
|
9015960383
|
9015960383
90159-A0010 SCREW WWASHER TAPP |
90159-A0010 |
from US $2.44 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9155380610
|
9155380610
91553-80610 BOLT FLANGE |
91553-80610 |
US $0.96 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $0.96 |
||
|
9331315010
|
9331315010
93313-15010 SCREW |
93313-15010 |
US $1.02 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.74 |
||
