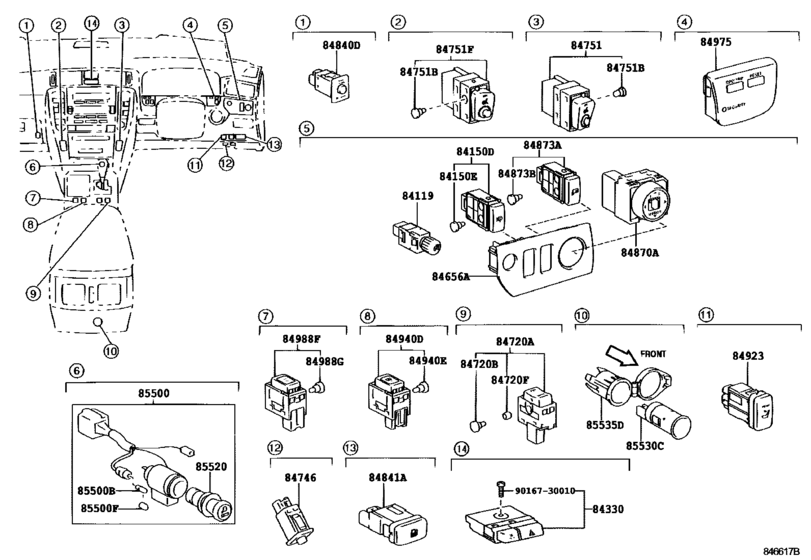

Switch & Relay & Computer ([11.2004 - ] INSTRUMENT PANEL 1/2 (0411- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2004 - 2008
- Sales region
- General
- Frame
- GRS182
- grade
- ROY
- body
- SED
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 11.2004
- To
- 02.2008
- Gear Shift Type
- 6FC
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84119
|
84119
84119-30230 Rheostat, Light Control[11.2004 - 09.2005] GRS182 |
84119-30230 |
US $110.66 |
||
|
84150D
|
84150D
84150-30010 Switch Assy, Headlamp Cleaner[11.2004 - 09.2005] GRS182 |
84150-30010 |
from US $47.76 |
||
|
84150E
|
84150E
90010-01096 Bulb, Retractable Outer Mirror Switch[11.2004 - 09.2005] GRS182 14V 0.91W,W(CAP) |
90010-01096 |
from US $4.23 |
||
|
84330
|
84330
55936-30040 Switch Assy, Hazard Warning Signal[11.2004 - 09.2005] GRS182 |
55936-30040 |
US $84.36 |
||
|
84656A
|
84656A
84656-30100-A0 Bezel, Switch[11.2004 - 09.2005] GRS182 NEW IVORY,TRIM0# |
84656-30100-A0 |
US $19.95 |
||
| replacement | |||||
|
84656A
|
84656A
84656-30100-C0 Bezel, Switch[11.2004 - 09.2005] GRS182 NEW IVORY,TRIM0# |
84656-30100-C0 |
US $19.95 |
||
|
84656A
|
84656A
84656-30100-B0 Bezel, SwitchSWITCH [11.2004 - 09.2005] GRS182 GRAY,TRIM1# |
84656-30100-B0 |
US $19.95 |
||
| replacement | |||||
|
84656A
|
84656A
84656-30100-C0 Bezel, Switch[11.2004 - 09.2005] GRS182 GRAY,TRIM1# |
84656-30100-C0 |
US $19.95 |
||
|
84656A
|
84656A
84656-30100-B1 Bezel, Switch[09.2005 - 02.2008] GRS182 GRAY,TRIM1# |
84656-30100-B1 |
US $19.95 |
||
| replacement | |||||
|
84656A
|
84656A
84656-30100-C0 Bezel, Switch[09.2005 - 02.2008] GRS182 GRAY,TRIM1# |
84656-30100-C0 |
US $19.95 |
||
|
84720A
|
84720A
84720-22190 Switch Assy, Pattern Select[11.2004 - 09.2005] GRS182 |
84720-22190 |
US $47.76 |
||
|
84720B
|
84720B
84999-10710 Bulb, Throttle Position Switch[11.2004 - 09.2005] GRS182 14V 0.56W |
84999-10710 |
from US $6.40 |
||
|
84720F
|
84720F
84998-10670 Cap, Throttle Position Switch Bulb[11.2004 - 09.2005] GRS182 |
84998-10670 |
US $3.68 |
||
|
84746
|
84746
84746-50010 Switch, Tire Pressure Warning[11.2004 - 09.2005] GRS182 |
84746-50010 |
US $32.85 |
||
|
84751
|
84751
84751-30141 Switch, Seat Heater[11.2004 - 09.2005] GRS182 SEAT COVER MATERIAL-LEATHER |
84751-30141 |
US $145.60 |
||
|
84751B
|
84751B
90010-01097 Bulb, Air Conditioner Control[11.2004 - 09.2005] GRS182 14V 1.12W,W(CAP),SEAT COVER MATERIAL-LEATHER |
90010-01097 |
US $8.32 |
||
|
84751F
|
84751F
84751-30151 Switch, Seat Heater[11.2004 - 09.2005] GRS182 SEAT COVER MATERIAL-LEATHER |
84751-30151 |
US $145.60 |
||
|
84840D
|
84840D
84840-24020 Switch Assy, Luggage Door Opening, Cancel[11.2004 - 09.2005] GRS182 |
84840-24020 |
US $30.23 |
||
|
84841A
|
84841A
84841-48010 Switch, Fuel Lid Opener[11.2004 - 09.2005] GRS182 |
84841-48010 |
US $31.16 |
||
|
84870A
|
84870A
84872-30030 Switch Assy, Outer Mirror[11.2004 - 09.2005] GRS182 |
84872-30030 |
US $50.67 |
||
|
84873A
|
84873A
84873-30010 Switch, Retractable Outer Mirror[11.2004 - 09.2005] GRS182 |
84873-30010 |
US $63.34 |
||
|
84873B
|
84873B
90010-01096 Bulb, Retractable Outer Mirror Switch[09.2005 - 02.2008] GRS182 14V 0.91W,W(CAP) |
90010-01096 |
from US $4.23 |
||
|
84923
|
84923
84923-30160 Switch, Rear Power Seat[11.2004 - 09.2005] GRS182 W(REAR AIR CONDITIONER)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE) |
84923-30160 |
US $49.65 |
||
|
84940D
|
84940D
84940-30020 Switch Assy, Rear Sun Shade[11.2004 - 09.2005] GRS182 SUN SHADE-WITH(REAR); GRS182 SUN SHADE-WITH(REAR,DOOR) |
84940-30020 |
US $57.37 |
||
|
84940E
|
84940E
90010-01039 Blub, Center Cluster Module Switch[11.2004 - 09.2005] GRS182 14V0.91W,W(GREEN CAP,SUN SHADE-WITH(REAR); GRS182 14V0.91W,W(GREEN CAP,SUN SHADE-WITH(REAR,DOOR) |
90010-01039 |
from US $3.43 |
||
|
84975
|
84975
84975-30020 Switch, Trip[11.2004 - 09.2005] GRS182 |
84975-30020 |
US $50.96 |
||
|
84988F
|
84988F
84988-30090 Switch, Traction Control[11.2004 - 09.2005] GRS182 |
84988-30090 |
US $47.76 |
||
|
84988G
|
84988G
90010-01039 Blub, Center Cluster Module Switch[11.2004 - 09.2005] GRS182 14V0.91W,W(GREEN CAP |
90010-01039 |
from US $3.43 |
||
|
85500
|
85500
85500-30510 Lighter Assy, Cigarette[11.2004 - 09.2005] GRS182 |
85500-30510 |
US $69.19 |
||
|
85500B
|
85500B
90981-11018 Bulb, Position Indicator Lamp[11.2004 - 09.2005] GRS182 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.07 |
||
|
85500F
|
85500F
84998-10510 Cap, Cigarette Lighter Bulb[11.2004 - 09.2005] GRS182 |
84998-10510 |
US $3.68 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[11.2004 - 09.2005] GRS182 |
85520-28010 |
from US $17.90 |
||
|
85530C
|
85530C
85530-42010 Socket Assy, Power Outlet, No.1[11.2004 - 09.2005] GRS182 |
85530-42010 |
from US $26.60 |
||
|
85535D
|
85535D
85535-30020 Cover, Power Outlet Socket, No.1[11.2004 - 09.2005] GRS182 |
85535-30020 |
from US $6.08 |
||
|
9016730010
|
9016730010
90167-30010 SCREW PAN TAPPING |
90167-30010 |
US $0.96 |
||
