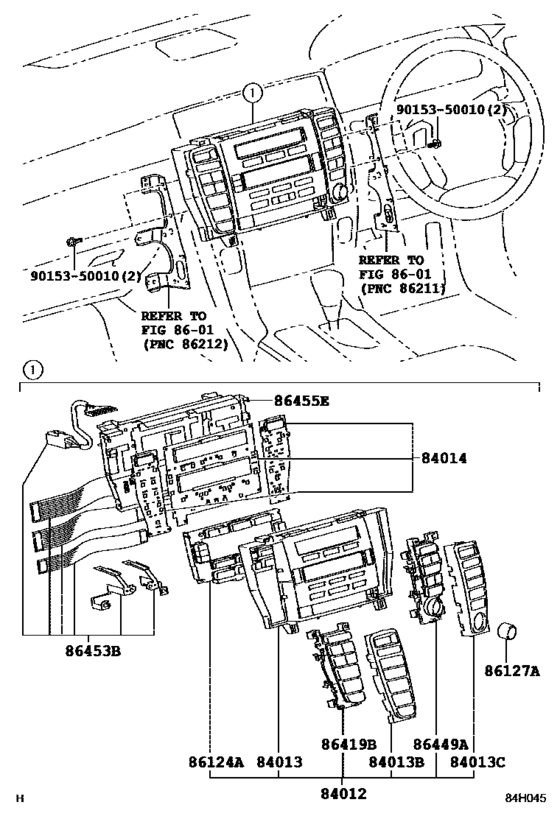

Switch & Relay & Computer ([11.2004 - ] INSTRUMENT PANEL 2/2 (0411- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2004 - 2008
- Sales region
- General
- Frame
- GRS182
- grade
- ROY
- body
- SED
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 11.2004
- To
- 02.2008
- Gear Shift Type
- 6FC
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84012
|
84012
84012-30110
Control & Panel Sub-Assy, Integration
[11.2004 - 09.2005] GRS182 W(REAR AIR CONDITIONER)&REAR AIR CONDITIONER-WITH(AIR PURIFIRE & COOL BOX) |
84012-30110 |
— | ||
|
84012
|
84012
84012-30120
Control & Panel Sub-Assy, Integration
[11.2004 - 09.2005] GRS182 |
84012-30120 |
— | ||
|
84013
|
84013
84013-30040 Panel Sub-Assy, Integration[11.2004 - 09.2005] GRS182 |
84013-30040 |
US $139.78 |
||
|
84013B
|
84013B
84013-30050 Panel Sub-Assy, Integration, No.2[11.2004 - 09.2005] GRS182 |
84013-30050 |
US $113.57 |
||
|
84013C
|
84013C
84013-30060 Panel Sub-Assy, Integration, No.3[11.2004 - 09.2005] GRS182 |
84013-30060 |
US $113.57 |
||
|
84014
|
84014
84014-30010 Board Sub-Assy, Printed Wire Integration[11.2004 - 09.2005] GRS182 W(REAR AIR CONDITIONER)&REAR AIR CONDITIONER-WITH(AIR PURIFIRE & COOL BOX) |
84014-30010 |
US $1,413.78 |
||
|
84014
|
84014
84014-30020 Board Sub-Assy, Printed Wire Integration[11.2004 - 09.2005] GRS182 |
84014-30020 |
US $1,177.90 |
||
|
86124A
|
86124A
86124-30080
Knob, Radio Receiver Tone Control
[11.2004 - 09.2005] GRS182 W(REAR AIR CONDITIONER)&REAR AIR CONDITIONER-WITH(AIR PURIFIRE & COOL BOX) |
86124-30080 |
— | ||
|
86124A
|
86124A
86124-30090
Knob, Radio Receiver Tone Control
[11.2004 - 09.2005] GRS182 |
86124-30090 |
— | ||
|
86127A
|
86127A
86127-30070 Knob,radio Receiver, No.1[11.2004 - 09.2005] GRS182 |
86127-30070 |
US $15.72 |
||
|
86419B
|
86419B
86419-30020
Knob, Audio Module
[11.2004 - 09.2005] GRS182 |
86419-30020 |
— | ||
|
86449A
|
86449A
86449-30010 Knob,heater Control Module[11.2004 - 09.2005] GRS182 W(REAR AIR CONDITIONER)&REAR AIR CONDITIONER-WITH(AIR PURIFIRE & COOL BOX) |
86449-30010 |
US $144.14 |
||
|
86449A
|
86449A
86449-30020 Knob,heater Control Module[11.2004 - 09.2005] GRS182 |
86449-30020 |
US $119.39 |
||
|
86453B
|
86453B
86453-30020 Wire, Multi-Media Module[11.2004 - 09.2005] GRS182 |
86453-30020 |
US $56.20 |
||
|
86455E
|
86455E
86455-30010 Case, Multi-Media Module[11.2004 - 09.2005] GRS182 |
86455-30010 |
US $65.81 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.74 |
