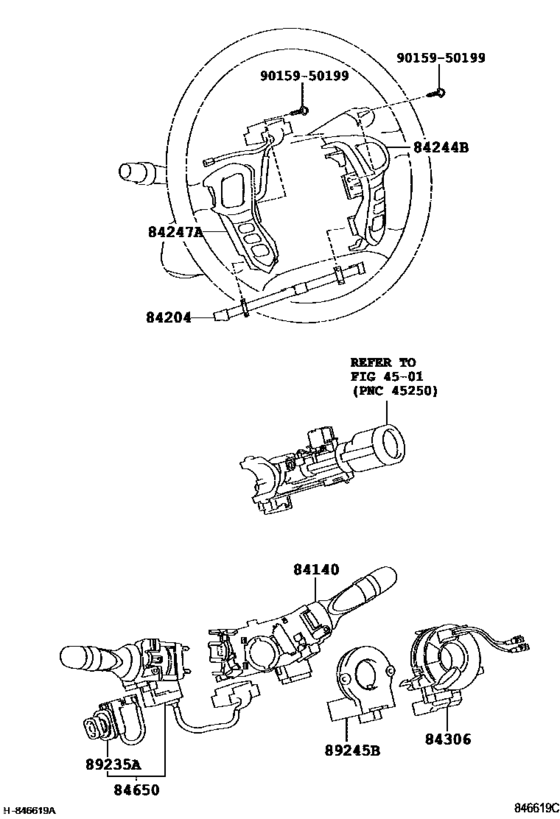

Switch & Relay & Computer ([11.2004 - ] IGNITION & COMBINATION SWITCH (0411- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2004 - 2008
- Sales region
- General
- Frame
- GRS182
- grade
- ROY
- body
- SED
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 11.2004
- To
- 02.2008
- Gear Shift Type
- 6FC
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-30290 Switch Assy, Headlamp Dimmer[09.2005 - 02.2008] GRS182 |
84140-30290 |
US $133.43 |
||
|
84140
|
84140
84140-48060 Switch Assy, Headlamp Dimmer[11.2004 - 09.2005] GRS182 |
84140-48060 |
US $186.37 |
||
|
84204
|
84204
84204-58010 Cable Sub-Assy, Steering Pad Switch[11.2004 - 09.2005] GRS182 |
84204-58010 |
from US $36.39 |
||
|
84244B
|
84244B
84244-30030-C1 Switch, Steering Pad, Rh[11.2004 - 09.2005] GRS182 BLACK & GRAY,TRIM1# |
84244-30030-C1 |
US $65.81 |
||
|
84244B
|
84244B
84244-30030-E0 Switch, Steering Pad, Rh[11.2004 - 09.2005] GRS182 ORCHID BROWN,TRIM0# |
84244-30030-E0 |
from US $65.81 |
||
|
84247A
|
84247A
84247-30010-C1 Switch, Steering Pad, Lh[11.2004 - 09.2005] GRS182 BLACK & GRAY,TRIM1# |
84247-30010-C1 |
US $120.85 |
||
|
84247A
|
84247A
84247-30010-E0 Switch, Steering Pad, Lh[11.2004 - 09.2005] GRS182 ORCHID BROWN,TRIM0# |
84247-30010-E0 |
from US $120.85 |
||
|
84306
|
84306
84306-48030
Cable Sub-Assy, Spiral
[11.2004 - 09.2005] GRS182 |
84306-48030 |
— | ||
| replacement | |||||
|
84306
|
84306
84306-48031 CABLE SUBASSY[11.2004 - 09.2005] GRS182 |
84306-48031 |
from US $154.19 |
||
|
84650
|
84650
84652-30510 Switch Assy, Windshield Wiper[11.2004 - 09.2005] GRS182 |
84652-30510 |
US $186.37 |
||
| replacement | |||||
|
84650
|
84650
84652-30581 Switch Assy, Windshield Wiper[11.2004 - 09.2005] GRS182 |
84652-30581 |
US $120.85 |
||
|
84650
|
84650
84652-30580 Switch Assy, Windshield Wiper[09.2005 - 02.2008] GRS182 |
84652-30580 |
US $120.85 |
||
| replacement | |||||
|
84650
|
84650
84652-30581 Switch Assy, Windshield Wiper[09.2005 - 02.2008] GRS182 |
84652-30581 |
US $120.85 |
||
|
89235A
|
89235A
89235-48010 Switch, Tilt & Telescopic[11.2004 - 09.2005] GRS182 |
89235-48010 |
US $40.19 |
||
|
89245B
|
89245B
89245-30080 Sensor, Steering[11.2004 - 09.2005] GRS182 |
89245-30080 |
from US $217.85 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.78 |
||
