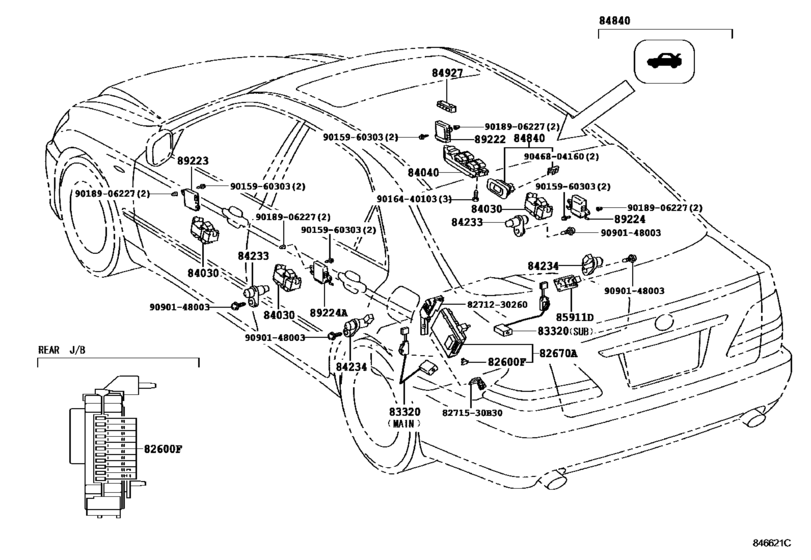

Switch & Relay & Computer ([11.2004 - ] DOOR,ROOF,FLOOR & LUGGAGE (0411- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2004 - 2008
- Sales region
- General
- Frame
- GRS182
- grade
- ROY
- body
- SED
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 11.2004
- To
- 02.2008
- Gear Shift Type
- 6FC
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82600F
|
82600F
90982-09020 Fusible Link[11.2004 - 09.2005] GRS182 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[11.2004 - 09.2005] GRS182 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[11.2004 - 09.2005] GRS182 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[11.2004 - 09.2005] GRS182 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[11.2004 - 09.2005] GRS182 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[11.2004 - 09.2005] GRS182 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82670A
|
82670A
82670-30240 Block Assy, Junction, No.1[11.2004 - 09.2005] GRS182 |
82670-30240 |
US $693.06 |
||
|
82670A
|
82670A
82670-30280
Block Assy, Junction, No.1
[09.2005 - 02.2008] GRS182 |
82670-30280 |
— | ||
|
83320
|
83320
83320-30530 Gage Assy, Fuel Sender[11.2004 - 09.2005] GRS182 MAIN |
83320-30530 |
from US $55.02 |
||
|
83320
|
83320
83320-30540 Gage Assy, Fuel Sender[11.2004 - 09.2005] GRS182 SUB |
83320-30540 |
from US $55.02 |
||
|
84030
|
84030
84030-30080
Switch Assy,multiplex Network
[11.2004 - 09.2005] GRS182 |
84030-30080 |
— | ||
| replacement | |||||
|
84030
|
84030
84030-30070 Switch Assy,multiplex Network[11.2004 - 09.2005] GRS182 |
84030-30070 |
US $224.22 |
||
|
84040
|
84040
84040-30100 Master Switch Assy,multiplex Network[11.2004 - 09.2005] GRS182 |
84040-30100 |
US $445.54 |
||
|
84233
|
84233
84231-50190 Switch Assy, Courtesy Lamp (For Front Door)[12.2007 - 02.2008] GRS182 |
84231-50190 |
from US $10.56 |
||
|
84233
|
84233
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[11.2004 - 09.2005] GRS182 |
84231-53010 |
from US $10.56 |
||
|
84234
|
84234
84231-60070 Switch, Courtesy Lamp[11.2004 - 09.2005] GRS182 |
84231-60070 |
from US $10.56 |
||
|
84840
|
84840
84840-30140-A1 Switch Assy, Luggage Compartment Door Opening[11.2004 - 09.2005] GRS182 IVORY,TRIM0# |
84840-30140-A1 |
US $49.65 |
||
| replacement | |||||
|
84840
|
84840
84840-30140-C0 Switch Assy, Luggage Compartment Door Opening[11.2004 - 09.2005] GRS182 IVORY,TRIM0# |
84840-30140-C0 |
US $46.51 |
||
|
84840
|
84840
84840-30140-B5 Switch Assy, Luggage Compartment Door Opening[11.2004 - 09.2005] GRS182 GRAY,TRIM1# |
84840-30140-B5 |
US $49.65 |
||
| replacement | |||||
|
84840
|
84840
84840-30140-C0 Switch Assy, Luggage Compartment Door Opening[11.2004 - 09.2005] GRS182 GRAY,TRIM1# |
84840-30140-C0 |
US $46.51 |
||
|
84840
|
84840
84840-30140-B6 Switch Assy, Luggage Compartment Door Opening[09.2005 - 02.2008] GRS182 GRAY,TRIM1# |
84840-30140-B6 |
US $41.35 |
||
|
84927
|
84927
84927-30050 Switch, Seat Memory[11.2004 - 09.2005] GRS182 W(REAR AIR CONDITIONER) |
84927-30050 |
US $87.36 |
||
|
85911D
|
85911D
85911-30010 Relay, Rear Sunshade[11.2004 - 09.2005] GRS182 SUN SHADE-WITH(REAR); GRS182 SUN SHADE-WITH(REAR,DOOR) |
85911-30010 |
US $313.04 |
||
|
85911D
|
85911D
85911-50010 Relay, Rear Sunshade[09.2005 - 02.2008] GRS182 SUN SHADE-WITH(REAR & REAR DOOR); GRS182 SUN SHADE-WITH(REAR) |
85911-50010 |
US $313.04 |
||
|
89222
|
89222
89222-30090 Computer, Multiplex Network Door, Front Rh[11.2004 - 09.2005] GRS182 |
89222-30090 |
US $380.02 |
||
|
89223
|
89223
89222-30090 Computer, Multiplex Network Door, Front Rh[11.2004 - 09.2005] GRS182 |
89222-30090 |
US $380.02 |
||
|
89224
|
89224
89224-30040 Computer, Multiplex Network Door, Rear Rh[11.2004 - 09.2005] GRS182 |
89224-30040 |
US $380.02 |
||
|
89224A
|
89224A
89224-30040 Computer, Multiplex Network Door, Rear Rh[11.2004 - 09.2005] GRS182 |
89224-30040 |
US $380.02 |
||
|
8271530B30
|
8271530B30
82715-30B30 Bracket,wiring Harness Clamp |
82715-30B30 |
US $4.80 |
||
|
8271230260
|
8271230260
82712-30260 Hose, Suction |
82712-30260 |
US $15.43 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9018906227
|
9018906227
90189-06227 GROMMET SCREW |
90189-06227 |
from US $0.72 |
||
|
9046804160
|
9046804160
90468-04160 Clip, Instrument Panel, No.2 |
90468-04160 |
from US $0.96 |
||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.76 |
||
