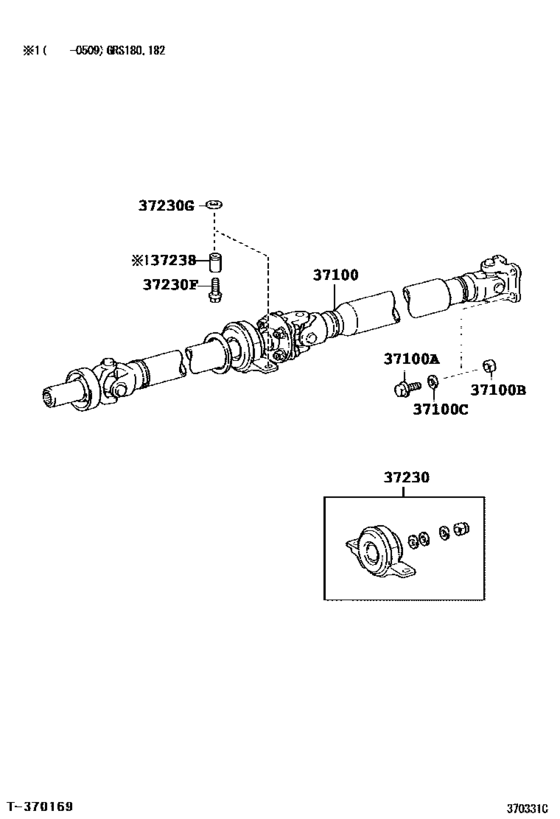

Propeller Shaft & Universal Joint ([12.2003 - ] ﾘﾔ (0312- )GRS180,181,182,183) Diagram Toyota CROWN/ MAJESTA
- Year
- 2003 - 2008
- Sales region
- Japan
- Frame
- GRS183
- grade
- ROY
- body
- SED
- ENGINE
- 3GRFSE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.2003
- To
- 02.2008
- Gear Shift Type
- 6FC
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
37100
|
37100
37100-30800 Shaft Assy, Propeller W/center Bearing[12.2003 - 09.2005] GRS181,183 |
37100-30800 |
US $1,300.21 |
||
|
37100A
|
37100A
90105-10466 Bolt, No.1 (For Propeller Shaft & Differential Setting)[12.2003 - 09.2005] GRS18# |
90105-10466 |
from US $0.98 |
||
|
37100B
|
37100B
90178-10007 Nut, No.1 (For Propeller Shaft & Differential Setting)[12.2003 - 09.2005] GRS18# |
90178-10007 |
from US $0.76 |
||
|
37100C
|
37100C
90560-10102 Washer, No.1 (For Propeller Shaft & Differential Setting)[12.2003 - 09.2005] GRS18# |
90560-10102 |
US $1.25 |
||
|
37230
|
37230
37230-39055 Bearing Assy, Center Support, No.1[12.2003 - 08.2005] GRS18# |
37230-39055 |
US $157.25 |
||
| replacement | |||||
|
37230
|
37230
37230-39095 Bearing Assy, Center Support, No.1[12.2003 - 08.2005] GRS18# |
37230-39095 |
from US $114.74 |
||
|
37230
|
37230
37230-39095 Bearing Assy, Center Support, No.1[08.2005 - 09.2005] GRS18# |
37230-39095 |
from US $114.74 |
||
|
37230F
|
37230F
90119-10902 Bolt, No.1 (For Center Support Bearing)[12.2003 - 09.2005] GRS181,183 長さ＝３３ |
90119-10902 |
US $2.15 |
||
|
37230G
|
37230G
90201-10008 Washer, No.2 (For Center Support Bearing)[12.2003 - 09.2005] GRS18# 厚さ＝４．５ |
90201-10008 |
US $1.97 |
||
|
37230G
|
37230G
90201-10017 Washer, No.2 (For Center Support Bearing)[12.2003 - 09.2005] GRS18# 厚さ＝９．０ |
90201-10017 |
US $2.48 |
||
|
37230G
|
37230G
90201-10033 Washer, No.2 (For Center Support Bearing)[12.2003 - 09.2005] GRS18# 厚さ＝６．５ |
90201-10033 |
US $2.61 |
||
|
37230G
|
37230G
90201-10034 Washer, No.2 (For Center Support Bearing)[12.2003 - 09.2005] GRS18# 厚さ＝１１．０ |
90201-10034 |
US $3.94 |
||
|
37230G
|
37230G
90201-10106 Washer, No.2 (For Center Support Bearing)[12.2003 - 09.2005] GRS18# 厚さ＝２．０ |
90201-10106 |
US $0.87 |
||
