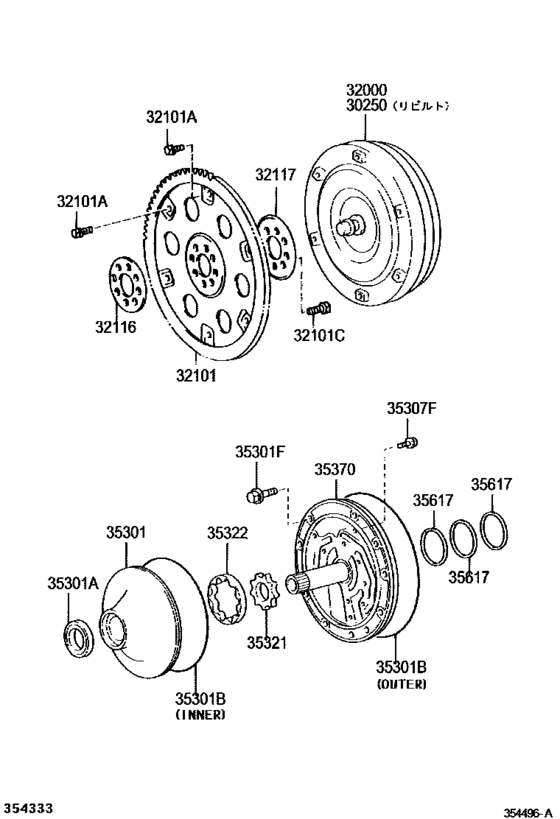

Torque Converter, Front Oil Pump & Chain (Atm) ([12.2003 - ] A750E,A750H,A760E,A760H,A761E,A761H (0312-0509)GRS180,182 ; (0312- )GRS181,183,UZ S18# ; (0509- )GRS184) Diagram Toyota CROWN/ MAJESTA
- Year
- 2003 - 2008
- Sales region
- Japan
- Frame
- GRS183
- grade
- ROY
- body
- SED
- ENGINE
- 3GRFSE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.2003
- To
- 02.2008
- Gear Shift Type
- 6FC
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30250
|
30250
30250-30390 Converter Assy, Torque, Rebuilt[12.2003 - 09.2005] GRS182,183 |
30250-30390 |
US $812.45 |
||
|
32000
|
32000
32000-30390 Converter Assy, Torque[12.2003 - 09.2005] GRS182,183 |
32000-30390 |
US $1,158.98 |
||
|
32101
|
32101
32101-30080 Gear Sub-Assy, Drive Plate & Ring[12.2003 - 09.2005] GRS18# |
32101-30080 |
US $240.24 |
||
| replacement | |||||
|
32101
|
32101
32101-30081 Gear Sub-Assy, Drive Plate & Ring[12.2003 - 09.2005] GRS18# |
32101-30081 |
US $180.54 |
||
|
32101A
|
32101A
90105-09005 Bolt(For Drive Plate & Torque Converter Setting)[12.2003 - 09.2005] GRS18# ＊９−１．２５ＰＸ１１−８,ブラック |
90105-09005 |
from US $0.78 |
||
|
32101A
|
32101A
90105-09006 Bolt(For Drive Plate & Torque Converter Setting)[12.2003 - 09.2005] GRS18# ＊９−１．２５ＰＸ１１−８．５,イエロ− ＯＲ シルバ− |
90105-09006 |
from US $0.78 |
||
|
32101C
|
32101C
90105-10048 Bolt, Flywheel Setting[12.2003 - 09.2005] GRS18# ＊１０−１．２５ＰＸ１８−１３ |
90105-10048 |
from US $1.11 |
||
|
32116
|
32116
32116-32020 Spacer, Drive Plate, Front[12.2003 - 09.2005] GRS18# |
32116-32020 |
US $14.85 |
||
|
32117
|
32117
32117-30030 Spacer, Drive Plate, Rear[12.2003 - 09.2005] GRS18# |
32117-30030 |
US $12.52 |
||
|
35301
|
35301
35301-60030 Body Sub-Assy, Front Oil Pump[12.2003 - 09.2005] GRS18# |
35301-60030 |
from US $169.48 |
||
|
35301A
|
35301A
90311-38083 Seal, Oil (For Front Oil Pump)[12.2003 - 09.2005] GRS18# |
90311-38083 |
from US $5.20 |
||
|
35301B
|
35301B
90301-99139 Ring, O (For Front Oil Pump Body)[12.2003 - 09.2005] GRS18# 外側 |
90301-99139 |
from US $5.52 |
||
|
35301B
|
35301B
90301-99148 Ring, O (For Front Oil Pump Body)[12.2003 - 09.2005] GRS18# 内側 |
90301-99148 |
from US $2.75 |
||
|
35301F
|
35301F
90105-08451 Bolt (For Front Oil Pump Setting)[10.2006 - 02.2008] GRS181,183,184 ＊８−１．２５ＰＸ４０−３０ |
90105-08451 |
US $0.79 |
||
|
35301F
|
35301F
91511-K0840 Bolt(For Crankshaft Bearing Cap Set)[12.2003 - 09.2005] GRS18# ＊８−１．２５ＰＸ４０−３０ |
91511-K0840 |
US $3.05 |
||
|
35307F
|
35307F
90148-60079 Bolt (For Stator Shaft)[12.2003 - 09.2005] GRS18# |
90148-60079 |
from US $0.52 |
||
|
35321
|
35321
35321-50010 Gear, Front Oil Pump Drive[12.2003 - 09.2005] GRS18# 厚さ＝１０．７３６−１０．７４２ |
35321-50010 |
US $38.44 |
||
|
35321
|
35321
35321-50020 Gear, Front Oil Pump Drive[12.2003 - 09.2005] GRS18# 厚さ＝１０．７４３−１０．７４９ |
35321-50020 |
US $39.60 |
||
|
35321
|
35321
35321-50030 Gear, Front Oil Pump Drive[12.2003 - 09.2005] GRS18# 厚さ＝１０．７５０−１０．７５６ |
35321-50030 |
US $39.60 |
||
|
35321
|
35321
35321-50040 Gear, Front Oil Pump Drive[12.2003 - 09.2005] GRS18# 厚さ＝１０．７５７−１０．７６３ |
35321-50040 |
from US $39.60 |
||
|
35321
|
35321
35321-50050 Gear, Front Oil Pump Drive[12.2003 - 09.2005] GRS18# 厚さ＝１０．７６４−１０．７７０ |
35321-50050 |
US $38.44 |
||
|
35321
|
35321
35321-50060 Gear, Front Oil Pump Drive[12.2003 - 09.2005] GRS18# 厚さ＝１０．７７１−１０．７７７ |
35321-50060 |
US $38.44 |
||
|
35321
|
35321
35321-50070 Gear, Front Oil Pump Drive[12.2003 - 09.2005] GRS18# 厚さ＝１０．７７８−１０．７８４ |
35321-50070 |
US $38.44 |
||
|
35322
|
35322
35322-50010 Gear, Front Oil Pump Driven[12.2003 - 09.2005] GRS18# 厚さ＝１０．７３６−１０．７４２ |
35322-50010 |
from US $32.67 |
||
|
35322
|
35322
35322-50020 Gear, Front Oil Pump Driven[12.2003 - 09.2005] GRS18# 厚さ＝１０．７４３−１０．７４９ |
35322-50020 |
US $33.63 |
||
|
35322
|
35322
35322-50030 Gear, Front Oil Pump Driven[12.2003 - 09.2005] GRS18# 厚さ＝１０．７５０−１０．７５６ |
35322-50030 |
US $33.63 |
||
|
35322
|
35322
35322-50040 Gear, Front Oil Pump Driven[12.2003 - 09.2005] GRS18# 厚さ＝１０．７５７−１０．７６３ |
35322-50040 |
US $33.63 |
||
|
35322
|
35322
35322-50050 Gear, Front Oil Pump Driven[12.2003 - 09.2005] GRS18# 厚さ＝１０．７６４−１０．７７０ |
35322-50050 |
US $32.67 |
||
|
35322
|
35322
35322-50060 Gear, Front Oil Pump Driven[12.2003 - 09.2005] GRS18# 厚さ＝１０．７７１−１０．７７７ |
35322-50060 |
US $33.63 |
||
|
35322
|
35322
35322-50070 Gear, Front Oil Pump Driven[12.2003 - 09.2005] GRS18# 厚さ＝１０．７７８−１０．７８４ |
35322-50070 |
US $33.63 |
||
|
35370
|
35370
35370-50030 Shaft Assy, Stator[12.2003 - 09.2005] GRS18# |
35370-50030 |
from US $195.69 |
||
|
35617
|
35617
35617-50030 Ring, Clutch Drum Oil Seal[09.2007 - 02.2008] GRS181,183,184 |
35617-50030 |
from US $4.02 |
||
|
35617
|
35617
35617-60020 Ring, Clutch Drum Oil Seal[12.2003 - 09.2005] GRS18# |
35617-60020 |
US $6.64 |
||
