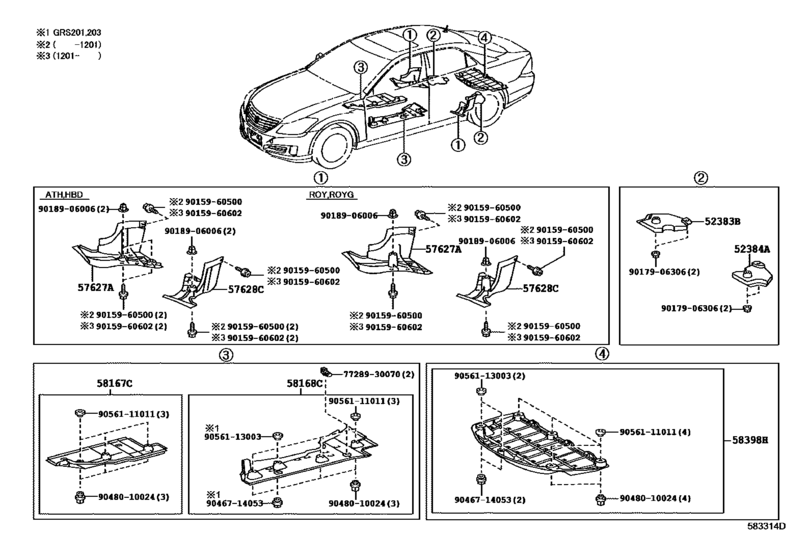

Floor Pan & Lower Back Panel ([02.2008 - ] ﾌﾛｱ ｱﾝﾀﾞ ｶﾊﾞｰ (0802- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2008 - 2012
- Sales region
- Japan
- Frame
- GRS202
- grade
- ROYG
- ENGINE
- 3GRFSE
- Model
- CROWN
- From
- 02.2008
- To
- 12.2012
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52383B
|
52383B
52383-30011 Protector, Differential Support, No.1[02.2008 - 02.2010] GRS20#,GWS204 |
52383-30011 |
US $58.37 |
||
|
52384A
|
52384A
52384-30011 Protector, Differential Support, No.2[02.2008 - 02.2010] GRS20#,GWS204 |
52384-30011 |
US $45.95 |
||
|
57627A
|
57627A
57627-30030 Cover, Rear Floor Side Member, Rh[02.2008 - 07.2009] GRS200,201,202,203..ROY,ROYG |
57627-30030 |
US $32.61 |
||
| replacement | |||||
|
57627A
|
57627A
57627-30031 Cover, Rear Floor Side Member, Rh[02.2008 - 07.2009] GRS200,201,202,203..ROY,ROYG |
57627-30031 |
US $24.11 |
||
|
57627A
|
57627A
57627-30031 Cover, Rear Floor Side Member, Rh[08.2009 - 02.2010] GRS200,201,202,203..ROY,ROYG |
57627-30031 |
US $24.11 |
||
|
57628C
|
57628C
57628-30030 Cover, Rear Floor Side Member, Lh[02.2008 - 07.2009] GRS200,201,202,203..ROY,ROYG |
57628-30030 |
US $32.61 |
||
| replacement | |||||
|
57628C
|
57628C
57628-30031 Cover, Rear Floor Side Member, Lh[02.2008 - 07.2009] GRS200,201,202,203..ROY,ROYG |
57628-30031 |
US $24.61 |
||
|
57628C
|
57628C
57628-30031 Cover, Rear Floor Side Member, Lh[08.2009 - 02.2010] GRS200,201,202,203..ROY,ROYG |
57628-30031 |
US $24.61 |
||
|
58167C
|
58167C
58167-30052 Cover, Front Floor, Center Rh[02.2008 - 02.2010] GRS20#,GWS204..CBU |
58167-30052 |
US $61.56 |
||
|
58168C
|
58168C
58168-30052 Cover, Front Floor, Center Lh[02.2008 - 02.2010] GRS200,202,204,GWS204..CBU |
58168-30052 |
US $72.50 |
||
|
58398H
|
58398H
58390-30011 Cover, Floor Under, No.1[02.2008 - 02.2010] GRS20#,GWS204 |
58390-30011 |
US $106.58 |
||
|
7728930070
|
7728930070
77289-30070 Clamp, Fuel Tube, No.1 |
77289-30070 |
from US $7.52 |
||
|
9015960500
|
9015960500
90159-60500 SCREW WWASHER |
90159-60500 |
from US $1.12 |
||
|
9015960602
|
9015960602
90159-60602 SCREW |
90159-60602 |
from US $0.66 |
||
|
9017906306
|
9017906306
90179-06306 NUT |
90179-06306 |
US $1.92 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.99 |
||
|
9046714053
|
9046714053
90467-14053 Clip, No.1(For Floor Under Cover) |
90467-14053 |
US $1.60 |
||
|
9048010024
|
9048010024
90480-10024 Clip, No.2(For Floor Under Cover) |
90480-10024 |
from US $1.60 |
||
|
9056111011
|
9056111011
90561-11011 Clip, No.1(For Floor Under Cover) |
90561-11011 |
from US $1.12 |
||
|
9056113003
|
9056113003
90561-13003 Clip, No.4(For Floor Under Cover) |
90561-13003 |
US $1.12 |
||
