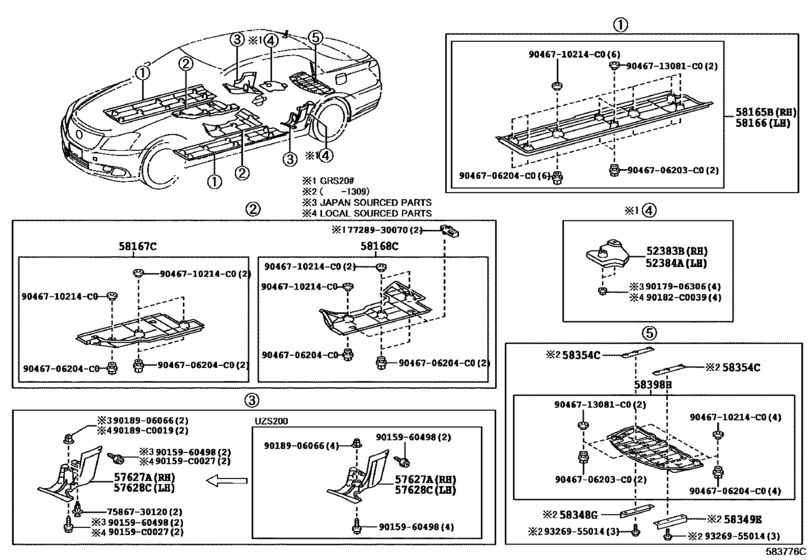

Floor Pan & Lower Back Panel ([12.2009 - ] FLOOR UNDER COVER (0912- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- GRS202
- grade
- ROYEX
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- Model
- CROWN (CHINA)
- From
- 12.2009
- To
- 07.2012
- Gear Shift Type
- 6FC
- Vehicle Model
- Crown
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52383B
|
52383B
52383-0N010
Protector, Differential Support, No.1
[12.2009 - 07.2012] GRS20# |
52383-0N010 |
— | ||
|
52384A
|
52384A
52384-0N010
Protector, Differential Support, No.2
[12.2009 - 07.2012] GRS20# |
52384-0N010 |
— | ||
|
57627A
|
57627A
57627-0P010
Cover, Rear Floor Side Member, Rh
[12.2009 - 07.2012] GRS20# |
57627-0P010 |
— | ||
|
57628C
|
57628C
57628-0P010
Cover, Rear Floor Side Member, Lh
[12.2009 - 07.2012] GRS20# |
57628-0P010 |
— | ||
|
58165B
|
58165B
58165-0N020
Cover, Front Floor, Rh
[12.2009 - 07.2012] GRS20#,UZS200 |
58165-0N020 |
— | ||
|
58166
|
58166
58166-0N020
Cover, Front Floor, Lh
[12.2009 - 07.2012] GRS20#,UZS200 |
58166-0N020 |
— | ||
|
58167C
|
58167C
58167-0N010
Cover, Front Floor, Center Rh
[12.2009 - 07.2012] GRS20#,UZS200 |
58167-0N010 |
— | ||
|
58168C
|
58168C
58168-0N010
Cover, Front Floor, Center Lh
[12.2009 - 07.2012] GRS20#,UZS200 |
58168-0N010 |
— | ||
|
58348G
|
58348G
58348-22010
Plate, Rear Floor Side, Rh
[12.2009 - 07.2012] GRS20#,UZS200 |
58348-22010 |
— | ||
|
58349E
|
58349E
58349-22010
Plate, Rear Floor Side, Lh
[12.2009 - 07.2012] GRS20#,UZS200 |
58349-22010 |
— | ||
|
58354C
|
58354C
58354-0P010
Patch, Front Floor, Center
[12.2009 - 07.2012] GRS20#,UZS200 |
58354-0P010 |
— | ||
|
58398H
|
58398H
58398-0N010
Cover, Floor Under, No.1
[12.2009 - 07.2012] GRS20#,UZS200 |
58398-0N010 |
— | ||
|
90159C0027
|
90159C0027
90159-C0027
New Genuine Part
|
90159-C0027 |
— | ||
|
90182C0039
|
90182C0039
90182-C0039
New Genuine Part
|
90182-C0039 |
— | ||
|
90189C0019
|
90189C0019
90189-C0019
New Genuine Part
|
90189-C0019 |
— | ||
|
7586730120
|
7586730120
75867-30120 Clip, Rocker Panel Moulding |
75867-30120 |
from US $3.36 |
||
|
7728930070
|
7728930070
77289-30070 Clamp, Fuel Tube, No.1 |
77289-30070 |
from US $7.52 |
||
|
9015960498
|
9015960498
90159-60498 SCREW W-WASHER |
90159-60498 |
from US $0.72 |
||
|
9017906306
|
9017906306
90179-06306 NUT |
90179-06306 |
US $1.92 |
||
|
9018906066
|
9018906066
90189-06066 CLIP |
90189-06066 |
from US $0.76 |
||
|
9046706203C0
|
9046706203C0
90467-06203-C0
Clip, No.2(For Floor Under Cover)
|
90467-06203-C0 |
— | ||
|
9046706204C0
|
9046706204C0
90467-06204-C0 Clip, Engine Under Cover, No.1 |
90467-06204-C0 |
US $1.46 |
||
|
9046710214C0
|
9046710214C0
90467-10214-C0 Clip, Engine Under Cover, No.2 |
90467-10214-C0 |
US $1.16 |
||
|
9046713081C0
|
9046713081C0
90467-13081-C0
Clip, No.1(For Floor Under Cover)
|
90467-13081-C0 |
— | ||
|
9326955014
|
9326955014
93269-55014 New Genuine Part |
93269-55014 |
US $1.92 |
