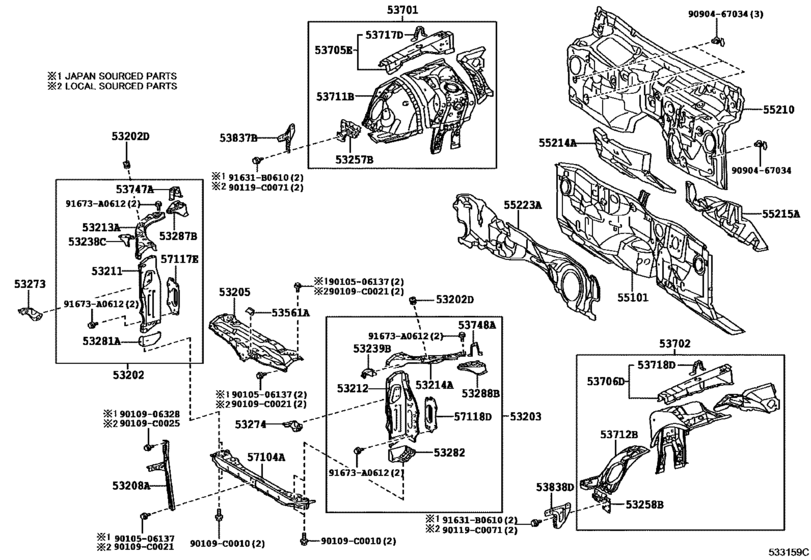

Front Fender Apron & Dash Panel ([12.2009 - ] (0912- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- GRS202
- grade
- ROYEX
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- Model
- CROWN (CHINA)
- From
- 12.2009
- To
- 07.2012
- Gear Shift Type
- 6FC
- Vehicle Model
- Crown
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53202
|
53202
53202-0N020
Support Sub-Assy, Radiator, Rh
[12.2009 - 07.2012] GRS20#,UZS200 |
53202-0N020 |
— | ||
|
53202D
|
53202D
53384-50010 Cushion, Hood Bumper[12.2009 - 07.2012] GRS20#,UZS200 |
53384-50010 |
from US $5.44 |
||
|
53203
|
53203
53203-0N020
Support Sub-Assy, Radiator, Lh
[12.2009 - 07.2012] GRS20#,UZS200 |
53203-0N020 |
— | ||
|
53205
|
53205
53205-0N010
Support Sub-Assy, Radiator, Upper
[12.2009 - 07.2012] GRS20#,UZS200 |
53205-0N010 |
— | ||
|
53208A
|
53208A
53208-0N030
Support Sub-Assy, Hood Lock
[12.2009 - 07.2012] GRS20#,UZS200 |
53208-0N030 |
— | ||
|
53211
|
53211
53211-0N010
Support, Radiator, Rh
[12.2009 - 07.2012] GRS20#,UZS200 |
53211-0N010 |
— | ||
|
53212
|
53212
53212-0N010
Support, Radiator, Lh
[12.2009 - 07.2012] GRS20#,UZS200 |
53212-0N010 |
— | ||
|
53213A
|
53213A
53213-0N010
Support, Radiator, Upper Rh
[12.2009 - 07.2012] GRS20#,UZS200 |
53213-0N010 |
— | ||
|
53214A
|
53214A
53214-0N010
Support, Radiator, Upper Lh
[12.2009 - 07.2012] GRS20#,UZS200 |
53214-0N010 |
— | ||
|
53238C
|
53238C
53238-0N010
Bracket, Hood Bumper Mounting, Rh
[12.2009 - 07.2012] GRS20#,UZS200 |
53238-0N010 |
— | ||
|
53239B
|
53239B
53239-0N010
Bracket, Hood Bumper Mounting, Lh
[12.2009 - 07.2012] GRS20#,UZS200 |
53239-0N010 |
— | ||
|
53257B
|
53257B
53257-0N010
Bracket, Radiator Support To Front Fender
[12.2009 - 07.2012] GRS20#,UZS200 |
53257-0N010 |
— | ||
|
53258B
|
53258B
53258-0N010
Bracket, Radiator Support To Front Fender, Lh
[12.2009 - 07.2012] GRS20#,UZS200 |
53258-0N010 |
— | ||
|
53273
|
53273
53273-0N010
Bracket, Front Bumper Arm Mounting, Rh
[12.2009 - 07.2012] GRS20#,UZS200 |
53273-0N010 |
— | ||
|
53274
|
53274
53274-0N010
Bracket, Front Bumper Arm Mounting, Lh
[12.2009 - 07.2012] GRS20#,UZS200 |
53274-0N010 |
— | ||
|
53281A
|
53281A
53281-0N010
Reinforcement, Front Body Mounting, Rh
[12.2009 - 07.2012] GRS20#,UZS200 |
53281-0N010 |
— | ||
|
53282
|
53282
53282-0N010
Reinforcement, Front Body Mounting, Lh
[12.2009 - 07.2012] GRS20#,UZS200 |
53282-0N010 |
— | ||
|
53287B
|
53287B
53287-0N010
Extension, Radiator Support, Rh
[12.2009 - 07.2012] GRS20#,UZS200 |
53287-0N010 |
— | ||
|
53288B
|
53288B
53288-0N010
Extension, Radiator Support, Lh
[12.2009 - 07.2012] GRS20#,UZS200 |
53288-0N010 |
— | ||
|
53561A
|
53561A
53561-30010 Guide, Hood Auxiliary Catch Hook[12.2009 - 07.2012] GRS20#,UZS200 |
53561-30010 |
US $6.40 |
||
|
53701
|
53701
53701-0N030
Apron Sub-Assy, Front Fender, Rh
[12.2009 - 07.2012] GRS20#,UZS200 |
53701-0N030 |
— | ||
| replacements | |||||
|
53701
|
53701
53701-0N031
Apron Sub-Assy, Front Fender, Rh
[12.2009 - 07.2012] GRS20#,UZS200 |
53701-0N031 |
— | ||
|
53701
|
53701
53715-30030 Plate, Front Fender Apron, Rear Rh[12.2009 - 07.2012] GRS20#,UZS200 |
53715-30030 |
US $40.43 |
||
|
53701
|
53701
90179-06274 Nut[12.2009 - 07.2012] GRS20#,UZS200 |
90179-06274 |
from US $0.74 |
||
|
53701
|
53701
91673-80616 Bolt, W/washer[12.2009 - 07.2012] GRS20#,UZS200 |
91673-80616 |
from US $0.64 |
||
|
53702
|
53702
53702-0N030
Apron Sub-Assy, Front Fender, Lh
[12.2009 - 07.2012] GRS20#,UZS200 |
53702-0N030 |
— | ||
| replacement | |||||
|
53702
|
53702
53702-0N031
Apron Sub-Assy, Front Fender, Lh
[12.2009 - 07.2012] GRS20#,UZS200 |
53702-0N031 |
— | ||
|
53705E
|
53705E
53705-0N020
Member Sub-Assy, Front Apron To Cowl Side, Rh
[12.2009 - 07.2012] GRS20#,UZS200 |
53705-0N020 |
— | ||
|
53706D
|
53706D
53706-0N020
Member Sub-Assy, Front Apron To Cowl Side, Lh
[12.2009 - 07.2012] GRS20#,UZS200 |
53706-0N020 |
— | ||
|
53711B
|
53711B
53711-0N010
Apron, Front Fender, Front Rh
[12.2009 - 07.2012] GRS20#,UZS200 |
53711-0N010 |
— | ||
| replacements | |||||
|
53711B
|
53711B
53711-0N020
Apron, Front Fender, Front Rh
[12.2009 - 07.2012] GRS20#,UZS200 |
53711-0N020 |
— | ||
|
53711B
|
53711B
53715-30030 Plate, Front Fender Apron, Rear Rh[12.2009 - 07.2012] GRS20#,UZS200 |
53715-30030 |
US $40.43 |
||
|
53711B
|
53711B
90179-06274 Nut[12.2009 - 07.2012] GRS20#,UZS200 |
90179-06274 |
from US $0.74 |
||
|
53711B
|
53711B
91673-80616 Bolt, W/washer[12.2009 - 07.2012] GRS20#,UZS200 |
91673-80616 |
from US $0.64 |
||
|
53712B
|
53712B
53712-0N010
Apron, Front Fender, Front Lh
[12.2009 - 07.2012] GRS20#,UZS200 |
53712-0N010 |
— | ||
| replacement | |||||
|
53712B
|
53712B
53712-0N020
Apron, Front Fender, Front Lh
[12.2009 - 07.2012] GRS20#,UZS200 |
53712-0N020 |
— | ||
|
53717D
|
53717D
53717-0N010
Gusset, Fender Apron, Rh
[12.2009 - 07.2012] GRS20#,UZS200 |
53717-0N010 |
— | ||
|
53718D
|
53718D
53717-0N010
Gusset, Fender Apron, Rh
[12.2009 - 07.2012] GRS20#,UZS200 |
53717-0N010 |
— | ||
|
53747A
|
53747A
53747-0N010
Extension, Apron Fender Side, Rh
[12.2009 - 07.2012] GRS20#,UZS200 |
53747-0N010 |
— | ||
|
53748A
|
53748A
53748-0N010
Extension, Apron Fender Side, Lh
[12.2009 - 07.2012] GRS20#,UZS200 |
53748-0N010 |
— | ||
|
53837B
|
53837B
53837-0N010
Bracket, Front Side Panel, No.2
[12.2009 - 07.2012] GRS20#,UZS200 |
53837-0N010 |
— | ||
|
53838D
|
53838D
53838-0N010
Bracket, Front Side Panel, No.2 Lh
[12.2009 - 07.2012] GRS20#,UZS200 |
53838-0N010 |
— | ||
|
55101
|
55101
55101-0P010
Panel Sub-Assy, Dash
[12.2009 - 08.2010] GRS20#,UZS200 |
55101-0P010 |
— | ||
| replacements | |||||
|
55101
|
55101
55101-0P022
Panel Sub-Assy, Dash
[12.2009 - 08.2010] GRS20#,UZS200 |
55101-0P022 |
— | ||
|
55101
|
55101
90950-01948 PLUG HOLE[12.2009 - 08.2010] GRS20#,UZS200 |
90950-01948 |
from US $1.60 |
||
|
55101
|
55101
55101-0P020
Panel Sub-Assy, Dash
[09.2010 - 07.2012] GRS20#,UZS200 |
55101-0P020 |
— | ||
| replacements | |||||
|
55101
|
55101
55101-0P022
Panel Sub-Assy, Dash
[09.2010 - 07.2012] GRS20#,UZS200 |
55101-0P022 |
— | ||
|
55101
|
55101
90950-01948 PLUG HOLE[09.2010 - 07.2012] GRS20#,UZS200 |
90950-01948 |
from US $1.60 |
||
|
55210
|
55210
55210-0N020
Insulator Assy, Dash Panel
[12.2009 - 07.2012] GRS20#,UZS200 |
55210-0N020 |
— | ||
| replacement | |||||
|
55210
|
55210
55210-0N021
Insulator Assy, Dash Panel
[12.2009 - 07.2012] GRS20#,UZS200 |
55210-0N021 |
— | ||
|
55214A
|
55214A
55214-0N011
Pad, Dash Panel Insulator, No.2
[12.2009 - 07.2012] GRS20#,UZS200 |
55214-0N011 |
— | ||
|
55215A
|
55215A
55215-0P010
Pad, Dash Panel Insulator, No.3
[12.2009 - 07.2012] GRS20#,UZS200 |
55215-0P010 |
— | ||
|
55223A
|
55223A
55223-0N010
Insulator, Dash Panel, Outer
[12.2009 - 07.2012] GRS20#,UZS200 |
55223-0N010 |
— | ||
| replacement | |||||
|
55223A
|
55223A
55223-0N011
Insulator, Dash Panel, Outer
[12.2009 - 07.2012] GRS20#,UZS200 |
55223-0N011 |
— | ||
|
57104A
|
57104A
57104-0P010
Member Sub-Assy, Front Cross
[12.2009 - 07.2012] GRS20#,UZS200 |
57104-0P010 |
— | ||
|
57117E
|
57117E
57117-0P010
Retainer, Front Bumper Arm, Rh
[12.2009 - 07.2012] GRS20#,UZS200 |
57117-0P010 |
— | ||
|
57118D
|
57118D
57118-0P010
Retainer, Front Bumper Arm, Lh
[12.2009 - 07.2012] GRS20#,UZS200 |
57118-0P010 |
— | ||
|
90109C0010
|
90109C0010
90109-C0010
New Genuine Part
|
90109-C0010 |
— | ||
|
90109C0021
|
90109C0021
90109-C0021
New Genuine Part
|
90109-C0021 |
— | ||
|
90109C0025
|
90109C0025
90109-C0025
New Genuine Part
|
90109-C0025 |
— | ||
|
90119C0071
|
90119C0071
90119-C0071
New Genuine Part
|
90119-C0071 |
— | ||
|
91631B0610
|
91631B0610
91631-B0610 BOLTWWASHER |
91631-B0610 |
from US $0.90 |
||
|
91673A0612
|
91673A0612
91673-A0612 Bolt |
91673-A0612 |
US $0.96 |
||
|
9010506137
|
9010506137
90105-06137 BOLT, WASHER BASED H |
90105-06137 |
from US $0.88 |
||
|
9010906328
|
9010906328
90109-06328 BOLT |
90109-06328 |
from US $0.96 |
||
| replacement | |||||
|
9010906328
|
9010906328
90080-10342 New Genuine Part |
90080-10342 |
US $3.92 |
||
|
9090467034
|
9090467034
90904-67034 Clip |
90904-67034 |
US $2.48 |
||
