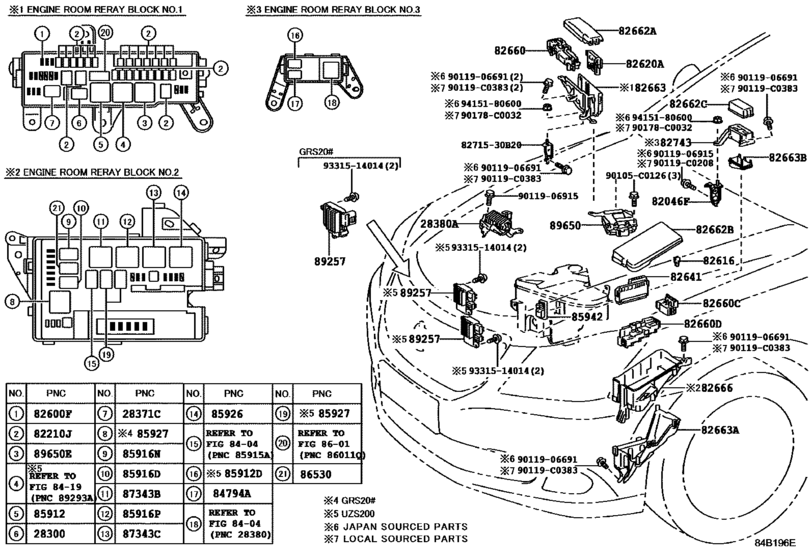

Switch & Relay & Computer ([12.2009 - ] ENGINE ROOM (0912- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- GRS202
- grade
- ROYEX
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- Model
- CROWN (CHINA)
- From
- 12.2009
- To
- 07.2012
- Gear Shift Type
- 6FC
- Vehicle Model
- Crown
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-28010
Relay Assy, Starter
[12.2009 - 07.2012] 3GRFE,5GRFE,3UZFE..GRS20#,UZS200 |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[12.2009 - 07.2012] 3GRFE,5GRFE,3UZFE..GRS20#,UZS200 |
28300-21020 |
from US $32.01 |
||
|
28371C
|
28371C
90987-T2005
Relay, Water Pump
[12.2009 - 07.2012] 3GRFE,5GRFE,3UZFE..GRS20#,UZS200 |
90987-T2005 |
— | ||
|
28380A
|
28380A
23080-31020 Resister, Fuel Pump[12.2009 - 07.2012] 3GRFE,5GRFE..GRS20# |
23080-31020 |
US $54.16 |
||
|
82046F
|
82046F
82046-30100 Wire Sub-Assy, Body Ground, No.1[12.2009 - 07.2012] GRS20#,UZS200 |
82046-30100 |
US $14.41 |
||
|
82210J
|
82210J
90982-08299 Fusible Link[12.2009 - 07.2012] GRS20#,UZS200 40A-40A-40A,FEMALE |
90982-08299 |
from US $4.95 |
||
|
82210J
|
82210J
90982-08300 Fusible Link[12.2009 - 07.2012] GRS20#,UZS200 50A-30A-30A,FEMALE |
90982-08300 |
from US $4.95 |
||
|
82210J
|
82210J
90982-08302 Fusible Link[12.2009 - 07.2012] GRS20#,UZS200 50A-30A-50A,FEMALE |
90982-08302 |
from US $4.95 |
||
|
82210J
|
82210J
90982-08303 Fusible Link[12.2009 - 07.2012] GRS20# 50A-50A-50A,FEMALE |
90982-08303 |
from US $4.95 |
||
|
82210J
|
82210J
90982-08304 Fusible Link[12.2009 - 07.2012] GRS20#,UZS200 60A,TERMINAL:FEMALE |
90982-08304 |
from US $4.95 |
||
|
82210J
|
82210J
90982-08305 Fusible Link[12.2009 - 07.2012] GRS20#,UZS200 80A,TERMINAL:FEMALE |
90982-08305 |
from US $4.95 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[12.2009 - 07.2012] GRS20#,UZS200 5A,MINI FUSE,INSTRUMENT PANEL J/B |
90982-09007 |
from US $0.83 |
||
|
82600F
|
82600F
90982-09019 Instrument Panel Fuse[12.2009 - 07.2012] GRS20#,UZS200 5A,MINI FUSE,ENGINE ROOM R/B |
90982-09019 |
from US $0.80 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[12.2009 - 07.2012] GRS20#,UZS200 7.5A,MINI FUSE |
90982-09020 |
from US $0.83 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[12.2009 - 07.2012] GRS20#,UZS200 10A,MINI FUSE |
90982-09021 |
from US $0.83 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[12.2009 - 07.2012] GRS20#,UZS200 15A,MINI FUSE |
90982-09022 |
from US $0.83 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[12.2009 - 07.2012] GRS20#,UZS200 20A,MINI FUSE |
90982-09023 |
from US $0.82 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[12.2009 - 07.2012] GRS20#,UZS200 25A,MINI FUSE |
90982-09024 |
from US $0.82 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[12.2009 - 07.2012] GRS20#,UZS200 30A,MINI FUSE |
90982-09025 |
from US $0.84 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[12.2009 - 07.2012] GRS20#,UZS200 |
82616-58010 |
from US $2.15 |
||
|
82620A
|
82620A
82620-30240
Block Assy, Fusible Link
[12.2009 - 07.2012] GRS20#,UZS200 |
82620-30240 |
— | ||
|
82641
|
82641
82641-30310 Relay, Integration No.1INTEGRATION NO.1 [12.2009 - 09.2011] GRS20#,UZS200 |
82641-30310 |
US $80.08 |
||
|
82641
|
82641
82641-30311
Relay, Integration No.1
[09.2011 - 07.2012] GRS20#,UZS200 |
82641-30311 |
— | ||
|
82660
|
82660
82660-30B30
Block Assy, Relay, Engine Room
[12.2009 - 07.2012] GRS20#,UZS200 |
82660-30B30 |
— | ||
|
82660C
|
82660C
82660-30B10 Block Assy, Relay[12.2009 - 07.2012] GRS20#,UZS200 |
82660-30B10 |
US $18.93 |
||
|
82660D
|
82660D
82660-30B00 Block Assy, Relay[12.2009 - 07.2012] GRS20#,UZS200 |
82660-30B00 |
US $32.03 |
||
|
82662A
|
82662A
82662-30A40
Cover, Relay Block, Upper, No.1
[12.2009 - 07.2012] GRS20# |
82662-30A40 |
— | ||
|
82662B
|
82662B
82662-30A50
Cover, Relay Block, Upper, No.2
[12.2009 - 09.2010] GRS20# |
82662-30A50 |
— | ||
|
82662B
|
82662B
82662-30A51
Cover, Relay Block, Upper, No.2
[09.2010 - 07.2012] GRS20# |
82662-30A51 |
— | ||
|
82662C
|
82662C
82662-30A60
Cover, Relay Block, Upper, No.3
[12.2009 - 07.2012] GRS20#,UZS200 |
82662-30A60 |
— | ||
|
82663
|
82663
82663-30300
Cover, Relay Block, Lower
[12.2009 - 07.2012] GRS20#,UZS200 |
82663-30300 |
— | ||
|
82663A
|
82663A
82663-30290 Cover, Relay Block, Lower, No.2[12.2009 - 07.2012] GRS20#,UZS200 |
82663-30290 |
US $30.59 |
||
|
82663B
|
82663B
82663-30240 Cover, Relay Block Lower, No.4[12.2009 - 07.2012] GRS20#,UZS200 |
82663-30240 |
from US $5.97 |
||
|
82666
|
82666
82666-30880 Holder, Connector No.3[12.2009 - 07.2012] GRS20#,UZS200 |
82666-30880 |
US $50.67 |
||
|
82743
|
82743
82743-30070
Block, Engine Room Relay, No.3
[12.2009 - 07.2012] GRS20#,UZS200 |
82743-30070 |
— | ||
|
84794A
|
84794A
90987-T2005
Relay, Water Pump
[12.2009 - 07.2012] GRS20#,UZS200 |
90987-T2005 |
— | ||
|
85912
|
85912
90987-T4002
Relay Assy (For Heater Blower Motor)
[12.2009 - 07.2012] GRS20#,UZS200 |
90987-T4002 |
— | ||
|
85916D
|
85916D
90987-T2005
Relay, Water Pump
[12.2009 - 07.2012] GRS20#,UZS200 |
90987-T2005 |
— | ||
|
85916N
|
85916N
90987-T2005
Relay, Water Pump
[12.2009 - 07.2012] GRS20#,UZS200 |
90987-T2005 |
— | ||
|
85916P
|
85916P
90987-T2004
Relay, Water Pump
[12.2009 - 07.2012] GRS20#,UZS200 |
90987-T2004 |
— | ||
|
85926
|
85926
90987-T4002
Relay Assy (For Heater Blower Motor)
[12.2009 - 07.2012] GRS20#,UZS200 |
90987-T4002 |
— | ||
|
85927
|
85927
90987-T2004
Relay, Water Pump
[12.2009 - 07.2012] GRS20# |
90987-T2004 |
— | ||
|
85942
|
85942
85942-48020 Relay, Headlamp Cleaner ControlHEADLAMP CLEANER CONTROL [12.2009 - 01.2011] GRS20#,UZS200 |
85942-48020 |
US $110.66 |
||
| replacement | |||||
|
85942
|
85942
85942-58010 Relay, Cleaner Control[12.2009 - 01.2011] GRS20#,UZS200 |
85942-58010 |
from US $78.83 |
||
|
85942
|
85942
85942-58010 Relay, Cleaner Control[02.2011 - 07.2012] GRS20#,UZS200 |
85942-58010 |
from US $78.83 |
||
|
86530
|
86530
90987-T2005
Relay, Water Pump
[09.2010 - 07.2012] GRS20#,UZS200 |
90987-T2005 |
— | ||
|
87343B
|
87343B
90987-T2004
Relay, Water Pump
[12.2009 - 07.2012] GRS20# |
90987-T2004 |
— | ||
|
87343C
|
87343C
90987-T2004
Relay, Water Pump
[12.2009 - 07.2012] GRS20# |
90987-T2004 |
— | ||
|
89257
|
89257
89257-30060 Computer, Cooling Fan[12.2009 - 07.2012] GRS20# |
89257-30060 |
from US $197.20 |
||
|
89650
|
89650
89650-30810
Computer Assy, Power Steering
[12.2009 - 08.2010] GRS20# |
89650-30810 |
— | ||
| replacement | |||||
|
89650
|
89650
89650-30812
Computer Assy, Power Steering
[12.2009 - 08.2010] GRS20# |
89650-30812 |
— | ||
|
89650
|
89650
89650-30811
Computer Assy, Power Steering
[09.2010 - 08.2011] GRS20# |
89650-30811 |
— | ||
| replacement | |||||
|
89650
|
89650
89650-30812
Computer Assy, Power Steering
[09.2010 - 08.2011] GRS20# |
89650-30812 |
— | ||
|
89650
|
89650
89650-30812
Computer Assy, Power Steering
[09.2011 - 07.2012] GRS20# |
89650-30812 |
— | ||
|
89650E
|
89650E
90987-T2004
Relay, Water Pump
[12.2009 - 07.2012] GRS20#,UZS200 |
90987-T2004 |
— | ||
|
90105C0126
|
90105C0126
90105-C0126
New Genuine Part
|
90105-C0126 |
— | ||
|
90119C0208
|
90119C0208
90119-C0208
New Genuine Part
|
90119-C0208 |
— | ||
|
90119C0383
|
90119C0383
90119-C0383
New Genuine Part
|
90119-C0383 |
— | ||
|
90178C0032
|
90178C0032
90178-C0032
Nut, Wire Adjusting, No.1
|
90178-C0032 |
— | ||
|
8271530B20
|
8271530B20
82715-30B20
Bracket,wiring Harness Clamp
|
82715-30B20 |
— | ||
|
9011906691
|
9011906691
90119-06691 BOLT WWASHER |
90119-06691 |
US $0.83 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.61 |
||
|
9331514014
|
9331514014
93315-14014 SCREW |
93315-14014 |
US $0.83 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.59 |
||
