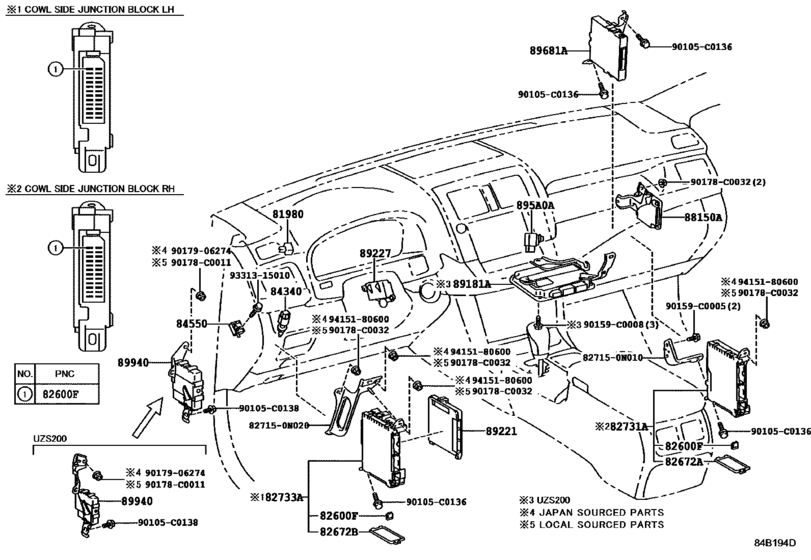

Switch & Relay & Computer ([12.2009 - ] COWL (0912- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- GRS202
- grade
- ROYEX
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- Model
- CROWN (CHINA)
- From
- 12.2009
- To
- 07.2012
- Gear Shift Type
- 6FC
- Vehicle Model
- Crown
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
895A0A
|
895A0A
895A0-20020 Computer Assy, Stop Lamp ControlSTOP LAMP CONTROL [12.2009 - 02.2010] GRS20#,UZS200 |
895A0-20020 |
US $48.75 |
||
|
895A0A
|
895A0A
895A0-30010 Relay Assy, Stop Lamp Control[02.2010 - 07.2012] GRS20#,UZS200 |
895A0-30010 |
US $50.09 |
||
|
81980
|
81980
81980-0N010
Flasher Assy, Turn Signal
[12.2009 - 07.2012] GRS20#,UZS200 |
81980-0N010 |
— | ||
|
82600F
|
82600F
90982-09007 Fusible Link[12.2009 - 07.2012] GRS20#,UZS200 5A,MINI FUSE,INSTRUMENT PANEL J/B |
90982-09007 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09019 Instrument Panel Fuse[12.2009 - 07.2012] GRS20#,UZS200 5A,MINI FUSE,ENGINE ROOM R/B |
90982-09019 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[12.2009 - 07.2012] GRS20#,UZS200 7.5A,MINI FUSE |
90982-09020 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[12.2009 - 07.2012] GRS20#,UZS200 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[12.2009 - 07.2012] GRS20#,UZS200 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[12.2009 - 07.2012] GRS20#,UZS200 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[12.2009 - 07.2012] GRS20#,UZS200 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[12.2009 - 07.2012] GRS20#,UZS200 30A,MINI FUSE |
90982-09025 |
from US $0.92 |
||
|
82672A
|
82672A
82672-30330
Cover, Junction Block
[12.2009 - 07.2012] GRS20#,UZS200 |
82672-30330 |
— | ||
|
82672B
|
82672B
82672-30340
Cover, Junction Block
[12.2009 - 07.2012] GRS20#,UZS200 |
82672-30340 |
— | ||
|
82731A
|
82731A
82730-30J40
Block, Cowl Side Junction, Rh
[12.2009 - 07.2012] GRS20#,UZS200 |
82730-30J40 |
— | ||
|
82733A
|
82733A
82730-30J50
Block, Cowl Side Junction, Lh
[12.2009 - 07.2012] GRS20#,UZS200 |
82730-30J50 |
— | ||
|
84340
|
84340
84340-30110 Switch Assy, Stop Lamp[12.2009 - 07.2012] GRS20#,UZS200 |
84340-30110 |
from US $21.26 |
||
|
84550
|
84550
84550-30080 Switch Assy, Parking Brake[12.2009 - 07.2012] GRS20#,UZS200 |
84550-30080 |
from US $18.39 |
||
|
89221
|
89221
89220-0N010
Computer, Multiplex Network Body
[12.2009 - 07.2012] GRS20#,UZS200 |
89220-0N010 |
— | ||
|
89227
|
89227
89227-30050 Computer, Multiplex Tilt & Telescopic[12.2009 - 07.2012] GRS202,UZS200 |
89227-30050 |
US $446.99 |
||
|
89681A
|
89681A
89690-30020
Computer, Power Management Control
[12.2009 - 07.2012] GRS20#,UZS200 |
89690-30020 |
— | ||
|
89940
|
89940
89940-30200
Computer Assy, Headlamp Swivel
[12.2009 - 07.2012] GRS20# |
89940-30200 |
— | ||
|
90105C0136
|
90105C0136
90105-C0136
New Genuine Part
|
90105-C0136 |
— | ||
|
90105C0138
|
90105C0138
90105-C0138
New Genuine Part
|
90105-C0138 |
— | ||
|
90159C0005
|
90159C0005
90159-C0005
New Genuine Part
|
90159-C0005 |
— | ||
|
90159C0008
|
90159C0008
90159-C0008
New Genuine Part
|
90159-C0008 |
— | ||
|
90178C0011
|
90178C0011
90178-C0011
New Genuine Part
|
90178-C0011 |
— | ||
|
90178C0032
|
90178C0032
90178-C0032
Nut, Wire Adjusting, No.1
|
90178-C0032 |
— | ||
|
827150N010
|
827150N010
82715-0N010
Bracket,wiring Harness Clamp
|
82715-0N010 |
— | ||
|
827150N020
|
827150N020
82715-0N020
Bracket,wiring Harness Clamp
|
82715-0N020 |
— | ||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9331315010
|
9331315010
93313-15010 SCREW |
93313-15010 |
US $1.02 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
