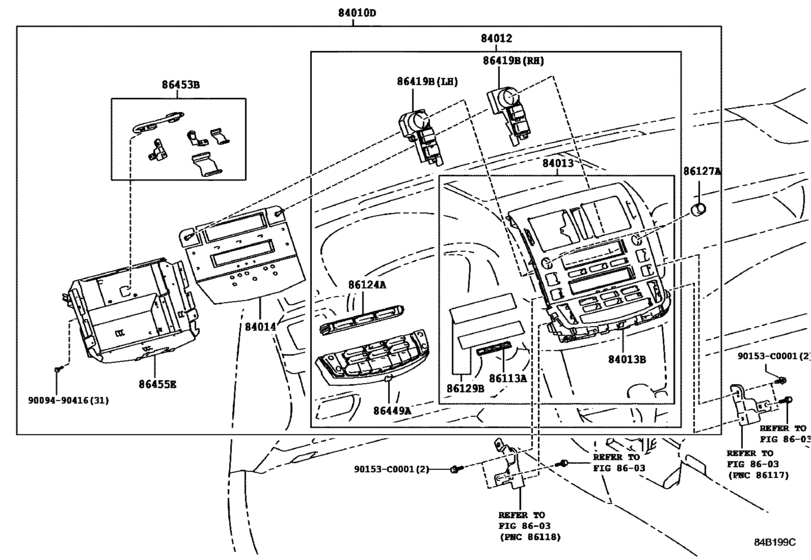

Switch & Relay & Computer ([12.2009 - ] INSTRUMENT PANEL 2/2 (0912- )ROYAL ; (0912- )GRS202..ROYEX) Diagram Toyota CROWN/ MAJESTA
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- GRS202
- grade
- ROYEX
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- Model
- CROWN (CHINA)
- From
- 12.2009
- To
- 07.2012
- Gear Shift Type
- 6FC
- Vehicle Model
- Crown
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84010D
|
84010D
84010-30780
Control & Panel Assy, Integration
[12.2009 - 07.2012] GRS20#..ROYAL,ROYEX; GRS208 NAVIGATION PACKAGE |
84010-30780 |
— | ||
|
84012
|
84012
84012-30250
Control & Panel Sub-Assy, Integration
[12.2009 - 07.2012] GRS20#..ROYAL,ROYEX; GRS208 NAVIGATION PACKAGE |
84012-30250 |
— | ||
|
84013
|
84013
84013-30130
Panel Sub-Assy, Integration
[12.2009 - 07.2012] GRS20#..ROYAL,ROYEX; GRS208 NAVIGATION PACKAGE |
84013-30130 |
— | ||
|
84013B
|
84013B
84013-30190
Panel Sub-Assy, Integration, No.2
[12.2009 - 07.2012] GRS20#..ROYAL,ROYEX; GRS208 NAVIGATION PACKAGE |
84013-30190 |
— | ||
|
84014
|
84014
84014-30100
Board Sub-Assy, Printed Wire Integration
[12.2009 - 07.2012] GRS20#..ROYAL,ROYEX; GRS208 NAVIGATION PACKAGE |
84014-30100 |
— | ||
|
86113A
|
86113A
86113-30050 Switch, Multi-Display[12.2009 - 07.2012] GRS20#..ROYAL,ROYEX; GRS208 NAVIGATION PACKAGE |
86113-30050 |
US $117.94 |
||
|
86124A
|
86124A
86124-30120 Knob, Radio Receiver Tone Control[12.2009 - 07.2012] GRS20#..ROYAL,ROYEX; GRS208 NAVIGATION PACKAGE |
86124-30120 |
US $38.15 |
||
|
86127A
|
86127A
86127-30100 Knob,radio Receiver, No.1[12.2009 - 07.2012] GRS20#..ROYAL,ROYEX; GRS208 NAVIGATION PACKAGE |
86127-30100 |
US $13.10 |
||
|
86129B
|
86129B
86129-30040 Filter, Multi-Display[12.2009 - 07.2012] GRS20#..ROYAL,ROYEX; GRS208 NAVIGATION PACKAGE |
86129-30040 |
US $64.65 |
||
|
86419B
|
86419B
86419-30080
Knob, Audio Module
[12.2009 - 07.2012] GRS20#..ROYAL,ROYEX RH; GRS208 NAVIGATION PACKAGE,RH |
86419-30080 |
— | ||
|
86419B
|
86419B
86419-30090
Knob, Audio Module
[12.2009 - 07.2012] GRS20#..ROYAL,ROYEX LH |
86419-30090 |
— | ||
|
86449A
|
86449A
86449-30070
Knob,heater Control Module
[12.2009 - 07.2012] GRS20#..ROYAL,ROYEX; GRS208 NAVIGATION PACKAGE |
86449-30070 |
— | ||
|
86453B
|
86453B
86453-30110 Wire, Multi-Media Module[12.2009 - 07.2012] GRS20#..ROYAL,ROYEX; GRS208 NAVIGATION PACKAGE |
86453-30110 |
US $8.01 |
||
|
86455E
|
86455E
86455-30060 Case, Multi-Media Module[12.2009 - 07.2012] GRS20#..ROYAL,ROYEX; GRS208 NAVIGATION PACKAGE |
86455-30060 |
US $46.88 |
||
|
90153C0001
|
90153C0001
90153-C0001
New Genuine Part
|
90153-C0001 |
— | ||
|
9009490416
|
9009490416
90094-90416
New Genuine Part
|
90094-90416 |
— |
