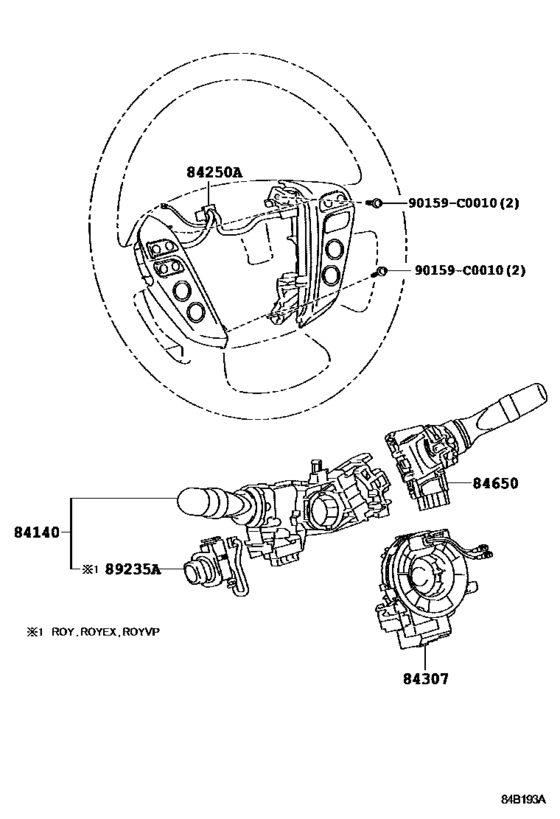

Switch & Relay & Computer ([12.2009 - ] STEERING (0912- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2009 - 2012
- Sales region
- General
- Frame
- GRS202
- grade
- ROYEX
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- Model
- CROWN (CHINA)
- From
- 12.2009
- To
- 07.2012
- Gear Shift Type
- 6FC
- Vehicle Model
- Crown
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-0N011
Switch Assy, Headlamp Dimmer
[12.2009 - 07.2012] GRS202,UZS200 |
84140-0N011 |
— | ||
|
84250A
|
84250A
84250-0N070
Switch Assy, Steering Pad
[12.2009 - 07.2012] GRS20#..ROYAL,ROYEX |
84250-0N070 |
— | ||
|
84307
|
84307
84307-0N040
Cable Sub-Assy, Spiral W/sensor
[12.2009 - 07.2012] GRS20# |
84307-0N040 |
— | ||
|
84650
|
84650
84652-0N020
Switch Assy, Windshield Wiper
[12.2009 - 07.2012] GRS202,UZS200 |
84652-0N020 |
— | ||
|
89235A
|
89235A
89235-48010 Switch, Tilt & Telescopic[12.2009 - 07.2012] GRS202,UZS200 |
89235-48010 |
US $40.19 |
||
|
90159C0010
|
90159C0010
90159-C0010
New Genuine Part
|
90159-C0010 |
— |
