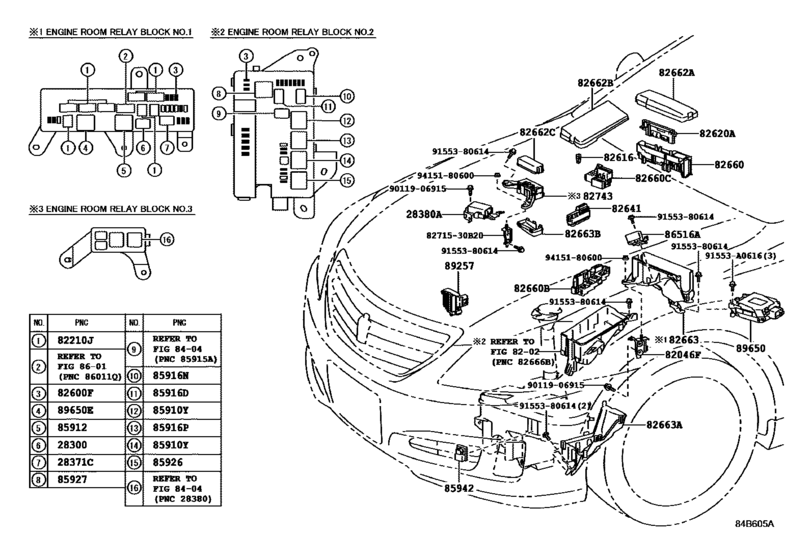

Switch & Relay & Computer ([09.2010 - ] ENGINE ROOM (1009- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2010 - 2012
- Sales region
- General
- Frame
- GRS202
- grade
- ROY
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 09.2010
- To
- 12.2012
- Gear Shift Type
- 6FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-28010
Relay Assy, Starter
[09.2010 - 12.2012] 3GRFE..GRS202 |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[09.2010 - 12.2012] 3GRFE..GRS202 |
28300-21020 |
from US $40.58 |
||
|
28371C
|
28371C
90987-02027 Relay[09.2010 - 12.2012] 3GRFE..GRS202 |
90987-02027 |
from US $44.54 |
||
|
28380A
|
28380A
23080-31040 Resister, Fuel Pump[09.2010 - 12.2012] 3GRFE..GRS202 |
23080-31040 |
US $58.01 |
||
|
82046F
|
82046F
82046-30100 Wire Sub-Assy, Body Ground, No.1[09.2010 - 12.2012] GRS202 |
82046-30100 |
US $14.41 |
||
|
82210J
|
82210J
90982-08299 Fusible Link[09.2010 - 12.2012] GRS202 40A-40A-40A,FEMALE |
90982-08299 |
US $6.24 |
||
|
82210J
|
82210J
90982-08300 Fusible Link[09.2010 - 12.2012] GRS202 50A-30A-30A,FEMALE |
90982-08300 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08302 Fusible Link[09.2010 - 12.2012] GRS202 50A-30A-50A,FEMALE |
90982-08302 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08304 Fusible Link[09.2010 - 12.2012] GRS202 60A,TERMINAL:FEMALE |
90982-08304 |
US $6.24 |
||
|
82210J
|
82210J
90982-08305 Fusible Link[09.2010 - 12.2012] GRS202 80A,TERMINAL:FEMALE |
90982-08305 |
US $6.24 |
||
|
82600F
|
82600F
90982-09019 Instrument Panel Fuse[09.2010 - 12.2012] GRS202 5A,MINI FUSE |
90982-09019 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[09.2010 - 12.2012] GRS202 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[09.2010 - 12.2012] GRS202 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[09.2010 - 12.2012] GRS202 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[09.2010 - 12.2012] GRS202 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[09.2010 - 12.2012] GRS202 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[09.2010 - 12.2012] GRS202 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[09.2010 - 12.2012] GRS202 |
82616-58010 |
from US $2.40 |
||
|
82620A
|
82620A
82620-30210 Block Assy, Fusible Link[09.2010 - 12.2012] GRS202 |
82620-30210 |
US $29.64 |
||
|
82641
|
82641
82641-30310 Relay, Integration No.1INTEGRATION NO.1 [09.2010 - 12.2012] GRS202 |
82641-30310 |
US $80.08 |
||
|
82660
|
82660
82660-30A70 Block Assy, Relay, Engine Room[09.2010 - 12.2012] GRS202 |
82660-30A70 |
US $65.37 |
||
|
82660B
|
82660B
82660-30B00 Block Assy, Relay[09.2010 - 12.2012] GRS202 |
82660-30B00 |
US $32.03 |
||
|
82660C
|
82660C
82660-30B10 Block Assy, Relay[09.2010 - 12.2012] GRS202 |
82660-30B10 |
US $18.93 |
||
|
82662A
|
82662A
82662-30821 Cover, Relay Block, Upper, No.1RELAY BLOCK, UPPER, NO.1 [09.2010 - 12.2012] GRS202 |
82662-30821 |
US $21.69 |
||
|
82662B
|
82662B
82662-30841 Cover, Relay Block, Upper, No.2RELAY BLOCK, UPPER, NO.2 [09.2010 - 12.2012] GRS202 |
82662-30841 |
US $29.70 |
||
|
82662C
|
82662C
82662-30851 Cover, Relay Block, Upper, No.3RELAY BLOCK, UPPER, NO.3 [09.2010 - 12.2012] GRS202 |
82662-30851 |
US $9.17 |
||
|
82663
|
82663
82663-30270 Cover, Relay Block, Lower[09.2010 - 12.2012] GRS202 |
82663-30270 |
US $39.75 |
||
|
82663A
|
82663A
82663-30290 Cover, Relay Block, Lower, No.2[09.2010 - 12.2012] GRS202 |
82663-30290 |
US $30.59 |
||
|
82663B
|
82663B
82663-30220 Cover, Relay Block, Lower, No.2[09.2010 - 12.2012] GRS202 |
82663-30220 |
US $6.99 |
||
|
82743
|
82743
82743-30080
Block, Engine Room Relay, No.3
[09.2010 - 12.2012] GRS202 |
82743-30080 |
— | ||
|
85910Y
|
85910Y
90987-02025 Relay[09.2010 - 12.2012] GRS202 |
90987-02025 |
from US $44.54 |
||
|
85912
|
85912
90987-04010 Relay Assy (For Heater Blower Motor)[09.2010 - 12.2012] GRS202 |
90987-04010 |
US $42.71 |
||
|
85916D
|
85916D
90987-02027 Relay[09.2010 - 12.2012] GRS202 |
90987-02027 |
from US $44.54 |
||
|
85916N
|
85916N
90987-02027 Relay[09.2010 - 12.2012] GRS202 |
90987-02027 |
from US $44.54 |
||
|
85916P
|
85916P
90987-02025 Relay[09.2010 - 12.2012] GRS202 |
90987-02025 |
from US $44.54 |
||
|
85926
|
85926
90987-02025 Relay[09.2010 - 12.2012] GRS202 |
90987-02025 |
from US $44.54 |
||
|
85927
|
85927
90987-02025 Relay[09.2010 - 12.2012] GRS202 |
90987-02025 |
from US $44.54 |
||
|
85942
|
85942
85942-58010 Relay, Cleaner Control[09.2010 - 12.2012] GRS202 |
85942-58010 |
from US $115.77 |
||
|
86516A
|
86516A
82930-30010 Condenser[09.2010 - 12.2012] GRS202 |
82930-30010 |
US $67.56 |
||
|
89257
|
89257
89257-30060 Computer, Cooling Fan[09.2010 - 12.2012] GRS202 |
89257-30060 |
from US $226.08 |
||
|
89650
|
89650
89650-30831 Computer Assy, Power Steering[09.2010 - 12.2011] GRS202 |
89650-30831 |
US $553.28 |
||
| replacement | |||||
|
89650
|
89650
89650-30832 Computer Assy, Power Steering[09.2010 - 12.2011] GRS202 |
89650-30832 |
US $460.10 |
||
|
89650
|
89650
89650-30832 Computer Assy, Power Steering[12.2011 - 12.2012] GRS202 |
89650-30832 |
US $460.10 |
||
|
89650E
|
89650E
90987-02025 Relay[09.2010 - 12.2012] GRS202 |
90987-02025 |
from US $44.54 |
||
|
91553A0616
|
91553A0616
91553-A0616 New Genuine Part |
91553-A0616 |
US $0.96 |
||
|
8271530B20
|
8271530B20
82715-30B20
Bracket,wiring Harness Clamp
|
82715-30B20 |
— | ||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.70 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $0.96 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.72 |
||
