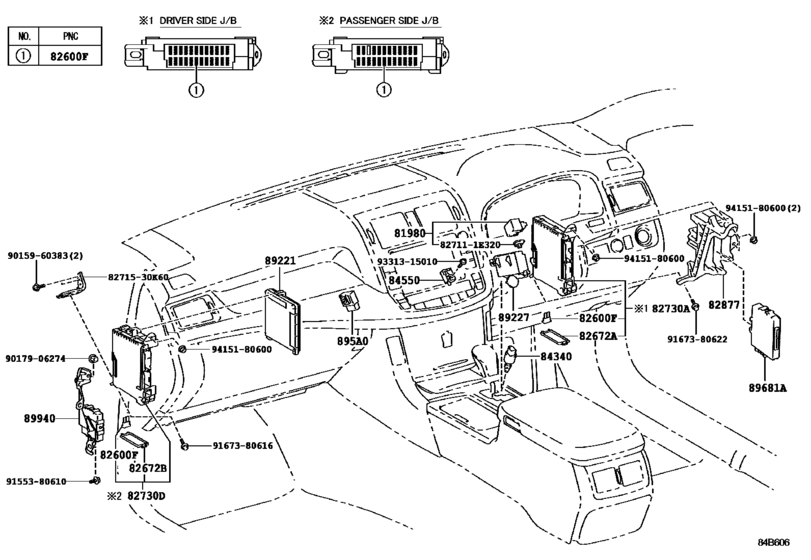

Switch & Relay & Computer ([09.2010 - ] COWL (1009- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2010 - 2012
- Sales region
- General
- Frame
- GRS202
- grade
- ROY
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 09.2010
- To
- 12.2012
- Gear Shift Type
- 6FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
895A0
|
895A0
895A0-30010 Relay Assy, Stop Lamp Control[09.2010 - 12.2012] GRS202 |
895A0-30010 |
US $50.09 |
||
|
81980
|
81980
81980-30170 Flasher Assy, Turn Signal[09.2010 - 12.2012] GRS202 |
81980-30170 |
from US $52.59 |
||
|
82600F
|
82600F
90982-09019 Instrument Panel Fuse[09.2010 - 12.2012] GRS202 5A,MINI FUSE |
90982-09019 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[09.2010 - 12.2012] GRS202 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[09.2010 - 12.2012] GRS202 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[09.2010 - 12.2012] GRS202 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[09.2010 - 12.2012] GRS202 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[09.2010 - 12.2012] GRS202 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[09.2010 - 12.2012] GRS202 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82672A
|
82672A
82672-30270 Cover, Junction Block[09.2010 - 12.2012] GRS202 |
82672-30270 |
US $3.93 |
||
|
82672B
|
82672B
82672-30280 Cover, Junction Block[09.2010 - 12.2012] GRS202 |
82672-30280 |
US $3.93 |
||
|
82730A
|
82730A
82730-30G20 Block Assy, Driver Side Junction[09.2010 - 12.2012] GRS202 |
82730-30G20 |
US $182 |
||
|
82730D
|
82730D
82730-30G30 Block Assy, Passenger Side Junction[09.2010 - 12.2012] GRS202 |
82730-30G30 |
US $182 |
||
|
82877
|
82877
82877-30010 Box, Computer Integration, Rh[09.2010 - 12.2012] GRS202 |
82877-30010 |
US $56.61 |
||
|
84340
|
84340
84340-30110 Switch Assy, Stop Lamp[09.2010 - 12.2012] GRS202 |
84340-30110 |
from US $22.76 |
||
|
84550
|
84550
84550-30080 Switch Assy, Parking Brake[09.2010 - 12.2012] GRS202 |
84550-30080 |
from US $18.39 |
||
|
89221
|
89221
89220-30370
Computer, Multiplex Network Body
[09.2010 - 12.2012] GRS202 |
89220-30370 |
— | ||
|
89227
|
89227
89227-30050 Computer, Multiplex Tilt & Telescopic[09.2010 - 12.2012] GRS202 |
89227-30050 |
US $446.99 |
||
|
89681A
|
89681A
89681-60020 Computer, Power Management ControlPOWER MANAGEMENT CONTROL [09.2010 - 12.2012] GRS202 P/N LABEL=8968160020 |
89681-60020 |
US $794.79 |
||
|
89940
|
89940
89940-30140 Computer Assy, Headlamp Swivel[09.2010 - 12.2012] GRS202 |
89940-30140 |
US $281.01 |
||
|
827111E320
|
827111E320
82711-1E320 Clamp, Wiring Harness |
82711-1E320 |
US $1.12 |
||
|
8271530K60
|
8271530K60
82715-30K60
Bracket,wiring Harness Clamp
|
82715-30K60 |
— | ||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
| replacement | |||||
|
9015960383
|
9015960383
90159-A0010 SCREW WWASHER TAPP |
90159-A0010 |
from US $2.38 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9155380610
|
9155380610
91553-80610 BOLT FLANGE |
91553-80610 |
US $0.96 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9167380622
|
9167380622
91673-80622 BOLT FLANGE |
91673-80622 |
from US $0.68 |
||
|
9331315010
|
9331315010
93313-15010 SCREW |
93313-15010 |
US $1.02 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.72 |
||
