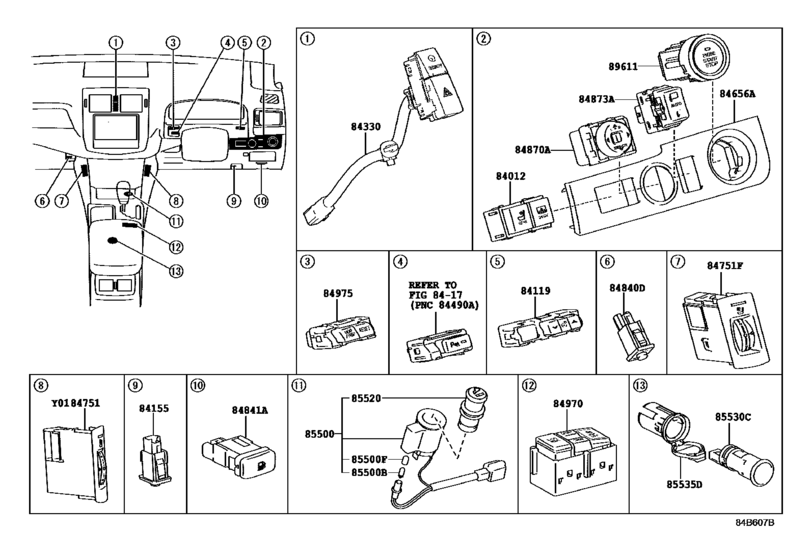

Switch & Relay & Computer ([09.2010 - ] INSTRUMENT PANEL1/2 (1009- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2010 - 2012
- Sales region
- General
- Frame
- GRS202
- grade
- ROY
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 09.2010
- To
- 12.2012
- Gear Shift Type
- 6FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84012
|
84012
84012-30180 Control & Panel Sub-Assy, Integration[09.2010 - 12.2012] GRS202 |
84012-30180 |
US $70.18 |
||
|
84119
|
84119
84119-30280
Rheostat, Light Control
[09.2010 - 12.2012] GRS202 |
84119-30280 |
— | ||
|
84155
|
84155
84155-48010 Switch, Headlamp Swivel Main[09.2010 - 12.2012] GRS202 |
84155-48010 |
US $40.19 |
||
|
84330
|
84330
84330-30070 Switch Assy, Hazard Warning Signal[09.2010 - 12.2012] GRS202 |
84330-30070 |
US $52.85 |
||
|
84656A
|
84656A
84656-30120-A0 Bezel, Switch[09.2010 - 12.2012] GRS202 SHELL,TRIM0# |
84656-30120-A0 |
US $20.82 |
||
|
84656A
|
84656A
84656-30120-B0 Bezel, Switch[09.2010 - 12.2012] GRS202 GRAY,TRIM1# |
84656-30120-B0 |
US $25.04 |
||
|
84751
|
84751
84751-30200 Switch, Seat Heater[09.2010 - 12.2012] GRS202 |
84751-30200 |
US $120.85 |
||
|
84751F
|
84751F
84751-30210 Switch, Seat Heater[09.2010 - 12.2012] GRS202 |
84751-30210 |
US $120.85 |
||
|
84840D
|
84840D
84840-24020 Switch Assy, Luggage Door Opening, Cancel[09.2010 - 12.2012] GRS202 |
84840-24020 |
US $30.23 |
||
|
84841A
|
84841A
84841-48010 Switch, Fuel Lid Opener[09.2010 - 12.2012] GRS202 |
84841-48010 |
US $31.16 |
||
|
84870A
|
84870A
84872-30041 Switch Assy, Outer Mirror[09.2010 - 12.2012] GRS202 |
84872-30041 |
US $55.76 |
||
|
84873A
|
84873A
84873-30030 Switch, Retractable Outer Mirror[09.2010 - 12.2012] GRS202 |
84873-30030 |
US $52.71 |
||
|
84970
|
84970
84970-30160
Switch Assy, Combination
[09.2010 - 12.2012] GRS202 |
84970-30160 |
— | ||
|
84975
|
84975
84975-30050 Switch, Trip[09.2010 - 12.2012] GRS202 |
84975-30050 |
US $47.61 |
||
|
85500
|
85500
85500-30520 Lighter Assy, Cigarette[09.2010 - 12.2012] GRS202 |
85500-30520 |
from US $49.57 |
||
|
85500B
|
85500B
90010-01111 Bulb, Cigarette Lighter[09.2010 - 12.2012] GRS202 13.5V 2W |
90010-01111 |
US $4.37 |
||
|
85500F
|
85500F
84998-10510 Cap, Cigarette Lighter Bulb[09.2010 - 12.2012] GRS202 |
84998-10510 |
US $3.68 |
||
|
85520
|
85520
85520-89101 Knob And Element Assy, Cigarette Lighter[09.2010 - 12.2012] GRS202 |
85520-89101 |
from US $19.85 |
||
|
85530C
|
85530C
85530-42010 Socket Assy, Power Outlet, No.1[09.2010 - 12.2012] GRS202 |
85530-42010 |
from US $26.60 |
||
|
85535D
|
85535D
85535-30020 Cover, Power Outlet Socket, No.1[09.2010 - 12.2012] GRS202 |
85535-30020 |
from US $6.08 |
||
|
89611
|
89611
89611-52012 Switch, Push StartPUSH START [09.2010 - 06.2011] GRS202 |
89611-52012 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-52015 Switch, Push Start[09.2010 - 06.2011] GRS202 |
89611-52015 |
from US $167.90 |
||
|
89611
|
89611
89611-52013 Switch, Push Start[07.2011 - 02.2012] GRS202 |
89611-52013 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-52015 Switch, Push Start[07.2011 - 02.2012] GRS202 |
89611-52015 |
from US $167.90 |
||
|
89611
|
89611
89611-52014
Switch, Push Start
[03.2012 - 12.2012] GRS202 |
89611-52014 |
— | ||
| replacement | |||||
|
89611
|
89611
89611-52015 Switch, Push Start[03.2012 - 12.2012] GRS202 |
89611-52015 |
from US $167.90 |
||
