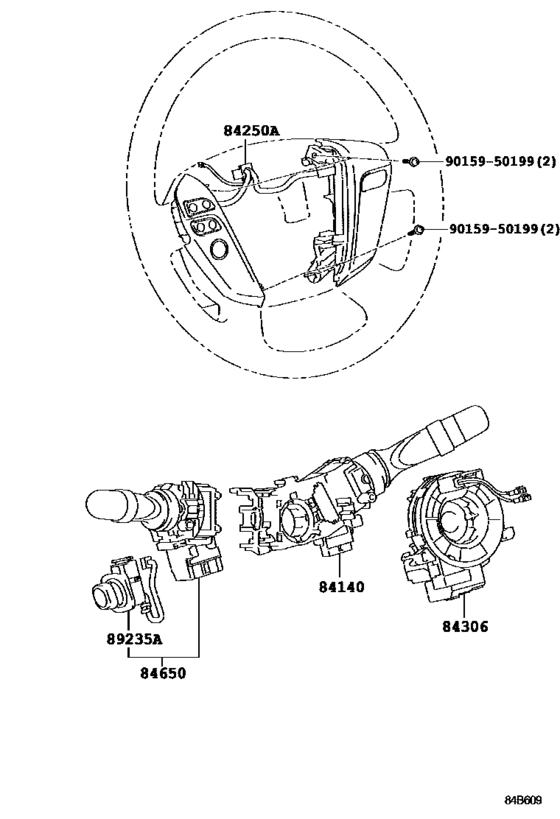

Switch & Relay & Computer ([09.2010 - ] STEERING (1009- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2010 - 2012
- Sales region
- General
- Frame
- GRS202
- grade
- ROY
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 09.2010
- To
- 12.2012
- Gear Shift Type
- 6FC
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-42080 Switch Assy, Headlamp Dimmer[09.2010 - 12.2012] GRS202 |
84140-42080 |
US $103.60 |
||
|
84250A
|
84250A
84250-30480 Switch Assy, Steering PadSTEERING PAD [09.2010 - 12.2012] GRS202 |
84250-30480 |
US $131.04 |
||
|
84306
|
84306
84307-30090 Cable Sub-Assy, Spiral[09.2010 - 12.2012] GRS202 |
84307-30090 |
from US $370.42 |
||
|
84650
|
84650
84652-30600 Switch Assy, Windshield Wiper[09.2010 - 12.2012] GRS202 |
84652-30600 |
US $136.86 |
||
| replacement | |||||
|
84650
|
84650
84652-30601 Switch Assy, Windshield Wiper[09.2010 - 12.2012] GRS202 |
84652-30601 |
US $136.86 |
||
|
89235A
|
89235A
89235-30120 Switch, Tilt & Telescopic[09.2010 - 12.2012] GRS202 |
89235-30120 |
US $33.37 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.78 |
||
