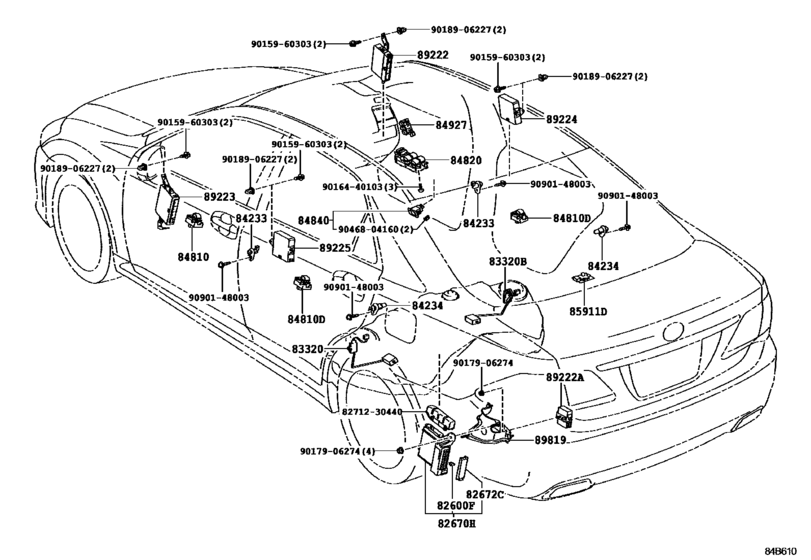

Switch & Relay & Computer ([09.2010 - ] DOOR,ROOF,FLOOR & LUGGAGE (1009- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2010 - 2012
- Sales region
- General
- Frame
- GRS202
- grade
- ROY
- ENGINE
- 3GRFE
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 09.2010
- To
- 12.2012
- Gear Shift Type
- 6FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82600F
|
82600F
90982-09019 Instrument Panel Fuse[09.2010 - 12.2012] GRS202 5A,MINI FUSE |
90982-09019 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[09.2010 - 12.2012] GRS202 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[09.2010 - 12.2012] GRS202 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[09.2010 - 12.2012] GRS202 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[09.2010 - 12.2012] GRS202 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[09.2010 - 12.2012] GRS202 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[09.2010 - 12.2012] GRS202 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82670H
|
82670H
82670-30300 Block Assy, Luggage Room Junction[09.2010 - 12.2012] GRS202 |
82670-30300 |
US $182 |
||
|
82672C
|
82672C
82672-30290 Cover, Junction Block[09.2010 - 12.2012] GRS202 |
82672-30290 |
US $3.93 |
||
|
83320
|
83320
83320-30530 Gage Assy, Fuel Sender[09.2010 - 12.2012] GRS202 |
83320-30530 |
US $55.02 |
||
|
83320B
|
83320B
83320-30540 Gage Assy, Fuel Sender[09.2010 - 12.2012] GRS202 |
83320-30540 |
US $55.02 |
||
|
84233
|
84233
84231-50190 Switch Assy, Courtesy Lamp (For Front Door)[09.2010 - 12.2012] GRS202 |
84231-50190 |
from US $10.56 |
||
|
84234
|
84234
84231-30380 Switch, Courtesy Lamp[09.2010 - 12.2012] GRS202 |
84231-30380 |
US $10.56 |
||
|
84810
|
84810
84810-33120 Switch Assy, Power Window Regulator[09.2010 - 12.2012] GRS202 |
84810-33120 |
from US $54.80 |
||
| replacement | |||||
|
84810
|
84810
84810-06090 Switch Assy, Power Window Regulator[09.2010 - 12.2012] GRS202 |
84810-06090 |
US $211.68 |
||
|
84810D
|
84810D
84810-33120 Switch Assy, Power Window Regulator[09.2010 - 12.2012] GRS202 |
84810-33120 |
from US $54.80 |
||
| replacement | |||||
|
84810D
|
84810D
84810-06090 Switch Assy, Power Window Regulator[09.2010 - 12.2012] GRS202 |
84810-06090 |
US $211.68 |
||
|
84820
|
84820
84040-33080 Master Switch Assy, Power window regulator[09.2010 - 12.2012] GRS202 |
84040-33080 |
from US $177.22 |
||
|
84840
|
84840
84840-30140-A2 Switch Assy, Luggage Compartment Door Opening[09.2010 - 12.2012] GRS202 SHELL,TRIM0# |
84840-30140-A2 |
US $34.36 |
||
|
84840
|
84840
84840-30140-B6 Switch Assy, Luggage Compartment Door Opening[09.2010 - 12.2012] GRS202 GRAY,TRIM1# |
84840-30140-B6 |
US $41.35 |
||
|
84927
|
84927
84927-30080-A0 Switch, Seat Memory[09.2010 - 12.2012] GRS202 SHELL,TRIM0# |
84927-30080-A0 |
US $55.47 |
||
|
84927
|
84927
84927-30080-B0 Switch, Seat Memory[09.2010 - 12.2012] GRS202 GRAY,TRIM1# |
84927-30080-B0 |
US $66.68 |
||
|
85911D
|
85911D
85911-30020 Relay, Rear Sunshade[09.2010 - 12.2012] GRS202 |
85911-30020 |
US $235.87 |
||
|
89222
|
89222
89222-30230 Computer, Multiplex Network Door, Front RhMULTIPLEX NETWORK DOOR, FRONT RH [09.2010 - 12.2012] GRS202 |
89222-30230 |
US $315.95 |
||
|
89222A
|
89222A
89222-30161 Computer, Multiplex Network Door[09.2010 - 12.2012] GRS202 |
89222-30161 |
US $163.07 |
||
|
89223
|
89223
89223-30100 Computer, Multiplex Network Door, Front LhMULTIPLEX NETWORK DOOR, FRONT LH [09.2010 - 12.2012] GRS202 |
89223-30100 |
US $315.95 |
||
|
89224
|
89224
89224-30120 Computer, Multiplex Network Door, Rear RhMULTIPLEX NETWORK DOOR, REAR RH [09.2010 - 12.2012] GRS202 |
89224-30120 |
US $227.14 |
||
|
89225
|
89225
89225-30060 Computer, Multiplex Network Door, Rear LhMULTIPLEX NETWORK DOOR, REAR LH [09.2010 - 12.2012] GRS202 |
89225-30060 |
US $227.14 |
||
|
89819
|
89819
89819-30020 Bracket, Seat Belt Control[09.2010 - 12.2012] GRS202 |
89819-30020 |
US $21.40 |
||
|
8271230440
|
8271230440
82712-30440
Hose, Suction
|
82712-30440 |
— | ||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9018906227
|
9018906227
90189-06227 GROMMET SCREW |
90189-06227 |
from US $0.72 |
||
|
9046804160
|
9046804160
90468-04160 Clip, Instrument Panel, No.2 |
90468-04160 |
from US $0.96 |
||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.76 |
||
