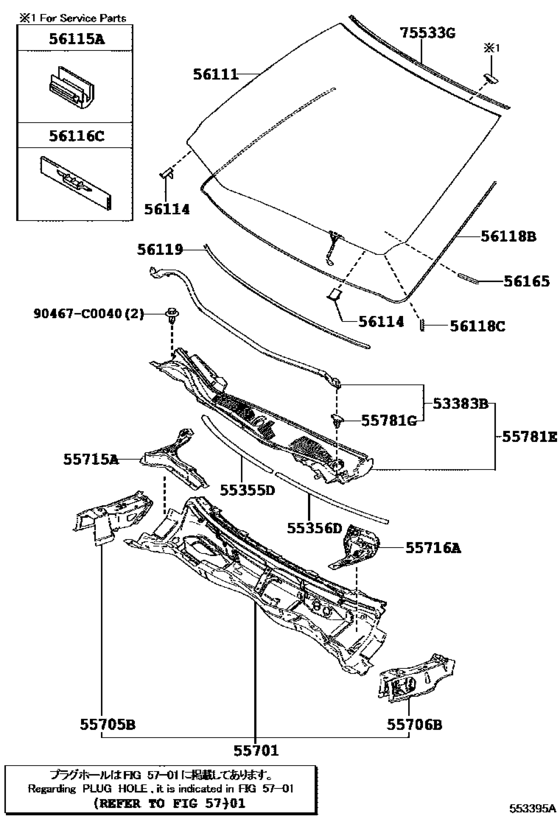

Cowl Panel & Windshield Glass ([01.2015 - ] (1501- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- GRS218
- grade
- ROYEX
- body
- SED
- ENGINE
- 5GRFE
- TRANSMISSION
- ATM
- Model
- CROWN (CHINA)
- From
- 01.2015
- Gear Shift Type
- 6FC
- No.of Doors
- 4D
- Vehicle Model
- Crown
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53383B
|
53383B
53383-0N040
Seal, Hood To Cowl Top
[01.2015 -] ARS212,GRS218 |
53383-0N040 |
— | ||
|
55355D
|
55355D
55355-0N030
Cushion, Instrument Panel, No.1
[01.2015 -] ARS212,GRS218 |
55355-0N030 |
— | ||
|
55356D
|
55356D
55356-0N020
Cushion, Instrument Panel, No.2
[01.2015 -] ARS212,GRS218 |
55356-0N020 |
— | ||
|
55701
|
55701
55700-0N030
Panel Sub-Assy, Cowl
[01.2015 -] ARS212,GRS218 |
55700-0N030 |
— | ||
|
55705B
|
55705B
55705-0N030
Panel Sub-Assy, Cowl Top Side, Rh
[01.2015 -] ARS212,GRS218 |
55705-0N030 |
— | ||
|
55706B
|
55706B
55706-0N030
Panel Sub-Assy, Cowl Top Side, Lh
[01.2015 -] ARS212,GRS218 |
55706-0N030 |
— | ||
|
55715A
|
55715A
55715-0N030
Brace, Cowl Top To Apron, Rh
[01.2015 -] ARS212,GRS218 |
55715-0N030 |
— | ||
|
55716A
|
55716A
55716-0N030
Brace, Cowl Top To Apron, Lh
[01.2015 -] ARS212,GRS218 |
55716-0N030 |
— | ||
|
55781E
|
55781E
55708-0N030
Louver Sub-Assy, Cowl Top Ventilator
[01.2015 -] ARS212,GRS218 |
55708-0N030 |
— | ||
|
55781G
|
55781G
90467-08108 Clip(For Hood To Cowl Top Seal)[01.2015 -] ARS212,GRS218 |
90467-08108 |
from US $0.82 |
||
|
56111
|
56111
56101-0N901
Glass, Windshield
[01.2015 - 08.2016] ARS212,GRS218..ROYAL,ROYEX MARK=FY |
56101-0N901 |
— | ||
| replacement | |||||
|
56111
|
56111
56101-0N905
Glass, Windshield
[01.2015 - 08.2016] ARS212,GRS218..ROYAL,ROYEX MARK=FY |
56101-0N905 |
— | ||
|
56111
|
56111
56101-0N902
Glass, Windshield
[01.2015 - 08.2016] ARS212,GRS218..ROYAL,ROYEX MARK=ASAHI |
56101-0N902 |
— | ||
| replacement | |||||
|
56111
|
56111
56101-0N906
Glass, Windshield
[01.2015 - 08.2016] ARS212,GRS218..ROYAL,ROYEX MARK=ASAHI |
56101-0N906 |
— | ||
|
56111
|
56111
56101-0N905
Glass, Windshield
[08.2016 -] ARS212,GRS218..ROYAL,ROYEX MARK=FY |
56101-0N905 |
— | ||
|
56111
|
56111
56101-0N906
Glass, Windshield
[08.2016 -] ARS212,GRS218..ROYAL,ROYEX MARK=ASAHI |
56101-0N906 |
— | ||
|
56114
|
56114
56114-0N010
Retainer, Windshield Glass
[01.2015 -] ARS212,GRS218 |
56114-0N010 |
— | ||
|
56115A
|
56115A
56115-0N010
Stopper, Windshield Glass, No.1
[01.2015 -] ARS212,GRS218 |
56115-0N010 |
— | ||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[01.2015 -] ARS212,GRS218 |
56116-22050 |
from US $1.38 |
||
|
56118B
|
56118B
56117-0N030
Dam, Window Glass Adhesive, No.2
[01.2015 -] ARS212,GRS218 L=2830 |
56117-0N030 |
— | ||
|
56118C
|
56118C
56118-30100 Dam, Window Glass Adhesive, No.2[01.2015 -] ARS212,GRS218 |
56118-30100 |
US $3.85 |
||
|
56119
|
56119
56119-0N020
Seal, Windshield Glass
[01.2015 -] ARS212,GRS218 |
56119-0N020 |
— | ||
|
56165
|
56165
56165-0G010
Cover, Front Window Inner Moulding, Lh
[01.2015 -] ARS212,GRS218 GLASS MARK=ASAHI |
56165-0G010 |
— | ||
|
56165
|
56165
56165-30010 Cover, Front Window Inner Moulding, Lh[01.2015 -] ARS212,GRS218 GLASS MARK=FY |
56165-30010 |
from US $5.60 |
||
|
75533G
|
75533G
75531-0N020
Moulding, Windshield, Outside
[01.2015 -] ARS212,GRS218 GLASS MARK=FY |
75531-0N020 |
— | ||
|
75533G
|
75533G
75531-0N030
Moulding, Windshield, Outside
[01.2015 -] ARS212,GRS218 GLASS MARK=ASAHI |
75531-0N030 |
— | ||
