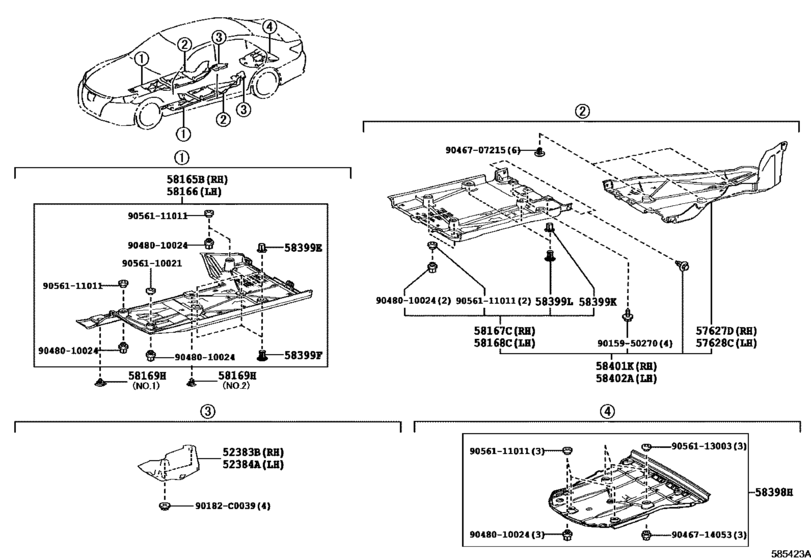

Floor Pan & Lower Back Panel ([01.2015 - ] FLOOR UNDER COVER (1501- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- GRS218
- grade
- ROYEX
- body
- SED
- ENGINE
- 5GRFE
- TRANSMISSION
- ATM
- Model
- CROWN (CHINA)
- From
- 01.2015
- Gear Shift Type
- 6FC
- No.of Doors
- 4D
- Vehicle Model
- Crown
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52383B
|
52383B
52383-0N010
Protector, Differential Support, No.1
[01.2015 -] ARS212,GRS218 |
52383-0N010 |
— | ||
|
52384A
|
52384A
52384-0N010
Protector, Differential Support, No.2
[01.2015 -] ARS212,GRS218 |
52384-0N010 |
— | ||
|
57627D
|
57627D
57627-0N020
Cover, Rear Floor Side Member
[01.2015 -] ARS212,GRS218 |
57627-0N020 |
— | ||
|
57628C
|
57628C
57628-0N020
Cover, Rear Floor Side Member, Lh
[01.2015 -] ARS212,GRS218 |
57628-0N020 |
— | ||
|
58165B
|
58165B
58165-0N030
Cover, Front Floor, Rh
[01.2015 -] ARS212,GRS218 |
58165-0N030 |
— | ||
|
58166
|
58166
58166-0N030
Cover, Front Floor, Lh
[01.2015 -] ARS212,GRS218 |
58166-0N030 |
— | ||
|
58167C
|
58167C
58167-0N020
Cover, Front Floor, Center Rh
[01.2015 -] ARS212,GRS218 |
58167-0N020 |
— | ||
|
58168C
|
58168C
58168-0N020
Cover, Front Floor, Center Lh
[01.2015 -] ARS212,GRS218 |
58168-0N020 |
— | ||
|
58169H
|
58169H
58169-30040
Patch, Front Floor, Rear
[01.2015 -] ARS212,GRS218 NO.1:REFER ILLUST. |
58169-30040 |
— | ||
|
58169H
|
58169H
58169-30050
Patch, Front Floor, Rear
[01.2015 -] ARS212,GRS218 NO.2:REFER ILLUST. |
58169-30050 |
— | ||
|
58398H
|
58398H
58398-0N020
Cover, Floor Under, No.1
[01.2015 -] ARS212,GRS218 |
58398-0N020 |
— | ||
|
58399E
|
58399E
90467-17026-A0 Clip, No.1(For Front Fender Seal)[01.2015 -] ARS212,GRS218 SUPER WHITE 2 |
90467-17026-A0 |
from US $1.13 |
||
|
58399F
|
58399F
90467-17027-C0 Clip, No.2(For Front Fender Seal)[01.2015 -] ARS212,GRS218 BLACK |
90467-17027-C0 |
from US $1.37 |
||
|
58399K
|
58399K
90467-17026-A0 Clip, No.1(For Front Fender Seal)[01.2015 -] ARS212,GRS218 SUPER WHITE 2 |
90467-17026-A0 |
from US $1.13 |
||
|
58399L
|
58399L
90467-17027-C0 Clip, No.2(For Front Fender Seal)[01.2015 -] ARS212,GRS218 BLACK |
90467-17027-C0 |
from US $1.37 |
||
|
58401K
|
58401K
58401-0N010
Board Sub-Assy, Rear Floor, No.1
[01.2015 -] ARS212,GRS218 |
58401-0N010 |
— | ||
|
58402A
|
58402A
58402-0N010
Board Sub-Assy, Rear Floor, No.2
[01.2015 -] ARS212,GRS218 |
58402-0N010 |
— | ||
|
90182C0039
|
90182C0039
90182-C0039
New Genuine Part
|
90182-C0039 |
— | ||
|
9015950270
|
9015950270
90159-50270 SCREW WWASHER |
90159-50270 |
US $1.12 |
||
|
9046707215
|
9046707215
90467-07215 Clip |
90467-07215 |
from US $0.82 |
||
|
9046714053
|
9046714053
90467-14053 Clip, No.1(For Floor Under Cover) |
90467-14053 |
from US $1.19 |
||
|
9048010024
|
9048010024
90480-10024 Clip, No.2(For Floor Under Cover) |
90480-10024 |
from US $1.60 |
||
|
9056110021
|
9056110021
90561-10021 SPACER |
90561-10021 |
US $1.12 |
||
|
9056111011
|
9056111011
90561-11011 Clip, No.1(For Floor Under Cover) |
90561-11011 |
from US $1.12 |
||
|
9056113003
|
9056113003
90561-13003 Clip, No.4(For Floor Under Cover) |
90561-13003 |
US $1.12 |
