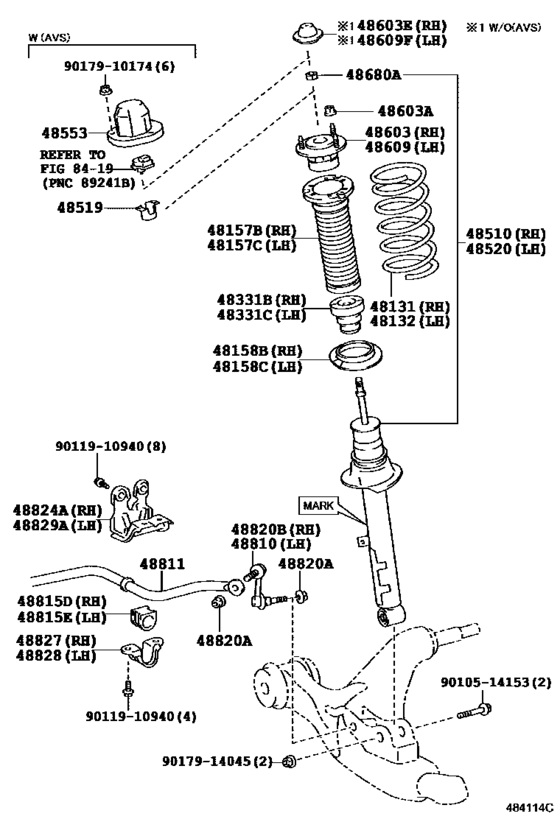

Front Spring & Shock Absorber ([01.2015 - ] (1501- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- GRS218
- grade
- ROYEX
- body
- SED
- ENGINE
- 5GRFE
- TRANSMISSION
- ATM
- Model
- CROWN (CHINA)
- From
- 01.2015
- Gear Shift Type
- 6FC
- No.of Doors
- 4D
- Vehicle Model
- Crown
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-0N070
Spring, Front Coil, Rh
[01.2015 -] ARS212;GRS218..ROY,ROYAL,ROYEX |
48131-0N070 |
— | ||
|
48132
|
48132
48131-0N070
Spring, Front Coil, Rh
[01.2015 -] ARS212;GRS218..ROY,ROYAL,ROYEX |
48131-0N070 |
— | ||
|
48157B
|
48157B
48157-0N020
Insulator, Front Coil Spring, Upper Rh
[01.2015 -] ARS212,GRS218 |
48157-0N020 |
— | ||
|
48157C
|
48157C
48157-0N020
Insulator, Front Coil Spring, Upper Rh
[01.2015 -] ARS212,GRS218 |
48157-0N020 |
— | ||
|
48158B
|
48158B
48158-0N010
Insulator, Front Coil Spring, Lower Rh
[01.2015 -] ARS212,GRS218 |
48158-0N010 |
— | ||
|
48158C
|
48158C
48158-0N010
Insulator, Front Coil Spring, Lower Rh
[01.2015 -] ARS212,GRS218 |
48158-0N010 |
— | ||
|
48331B
|
48331B
48331-30230 Bumper, Front Spring, Rh[01.2015 -] ARS212,GRS218 |
48331-30230 |
US $15.20 |
||
|
48331C
|
48331C
48331-30230 Bumper, Front Spring, Rh[01.2015 -] ARS212,GRS218 |
48331-30230 |
US $15.20 |
||
|
48510
|
48510
48510-8Z186
Absorber Assy, Shock, Front Rh
[01.2015 -] GRS218..ROY,ROYAL,ROYEX MARK 48510-0N060 |
48510-8Z186 |
— | ||
|
48520
|
48520
48520-8Z068
Absorber Assy, Shock, Front Lh
[01.2015 -] GRS218..ROY,ROYAL,ROYEX MARK 48520-0N060 |
48520-8Z068 |
— | ||
|
48603
|
48603
48609-0P040
Support Sub-Assy, Front Suspension, Rh
[01.2015 -] ARS212,GRS218..ROY,ROYAL,ROYEX |
48609-0P040 |
— | ||
|
48603A
|
48603A
90178-10014 Nut(For Front Suspension Support)[01.2015 -] ARS212,GRS218 |
90178-10014 |
from US $1.19 |
||
|
48603E
|
48603E
90950-C1020
Plug, Hole(For Front Suspension Support Rh)
[01.2015 -] ARS212,GRS218..ROY,ROYAL,ROYEX |
90950-C1020 |
— | ||
|
48609
|
48609
48609-0P040
Support Sub-Assy, Front Suspension, Rh
[01.2015 -] ARS212,GRS218..ROY,ROYAL,ROYEX |
48609-0P040 |
— | ||
|
48609F
|
48609F
90950-C1020
Plug, Hole(For Front Suspension Support Rh)
[01.2015 -] ARS212,GRS218..ROY,ROYAL,ROYEX |
90950-C1020 |
— | ||
|
48680A
|
48680A
90177-12002 Nut[01.2015 -] ARS212,GRS218 |
90177-12002 |
US $1.44 |
||
|
48810
|
48810
48810-0N010
Link Assy, Front Stabilizer, Lh
[01.2015 -] ARS212,GRS218 |
48810-0N010 |
— | ||
|
48811
|
48811
48811-0N060
Bar, Stabilizer, Front
[01.2015 -] ARS212,GRS218 |
48811-0N060 |
— | ||
|
48815D
|
48815D
48815-0N060
Bush, Front Stabilizer Bar, No.1
[01.2015 -] ARS212,GRS218 |
48815-0N060 |
— | ||
|
48815E
|
48815E
48815-0N060
Bush, Front Stabilizer Bar, No.1
[01.2015 -] ARS212,GRS218 |
48815-0N060 |
— | ||
|
48820A
|
48820A
90178-C0018
Nut(For Front Stabilizer Link)
[01.2015 -] ARS212,GRS218 (L) |
90178-C0018 |
— | ||
|
48820A
|
48820A
94151-21241 Nut(For Front Stabilizer Link)[01.2015 -] ARS212,GRS218 (J) |
94151-21241 |
from US $1.01 |
||
|
48820B
|
48820B
48820-0N010
Link Assy, Front Stabilizer, Rh
[01.2015 -] ARS212,GRS218 |
48820-0N010 |
— | ||
|
48824A
|
48824A
48809-0N010
Bracket, Front Stabilizer, No.1 Rh
[01.2015 -] ARS212,GRS218 (L) |
48809-0N010 |
— | ||
|
48824A
|
48824A
48809-30060 Bracket, Front Stabilizer, No.1 Rh[01.2015 -] ARS212,GRS218 (J) |
48809-30060 |
US $21.99 |
||
|
48827
|
48827
48824-30150 Bracket, Front Stabilizer, No.2 Rh[01.2015 -] ARS212,GRS218 |
48824-30150 |
US $15.03 |
||
|
48828
|
48828
48824-30150 Bracket, Front Stabilizer, No.2 Rh[01.2015 -] ARS212,GRS218 |
48824-30150 |
US $15.03 |
||
|
48829A
|
48829A
48809-0N010
Bracket, Front Stabilizer, No.1 Rh
[01.2015 -] ARS212,GRS218 (L) |
48809-0N010 |
— | ||
|
48829A
|
48829A
48809-30060 Bracket, Front Stabilizer, No.1 Rh[01.2015 -] ARS212,GRS218 (J) |
48809-30060 |
US $21.99 |
||
|
9010514153
|
9010514153
90105-14153 Bolt(For Front Shock Absorber Bracket Lower) |
90105-14153 |
from US $3.30 |
||
|
9011910940
|
9011910940
90119-10940 BOLT WWASHER |
90119-10940 |
US $1.60 |
||
|
9017910174
|
9017910174
90179-10174 Nut(For Front Pneumatic Cylinder) |
90179-10174 |
US $1.44 |
||
|
9017914045
|
9017914045
90179-14045 Nut(For Front Shock Absorber Bracket Lower) |
90179-14045 |
from US $1.50 |
