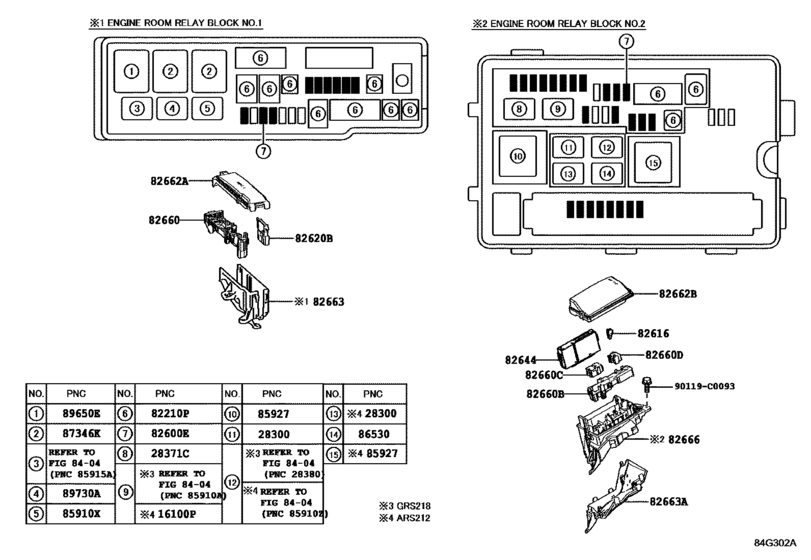

Switch & Relay & Computer ([01.2015 - ] ENGINE ROOM RELAY BLOCK (1501- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- GRS218
- grade
- ROYEX
- body
- SED
- ENGINE
- 5GRFE
- TRANSMISSION
- ATM
- Model
- CROWN (CHINA)
- From
- 01.2015
- Gear Shift Type
- 6FC
- No.of Doors
- 4D
- Vehicle Model
- Crown
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-21020 Relay Assy, Starter[01.2015 -] 5GRFE..GRS218 |
28300-21020 |
from US $40.58 |
||
|
28371C
|
28371C
90987-T2005
Relay, Water Pump
[01.2015 -] 8ARFTS,5GRFE..ARS212,GRS218 |
90987-T2005 |
— | ||
|
82210P
|
82210P
90982-08294 Fusible Link[01.2015 -] ARS212,GRS218 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08295 Fusible Link[01.2015 -] ARS212,GRS218 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08296 Fusible Link[01.2015 -] ARS212,GRS218 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08301 Fusible Link[01.2015 -] ARS212,GRS218 50A-30A-40A,FEMALE |
90982-08301 |
US $6.24 |
||
|
82210P
|
82210P
90982-08303 Fusible Link[01.2015 -] ARS212,GRS218 50A-50A-50A,FEMALE |
90982-08303 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08304 Fusible Link[01.2015 -] ARS212,GRS218 60A,TERMINAL:FEMALE |
90982-08304 |
US $6.24 |
||
|
82210P
|
82210P
90982-08305 Fusible Link[01.2015 -] ARS212,GRS218 80A,TERMINAL:FEMALE |
90982-08305 |
US $6.24 |
||
|
82600E
|
82600E
90982-09019 Instrument Panel Fuse[01.2015 -] ARS212,GRS218 5A,MINI FUSE |
90982-09019 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09020 Fusible Link[01.2015 -] ARS212,GRS218 7.5A,MINI FUSE |
90982-09020 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09021 Fusible Link[01.2015 -] ARS212,GRS218 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09022 Instrument Panel Fuse[01.2015 -] ARS212,GRS218 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09023 Instrument Panel Fuse[01.2015 -] ARS212,GRS218 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09024 Instrument Panel Fuse[01.2015 -] ARS212,GRS218 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09025 Instrument Panel Fuse[01.2015 -] ARS212,GRS218 30A,MINI FUSE |
90982-09025 |
from US $0.88 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[01.2015 -] ARS212,GRS218 |
82616-58010 |
from US $2.40 |
||
|
82620B
|
82620B
82620-53010 Block Assy, Fusible Link[01.2015 -] ARS212,GRS218 |
82620-53010 |
from US $19.92 |
||
|
82644
|
82644
82644-0N010
Computer, Semiconductor Power Integration
[01.2015 -] ARS212,GRS218 |
82644-0N010 |
— | ||
|
82660
|
82660
82660-53030
Block Assy, Relay, Engine Room
[01.2015 -] ARS212,GRS218 |
82660-53030 |
— | ||
|
82660B
|
82660B
82660-30C70 Block Assy, Relay[01.2015 -] ARS212,GRS218 |
82660-30C70 |
US $48.34 |
||
|
82660C
|
82660C
82660-75010 Block Assy, RelayRELAY [01.2015 -] ARS212,GRS218 |
82660-75010 |
from US $11.50 |
||
|
82660D
|
82660D
82660-0H070 Block Assy, Relay[01.2015 -] ARS212,GRS218 |
82660-0H070 |
US $6.99 |
||
|
82662A
|
82662A
82662-30D00
Cover, Relay Block, Upper, No.1
[01.2015 -] GRS218 |
82662-30D00 |
— | ||
|
82662B
|
82662B
82662-30D20
Cover, Relay Block, Upper, No.2
[01.2015 -] GRS218 |
82662-30D20 |
— | ||
|
82663
|
82663
82663-30260
Cover, Relay Block, Lower
[01.2015 -] ARS212,GRS218 |
82663-30260 |
— | ||
|
82663A
|
82663A
82663-30320 Cover, Relay Block, Lower, No.2[01.2015 -] ARS212,GRS218 |
82663-30320 |
from US $28.83 |
||
|
82666
|
82666
82666-30C30 Holder, Connector[01.2015 -] ARS212,GRS218 |
82666-30C30 |
from US $49.80 |
||
|
85910X
|
85910X
90987-T2005
Relay, Water Pump
[01.2015 -] ARS212,GRS218..ROYAL,ROYEX |
90987-T2005 |
— | ||
|
85927
|
85927
90987-T2004
Relay, Water Pump
[01.2015 -] GRS218 |
90987-T2004 |
— | ||
|
86530
|
86530
90987-T2005
Relay, Water Pump
[01.2015 -] ARS212,GRS218 |
90987-T2005 |
— | ||
|
87346K
|
87346K
90987-T2004
Relay, Water Pump
[01.2015 -] ARS212,GRS218 |
90987-T2004 |
— | ||
|
89650E
|
89650E
90987-T2004
Relay, Water Pump
[01.2015 -] ARS212,GRS218 |
90987-T2004 |
— | ||
|
89730A
|
89730A
90987-T2005
Relay, Water Pump
[01.2015 -] ARS212,GRS218 |
90987-T2005 |
— | ||
|
90119C0093
|
90119C0093
90119-C0093
New Genuine Part
|
90119-C0093 |
— |
