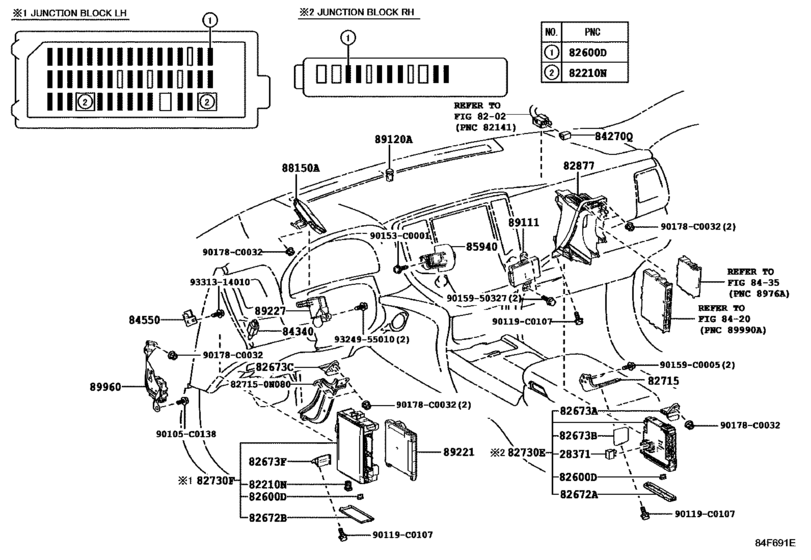

Switch & Relay & Computer ([01.2015 - ] COWL (1501- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- GRS218
- grade
- ROYEX
- body
- SED
- ENGINE
- 5GRFE
- TRANSMISSION
- ATM
- Model
- CROWN (CHINA)
- From
- 01.2015
- Gear Shift Type
- 6FC
- No.of Doors
- 4D
- Vehicle Model
- Crown
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210N
|
82210N
90982-08306 Fusible Link[01.2015 -] ARS212,GRS218 30A,TERMINAL:FEMALE |
90982-08306 |
US $6.24 |
||
|
82600D
|
82600D
90982-09019 Instrument Panel Fuse[01.2015 -] ARS212,GRS218 5A,MINI FUSE |
90982-09019 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09020 Fusible Link[01.2015 -] ARS212,GRS218 7.5A,MINI FUSE |
90982-09020 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09021 Fusible Link[01.2015 -] ARS212,GRS218 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09022 Instrument Panel Fuse[01.2015 -] ARS212,GRS218 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600D
|
82600D
90982-09023 Instrument Panel Fuse[01.2015 -] ARS212,GRS218 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09025 Instrument Panel Fuse[01.2015 -] ARS212,GRS218 30A,MINI FUSE |
90982-09025 |
from US $0.88 |
||
|
82672B
|
82672B
82672-30470
Cover, Junction Block
[01.2015 -] ARS212,GRS218..ROYAL,ROYEX |
82672-30470 |
— | ||
|
82673C
|
82673C
82673-53010
Bracket, Junction Block
[01.2015 -] ARS212,GRS218 |
82673-53010 |
— | ||
|
82673F
|
82673F
82817-30W60 Bracket, Junction Block[01.2015 -] ARS212,GRS218 |
82817-30W60 |
US $4.37 |
||
|
82715
|
82715
82715-0N070
Bracket,wiring Harness Clamp
[01.2015 -] ARS212,GRS218 |
82715-0N070 |
— | ||
|
82730F
|
82730F
82730-30L90
Block Assy, Junction, Lh
[01.2015 -] ARS212,GRS218..ROYAL,ROYEX |
82730-30L90 |
— | ||
|
82877
|
82877
82877-0N010
Box, Computer Integration, Rh
[01.2015 -] ARS212,GRS218 |
82877-0N010 |
— | ||
|
84340
|
84340
84340-30130 Switch Assy, Stop Lamp[01.2015 -] ARS212,GRS218 |
84340-30130 |
from US $42.10 |
||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[01.2015 -] ARS212,GRS218 |
84550-16060 |
from US $17.48 |
||
|
88150A
|
88150A
88150-30190
Computer Assy, Driving Support
[01.2015 -] GRS218..ROY,ROYEX,ROYVP |
88150-30190 |
— | ||
|
89111
|
89111
89100-30220
Computer, Network Gateway
[01.2015 - 08.2015] GRS218..ROY,ROYEX,ROYVP |
89100-30220 |
— | ||
|
89111
|
89111
89100-30221 Computer, Network Gateway[08.2015 -] ARS212,GRS218..ROY,ROYEX,ROYVP |
89100-30221 |
US $174.72 |
||
|
89120A
|
89120A
89121-0E040
Sensor, Automatic Light Control
[04.2016 -] ARS212,GRS218 |
89121-0E040 |
— | ||
|
89120A
|
89120A
89121-30020 Sensor, Automatic Light Control[01.2015 - 03.2016] ARS212,GRS218 |
89121-30020 |
from US $56.10 |
||
|
89221
|
89221
89220-0N030
Computer, Multiplex Network Body
[01.2015 -] ARS212,GRS218..ROYAL,ROYEX |
89220-0N030 |
— | ||
|
89960
|
89960
89960-30190
Computer Assy, Headlamp Leveling
[01.2015 -] GRS218 |
89960-30190 |
— | ||
|
90105C0138
|
90105C0138
90105-C0138
New Genuine Part
|
90105-C0138 |
— | ||
|
90119C0107
|
90119C0107
90119-C0107
New Genuine Part
|
90119-C0107 |
— | ||
|
90153C0001
|
90153C0001
90153-C0001
New Genuine Part
|
90153-C0001 |
— | ||
|
90159C0005
|
90159C0005
90159-C0005
New Genuine Part
|
90159-C0005 |
— | ||
|
90178C0032
|
90178C0032
90178-C0032
Nut, Wire Adjusting, No.1
|
90178-C0032 |
— | ||
|
827150N080
|
827150N080
82715-0N080
Bracket,wiring Harness Clamp
|
82715-0N080 |
— | ||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.74 |
||
|
9324955010
|
9324955010
93249-55010 New Genuine Part |
93249-55010 |
US $0.73 |
||
|
9331314010
|
9331314010
93313-14010 New Genuine Part |
93313-14010 |
US $0.73 |
