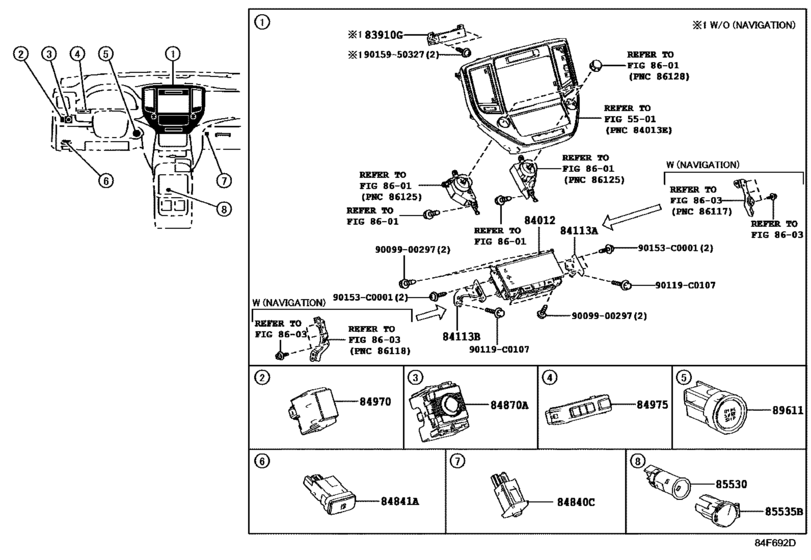

Switch & Relay & Computer ([01.2015 - ] INSTRUMENT PANEL (1501- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- GRS218
- grade
- ROYEX
- body
- SED
- ENGINE
- 5GRFE
- TRANSMISSION
- ATM
- Model
- CROWN (CHINA)
- From
- 01.2015
- Gear Shift Type
- 6FC
- No.of Doors
- 4D
- Vehicle Model
- Crown
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83910G
|
83910G
83910-0N010
Clock Assy
[01.2015 -] ARS212,GRS218..ROYAL,ROYEX |
83910-0N010 |
— | ||
|
84012
|
84012
84012-0N060-B0
Control & Panel Sub-Assy, Integration
[01.2015 - 10.2015] GRS218 DK.SILVER,TRIM0# |
84012-0N060-B0 |
— | ||
|
84012
|
84012
84012-0N060-C0
Control & Panel Sub-Assy, Integration
[01.2015 - 10.2015] GRS218..ROY,ROYEX,ROYVP BLACK,TRIM2# |
84012-0N060-C0 |
— | ||
|
84012
|
84012
84012-0N061-B0
Control & Panel Sub-Assy, Integration
[10.2015 -] GRS218 DK.SILVER,TRIM0# |
84012-0N061-B0 |
— | ||
|
84012
|
84012
84012-0N061-C0
Control & Panel Sub-Assy, Integration
[10.2015 -] GRS218..ROY,ROYEX,ROYVP BLACK,TRIM2# |
84012-0N061-C0 |
— | ||
|
84113A
|
84113A
84113-0N010
Bracket, Switch, No.1
[01.2015 -] ARS212,GRS218..ROYAL,ROYEX |
84113-0N010 |
— | ||
|
84113B
|
84113B
84113-0N020
Bracket, Switch, No.2
[01.2015 -] ARS212,GRS218..ROYAL,ROYEX |
84113-0N020 |
— | ||
|
84840C
|
84840C
84840-0N010
Switch Assy, Luggage Compartment Door Opening
[01.2015 -] ARS212,GRS218 |
84840-0N010 |
— | ||
|
84841A
|
84841A
84841-0N010
Switch, Fuel Lid Opener
[01.2015 -] ARS212,GRS218 |
84841-0N010 |
— | ||
|
84870A
|
84870A
84872-0N030
Switch Assy, Outer Mirror
[01.2015 -] ARS212,GRS218..ROYAL,ROYEX |
84872-0N030 |
— | ||
|
84975
|
84975
84975-0N020
Switch, Trip
[01.2015 -] ARS212,GRS218 |
84975-0N020 |
— | ||
|
85530
|
85530
85530-0N010
Socket Assy, Power Outlet, No.1
[01.2015 -] ARS212,GRS218 |
85530-0N010 |
— | ||
|
85535B
|
85535B
85535-0N010
Cover, Power Outlet Socket, No.1
[01.2015 -] ARS212,GRS218 |
85535-0N010 |
— | ||
|
89611
|
89611
89611-0R010
Switch, Push Start
[01.2015 - 07.2015] GRS218 |
89611-0R010 |
— | ||
| replacement | |||||
|
89611
|
89611
89611-0R012
Switch, Push Start
[01.2015 - 07.2015] GRS218 |
89611-0R012 |
— | ||
|
89611
|
89611
89611-0R011
Switch, Push Start
[08.2015 - 03.2016] ARS212,GRS218 |
89611-0R011 |
— | ||
| replacement | |||||
|
89611
|
89611
89611-0R012
Switch, Push Start
[08.2015 - 03.2016] ARS212,GRS218 |
89611-0R012 |
— | ||
|
89611
|
89611
89611-0R012
Switch, Push Start
[04.2016 -] ARS212,GRS218 |
89611-0R012 |
— | ||
|
90119C0107
|
90119C0107
90119-C0107
New Genuine Part
|
90119-C0107 |
— | ||
|
90153C0001
|
90153C0001
90153-C0001
New Genuine Part
|
90153-C0001 |
— | ||
|
9009900297
|
9009900297
90099-00297
New Genuine Part
|
90099-00297 |
— | ||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.74 |
||
