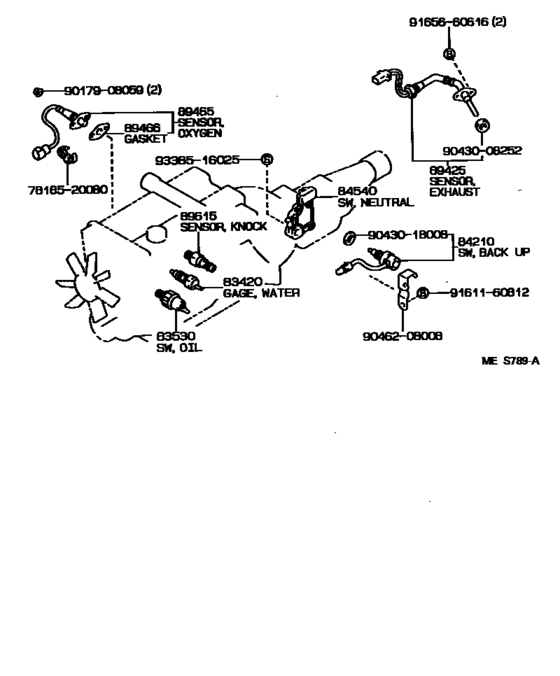

Switch & Relay & Computer ([10.1991 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ (9110- )HTWC) Diagram Toyota CROWN/ MAJESTA
- Year
- 1991 - 1995
- Sales region
- Japan
- Frame
- GS130
- grade
- DLX
- body
- SED
- ENGINE
- 1GFE
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 10.1991
- To
- 12.1995
- Gear Shift Type
- 5F
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[11.1992 - 08.1993] GS13#,JZS13#,LS13#..DSL,HTWC,TDEC,TWC ＤＥＮＳＯ |
83420-16040 |
from US $30.71 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[10.1991 - 12.1991] GS13#,JZS13#,LS13# |
83420-20020 |
from US $30.62 |
||
|
83420
|
83420
83420-20030
Gage Assy, Water Temperature Sender
[11.1992 - 08.1993] GS13#,JZS13#,LS13#..DSL,HTWC,TDEC,TWC ＹＡＺＡＫＩ |
83420-20030 |
— | ||
| replacement | |||||
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[11.1992 - 08.1993] GS13#,JZS13#,LS13#..DSL,HTWC,TDEC,TWC ＹＡＺＡＫＩ |
83420-16040 |
from US $30.71 |
||
|
83530
|
83530
83530-30051
Switch Assy, Oil Pressure (For Engine)
[10.1991 - 11.1992] GS13# |
83530-30051 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60050 Switch Assy, Oil Pressure (For Engine)[10.1991 - 11.1992] GS13# |
83530-60050 |
from US $30.54 |
||
|
83530
|
83530
83530-30090
Switch Assy, Oil Pressure (For Engine)
[11.1992 - 08.1993] GS13#,JZS13# ＤＥＮＳＯ |
83530-30090 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [11.1992 - 08.1993] GS13#,JZS13# ＤＥＮＳＯ |
83530-60020 |
from US $25.21 |
||
|
84210
|
84210
84210-30060 Switch Assy, Back-Up Lamp[10.1991 -] GS130,136,LS136,YS130..MTM |
84210-30060 |
from US $38.08 |
||
|
89425
|
89425
89425-39405 Sensor, Exhaust Gas Temperature[10.1991 - 08.1993] GS13#,JZS13# |
89425-39405 |
US $298.48 |
||
|
89425
|
89425
89425-39445 Sensor, Exhaust Gas Temperature[08.1993 - 09.1997] GS13#,JZS13# |
89425-39445 |
US $298.48 |
||
|
89465
|
89465
89465-39575
Sensor, Oxygen
[10.1991 - 12.1995] GS13#..HTWC |
89465-39575 |
— | ||
|
89466
|
89466
89466-30030 Gasket, Oxygen Sensor[10.1991 - 12.1995] GS13#..HTWC |
89466-30030 |
US $13.10 |
||
|
89615
|
89615
89615-20030 Sensor, Knock Control[10.1991 - 12.1994] GS13#..HTWC |
89615-20030 |
US $225.68 |
||
| replacement | |||||
|
89615
|
89615
89615-32030 Sensor, Knock Control[10.1991 - 12.1994] GS13#..HTWC |
89615-32030 |
from US $198.14 |
||
|
7818520080
|
7818520080
78185-20080 Clamp, Accelerator Control Cable, No.2 |
78185-20080 |
US $2.27 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.84 |
||
|
9043008252
|
9043008252
90430-08252 Gasket(For Catalytic Converter Sensor Guide) |
90430-08252 |
US $3.84 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $1.15 |
||
|
9046208008
|
9046208008
90462-08008 New Genuine Part |
90462-08008 |
US $4.37 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9165660616
|
9165660616
91656-60616
BOLT
|
91656-60616 |
— | ||
| replacement | |||||
|
9165660616
|
9165660616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
9338516025
|
9338516025
93385-16025 New Genuine Part |
93385-16025 |
US $0.70 |
||
